Description

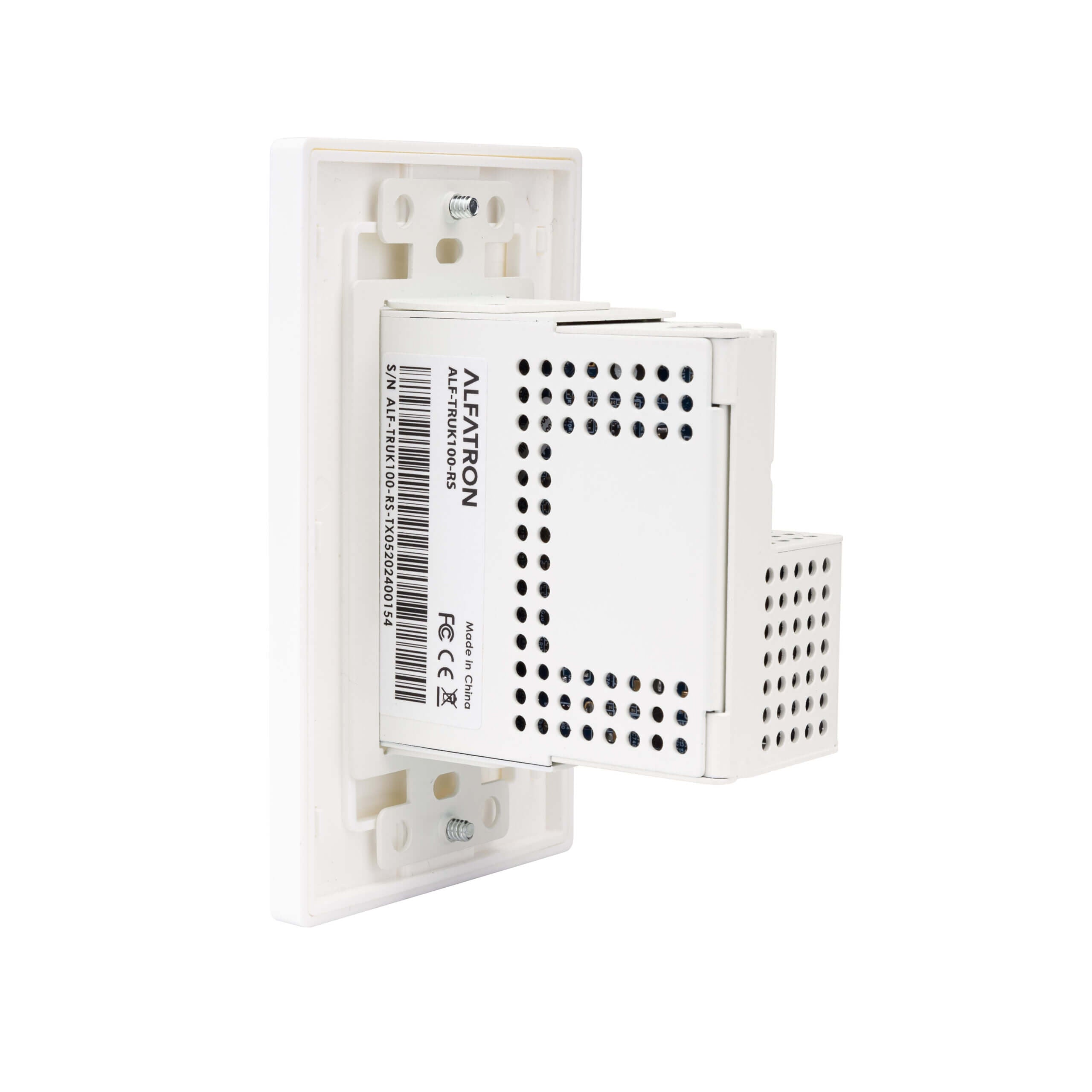

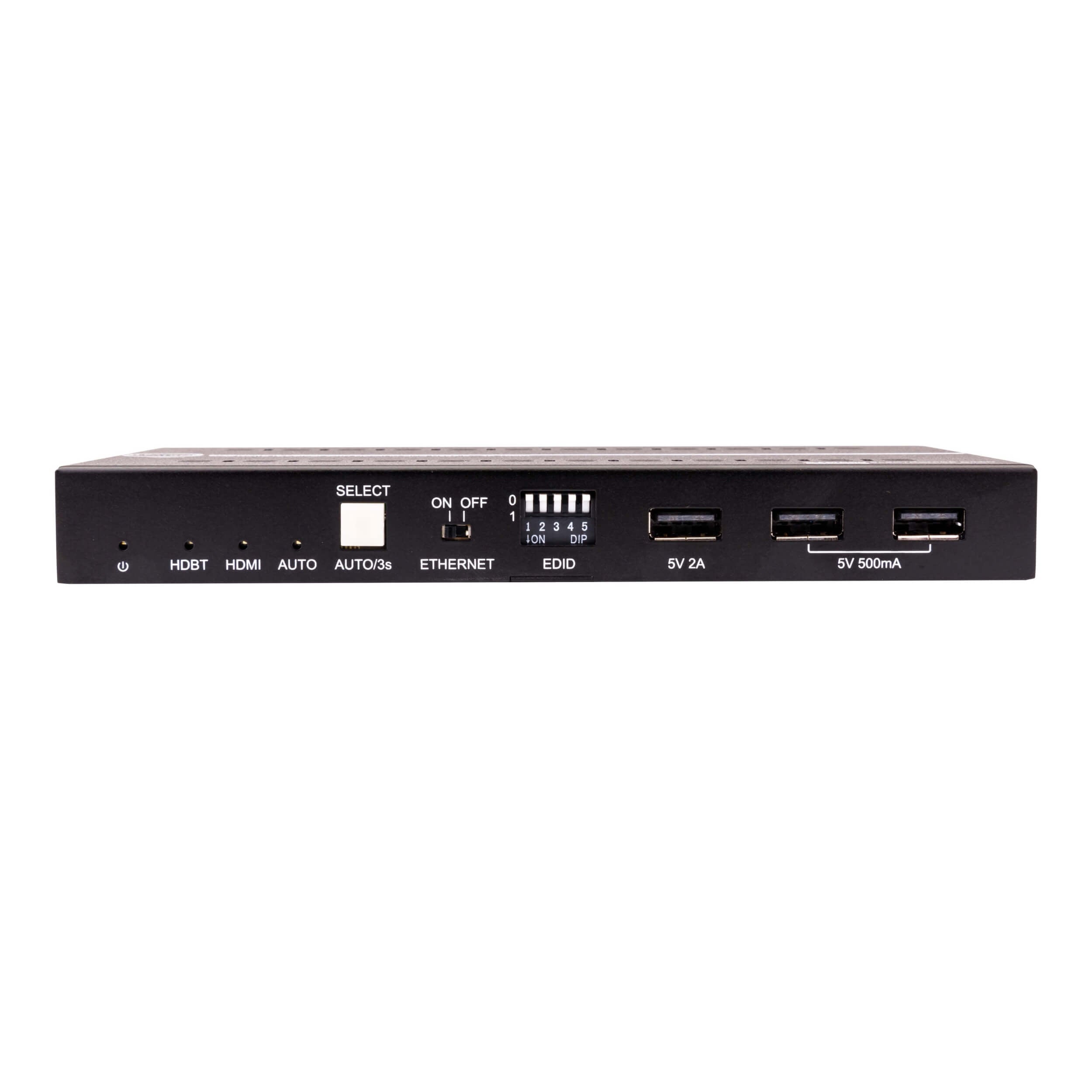

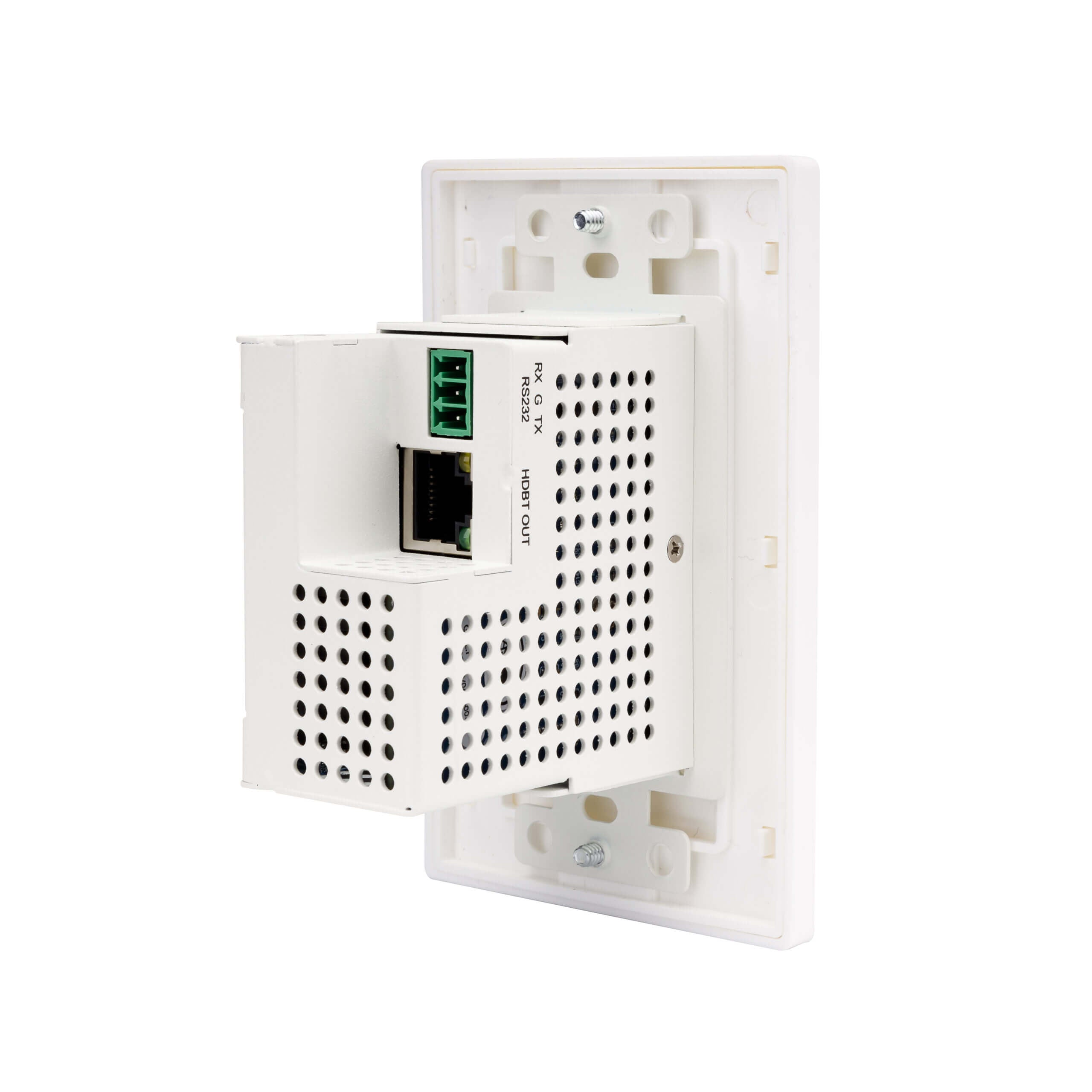

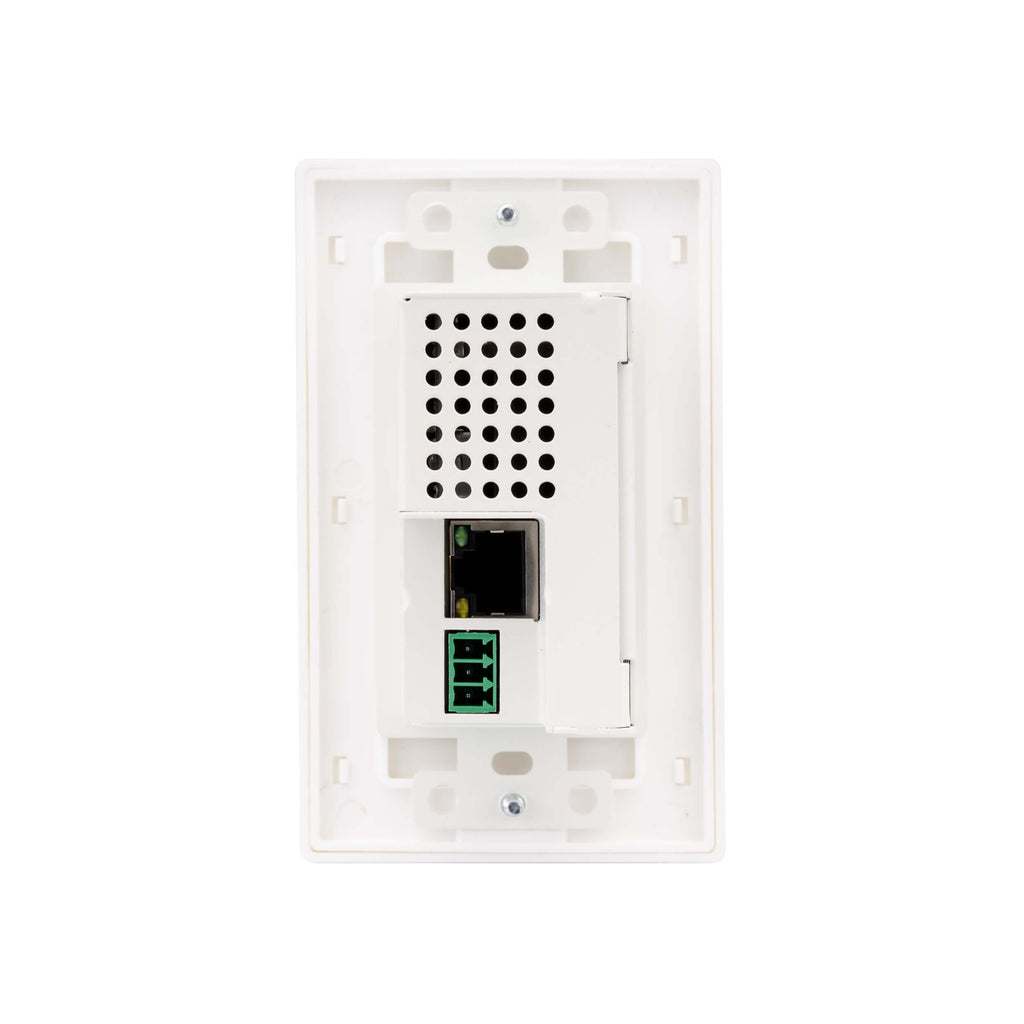

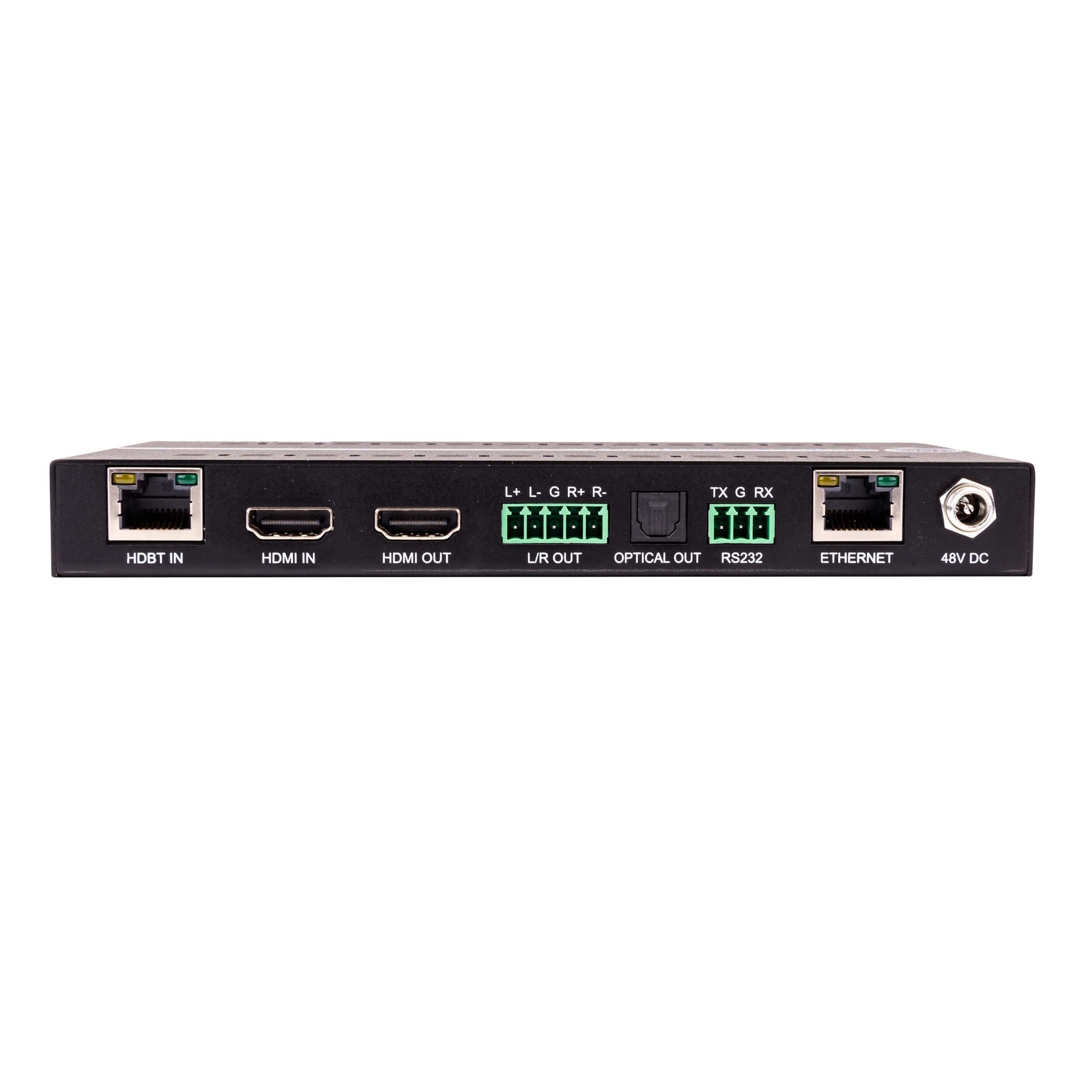

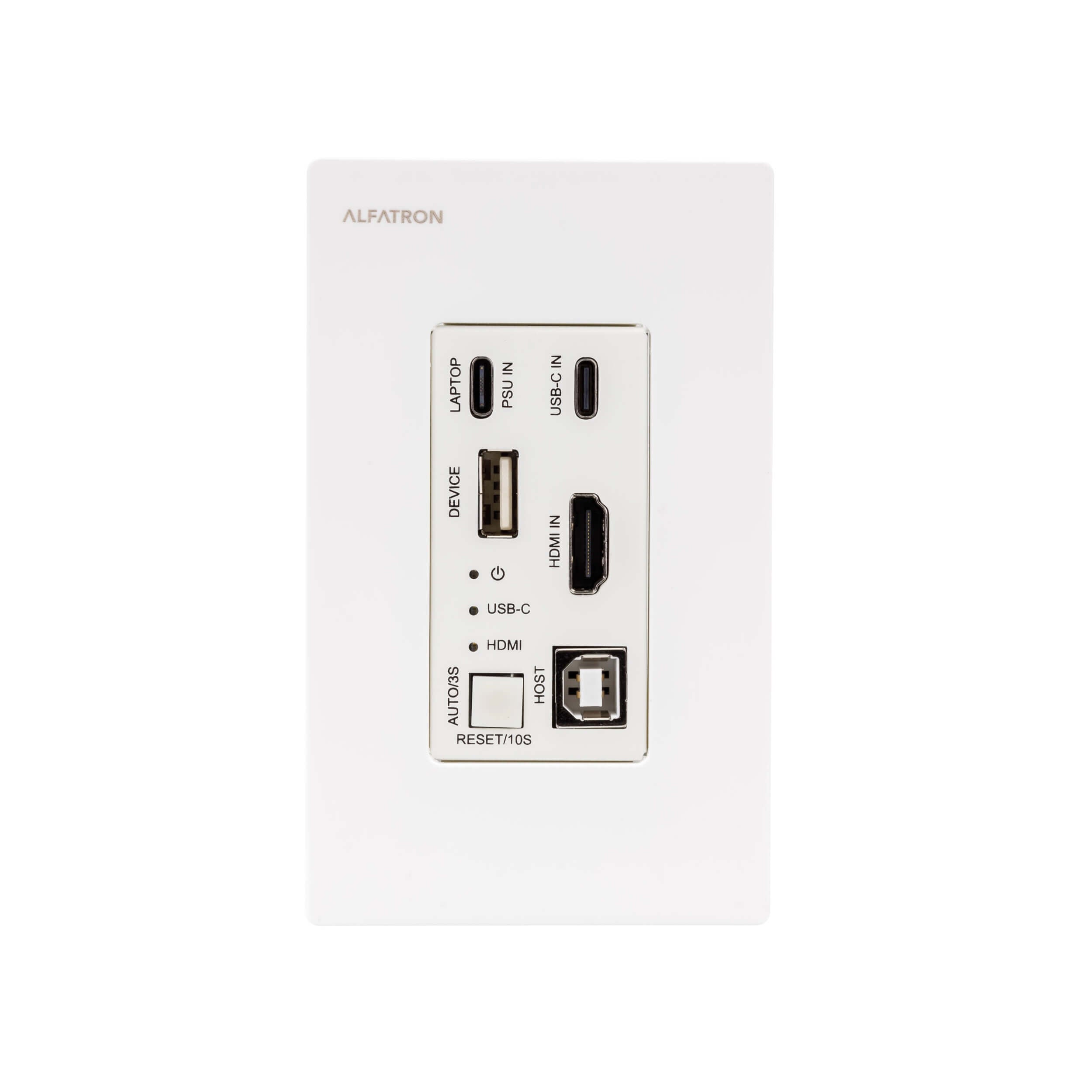

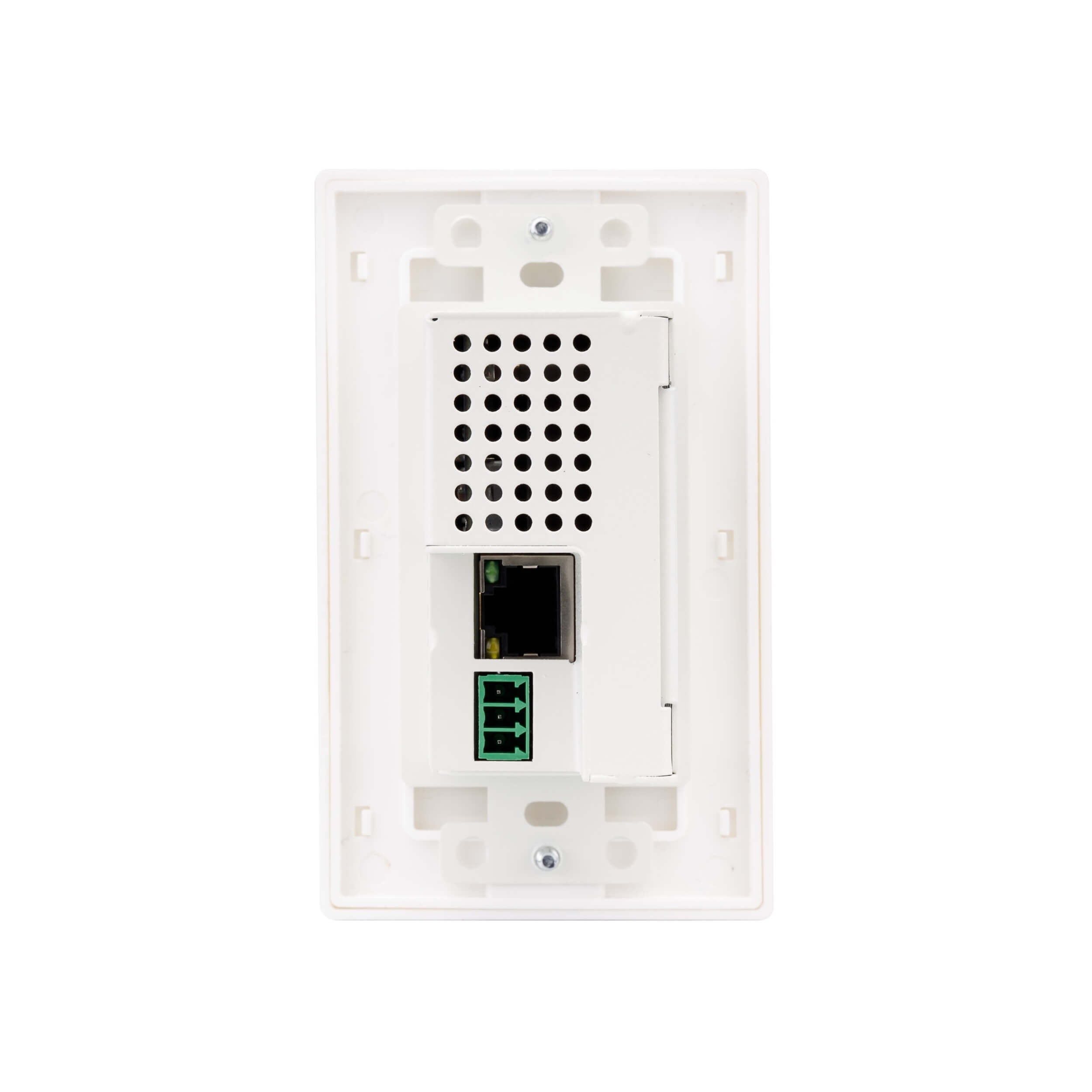

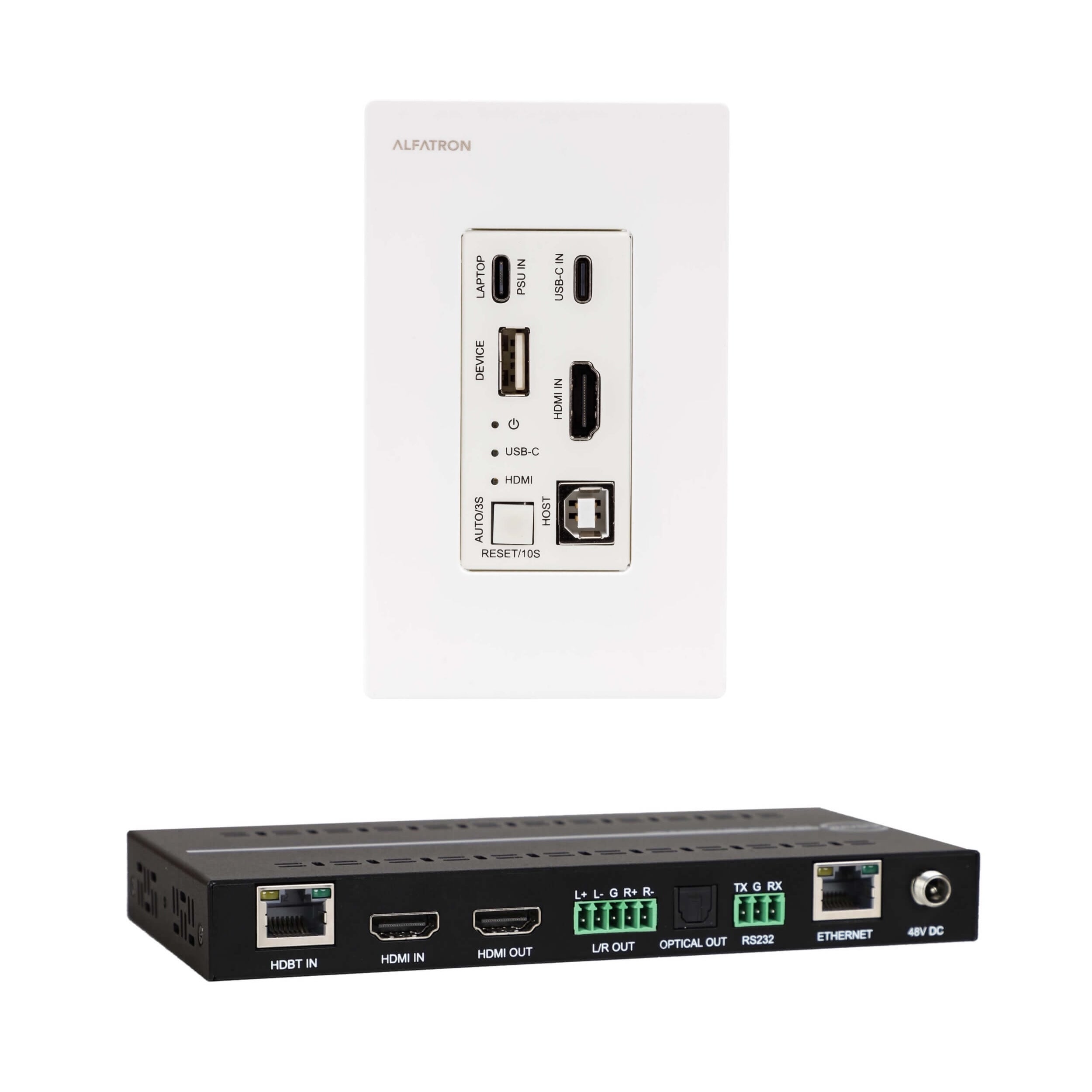

The Alfatron TRUK100-RS is an HDBaseT wall plate extender kit that supports video (up to 4K@60Hz 4:4:4), audio, USB 2.0, RS232 control signals, and Ethernet transmission over distances up to 100 meters. It features USB 2.0 and USB-C host interfaces, as well as a USB 2.0 port for peripheral devices such as speakerphones, video cameras, microphones, or keyboards and mice, with charging capability. The transmitter is designed in a US one-gang wall plate form factor and includes one white faceplate.
Features
• Extend USB-C, 0 & USB2.0 signal over HDBT2.0
• HDMI, 18G, 4K@60 4:4:4, HDCP 2.2 and backward compatible
• Transmission distance at 4K@60 4:4:4 Max up to 100m (Cat6 cable)
• Bandwidth rate max up to 480M/bps
• USB-C supports 4K@60 4:2:0
• USB-C charging port, Max supports 100 W PD, to charge the connected PC
• HDMI In on Rx for BYOD devices and with Auto-SW control
• De-embedded audio (analog and optical) at Rx
• RS232 pass through from Tx to Rx
• Supports Auto SW and manual mode via button
• Support 48v PoC function (only from Rx to Tx)
• EDID & HDCP management on Dip switch
• Support 3D, HDR10 and Dolby Vision
• Ethernet port for USB-C or USB-B and supports Ethernet ON/OFF control
• US one-gang enclosure for Decora-style at transmitter
• Standard ALFATRON RS232 code format
• 7 year warranty
