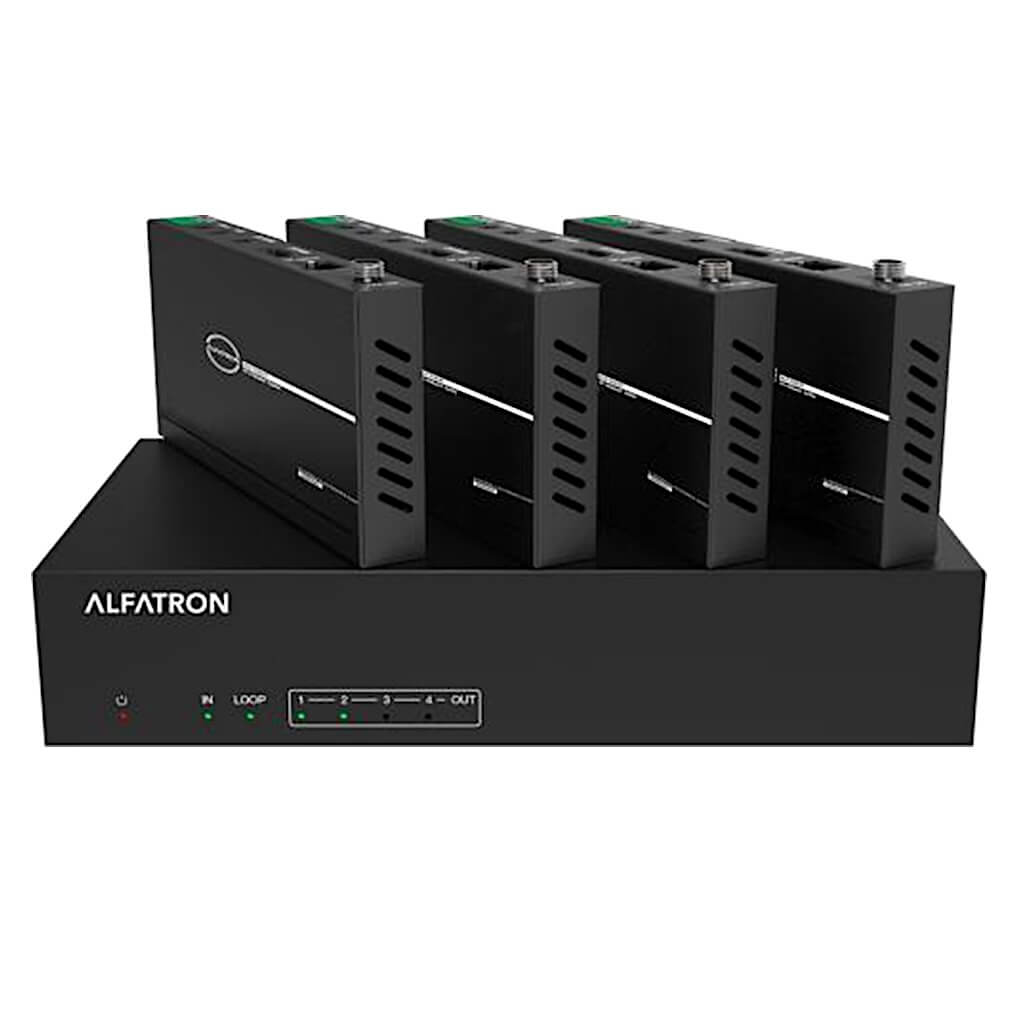

The Alfatron SUK4T is a 1x4 HDMI Distribution Amplifier and HDBaseT Extender Set, featuring one HDMI input, four HDBaseT outputs, and a local HDMI output. The local HDMI output can be used to monitor connected devices or cascade with an additional splitter. The ALF-SUK4T transmits uncompressed 4K HDMI, IR, and RS232 signals over a single Cat6/7 cable, supporting 4K transmission up to 328 feet and 1080p up to 492 feet. For extended setups, the local HDMI output enables cascading the signal up to four times using additional SUK4T units. The device also supports bi-directional IR control, RS232 control, EDID management, and Power over Cable (PoC).
Features
• Supports HDMI 2.0 video resolutions up to 4K@60Hz 4:4:4
• Distributes one 4K HDMI signal to four HDBaseT outputs and one loop HDMI output
• Supports cascade connection, distributes video signal to multiple video displays
• Maximum transmission distance is up to 328 ft for 4K, and 492ft(150m) for 1080p
• 4K input can be automatically downscaled to 1080 output
• Supports audio de-embedding
• Each HDBaseT output supports IR pass-through
• Supports RS232 and IR cascade control
• Supports 24V PoC – the HDBaseT receiver can be powered via the HDBaseT splitter
• Includes HDBaseT receivers
• 7 year warranty
