Description

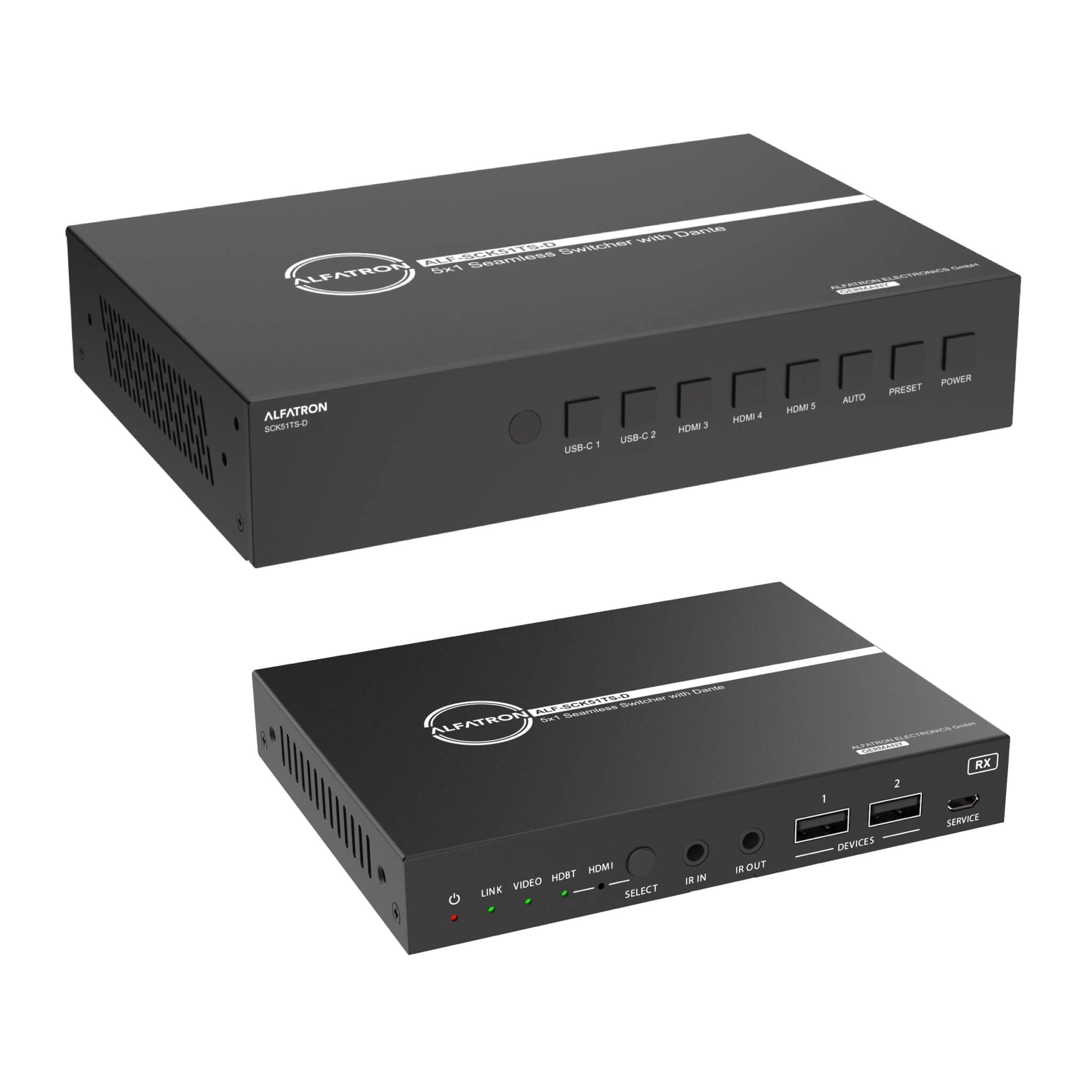

The Alfatron SCK51TS-D is a 5x1 seamless presentation switcher featuring an HDBaseT 3.0 receiver that supports video resolutions up to 4K@60Hz with 4:4:4 8-bit deep color and is HDCP 2.2 compliant. It offers a multiview function, allowing multiple sources to be displayed on a single screen. The switcher supports both HDMI and HDBaseT mirrored outputs, with uncompressed 4K video extension over HDBaseT up to 132 feet (40 meters) or 1080p video up to 230 feet (70 meters) via a single Cat6 cable.
The switcher includes five video inputs: two USB-C and three HDMI ports. Each USB-C input supports ALT-DP mode with up to 4K@60Hz 4:4:4 8-bit deep color, USB 2.0 data transfer, and 60W power delivery to the USB-C source device. It also supports Ethernet over USB-C, enabling seamless internet access for connected devices. Local USB KVM switching and USB 2.0 extension over HDBaseT allow connection of external USB devices or cameras for video conferencing. Additionally, the switcher features built-in Dante audio input and output interfaces, enabling seamless integration with any existing Dante-enabled audio processing system.
Features
• 5x1 seamless switcher and multi-viewer with HDBaseT receiver
• HDMI 2.0b, HDCP 2.2, 18Gbps 4K@60Hz 4:4:4

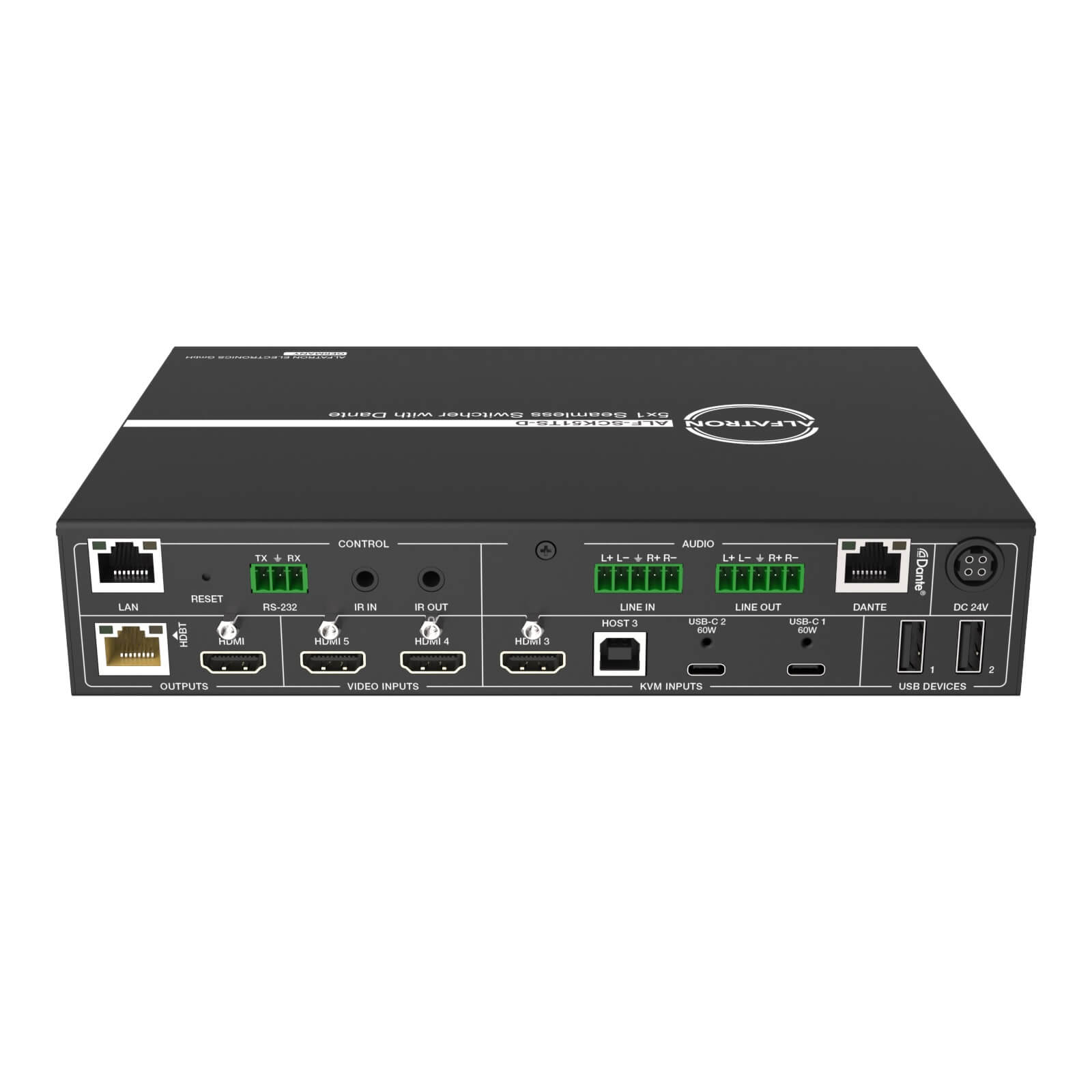

• Switcher Input: 2x USB-C, 3 x HDMI, 1x Analog audio, 1x Dante 2ch, USB Host
• Switcher Output: 1 x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch

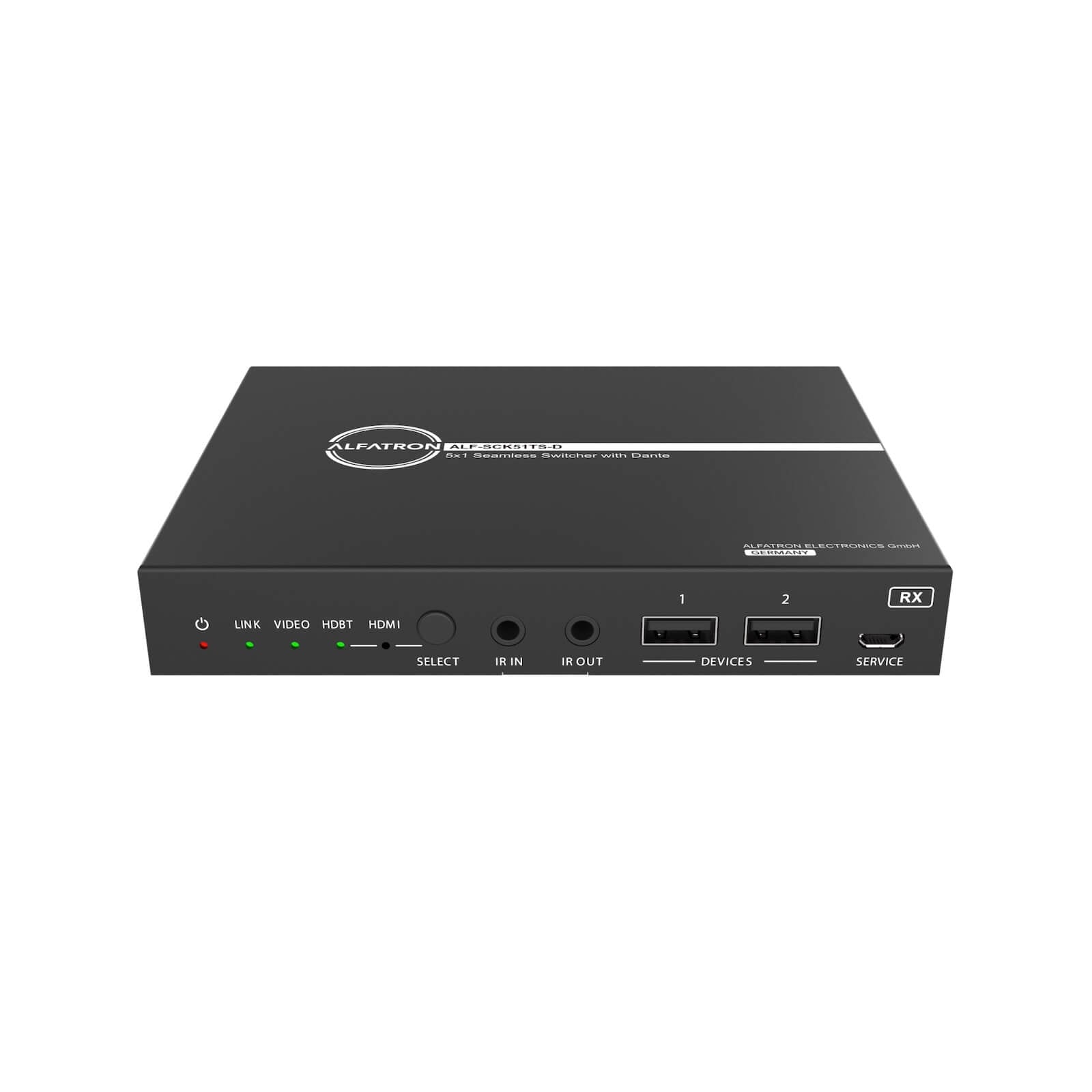

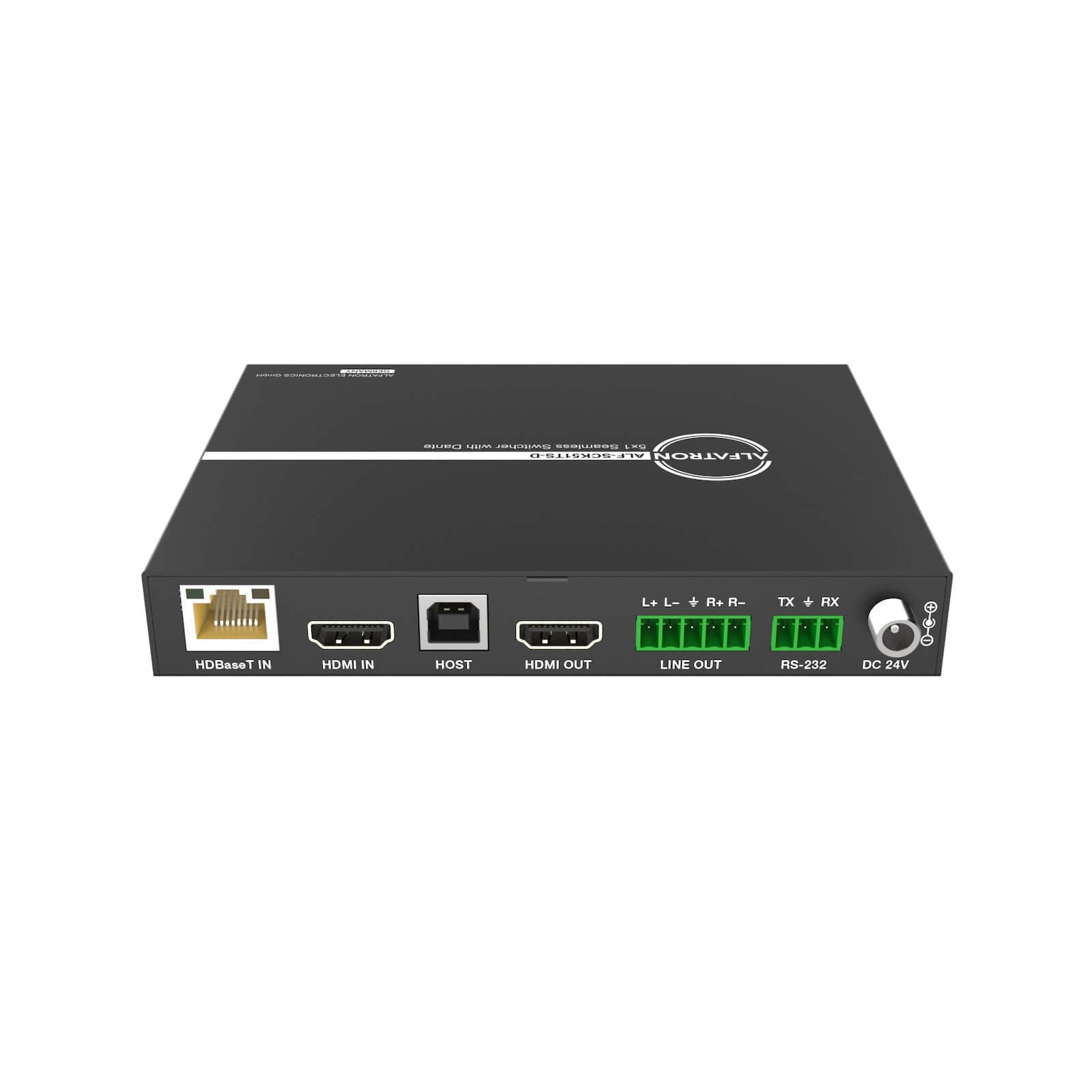

• Receiver Input: 1x HDMI, 1x HDBaseT, 1x USB Host
• Receiver Output: 1x HDMI, 1x Analog audio, RS232
• Auto or manual switching mode
• HDMI and HDBaseT mirrored outputs
• USB-C supports ALT DP mode for A/V, USB 2 .0, 100M ethernet and 60W charging
• Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
• USB Host Ports on the TX and RX
• Uncompressed 4K over HDBT 3.0 up to 132ft/40m via single Cat6a cable
• Uncompressed 1080p over HDBT 3.0 up to 230ft/70m via single Cat6a cable
• PoE over HDBT to power RX from TX
• Audio embedded and de-embedded
• Audio DSP for gain, equalizer, volume and delay
• Dante 2×2 audio input and output
• CEC/RS 232 control external device ON/OFF
• EDID management

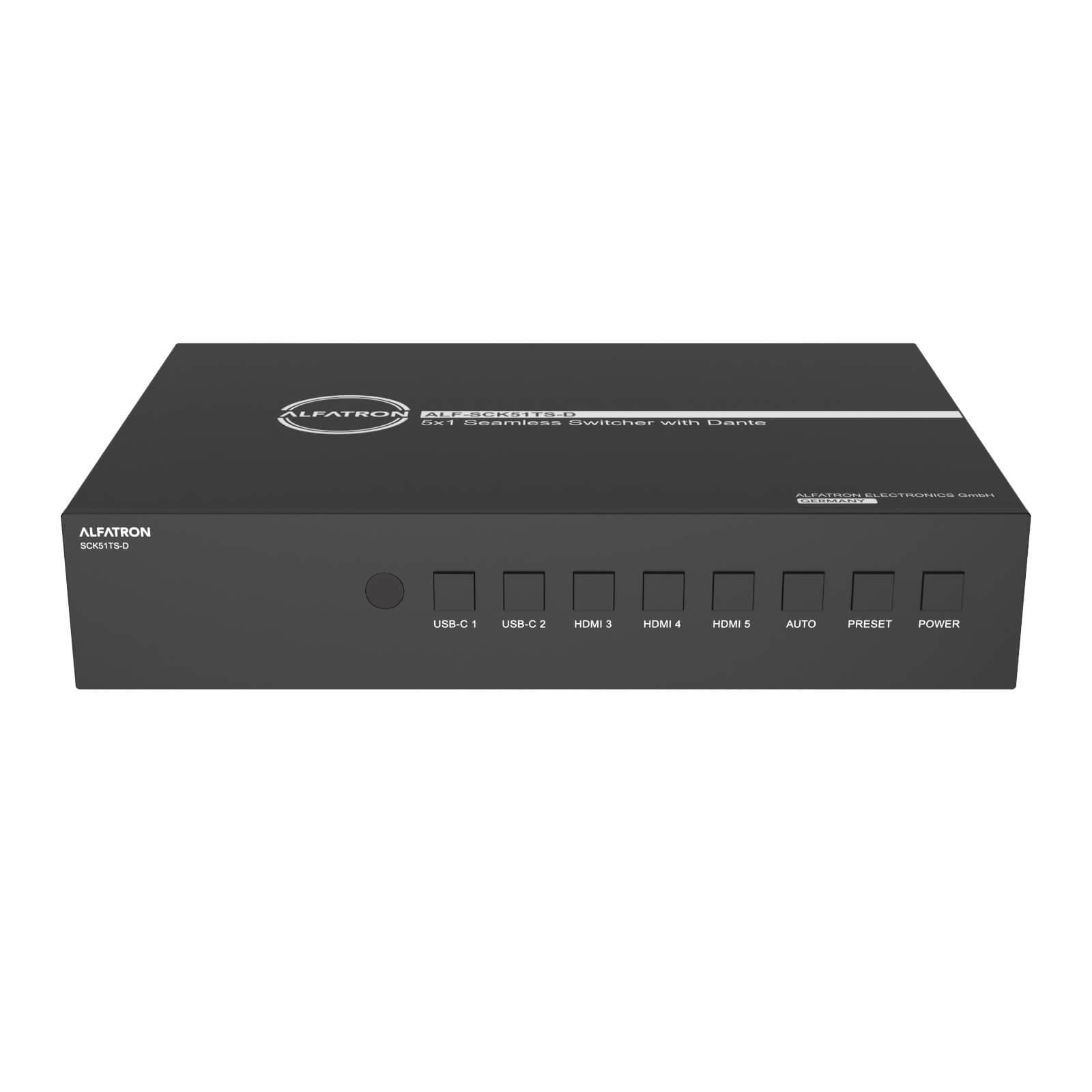

• Front panel button, remote control, RS 232, TCP/IP and Web GUI control
