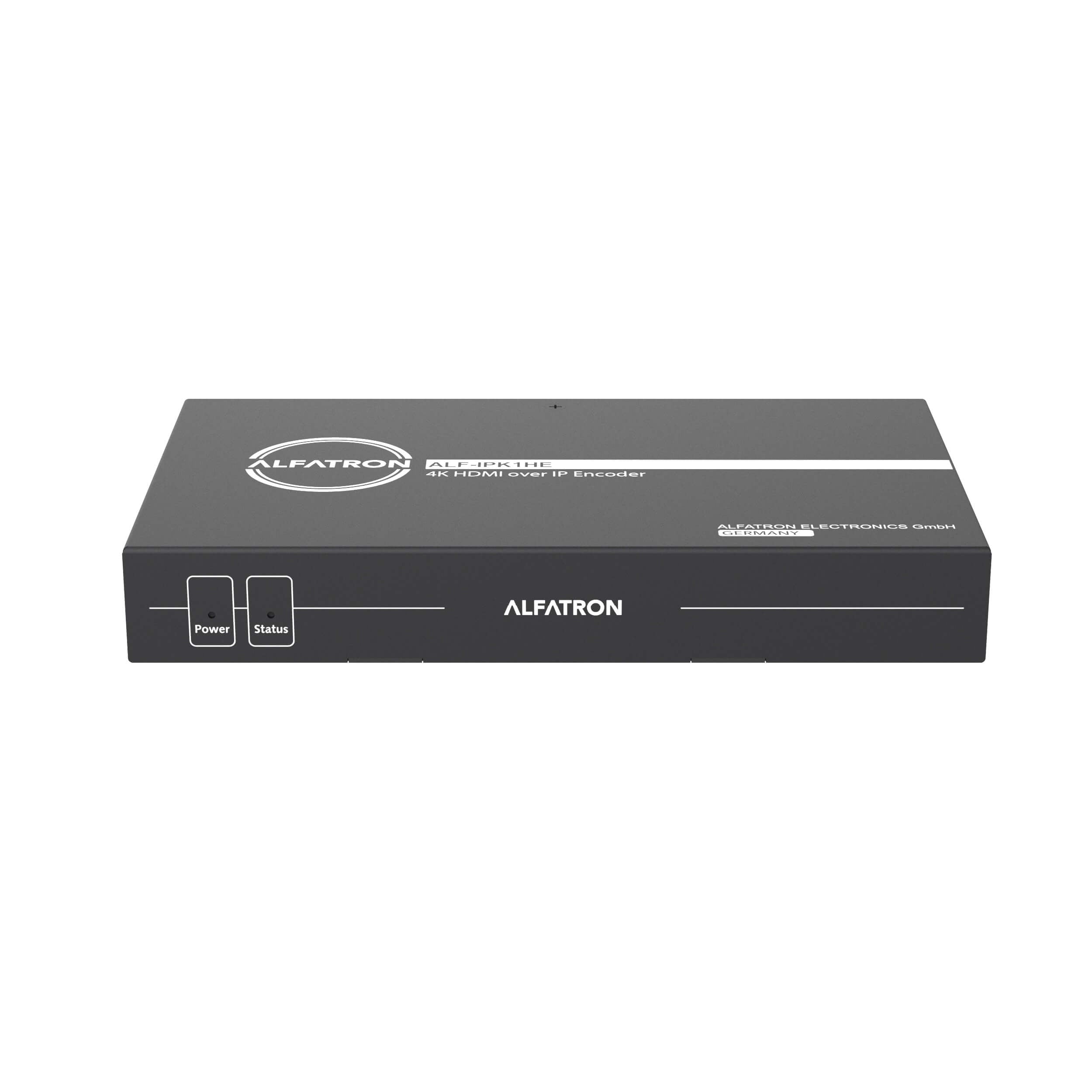

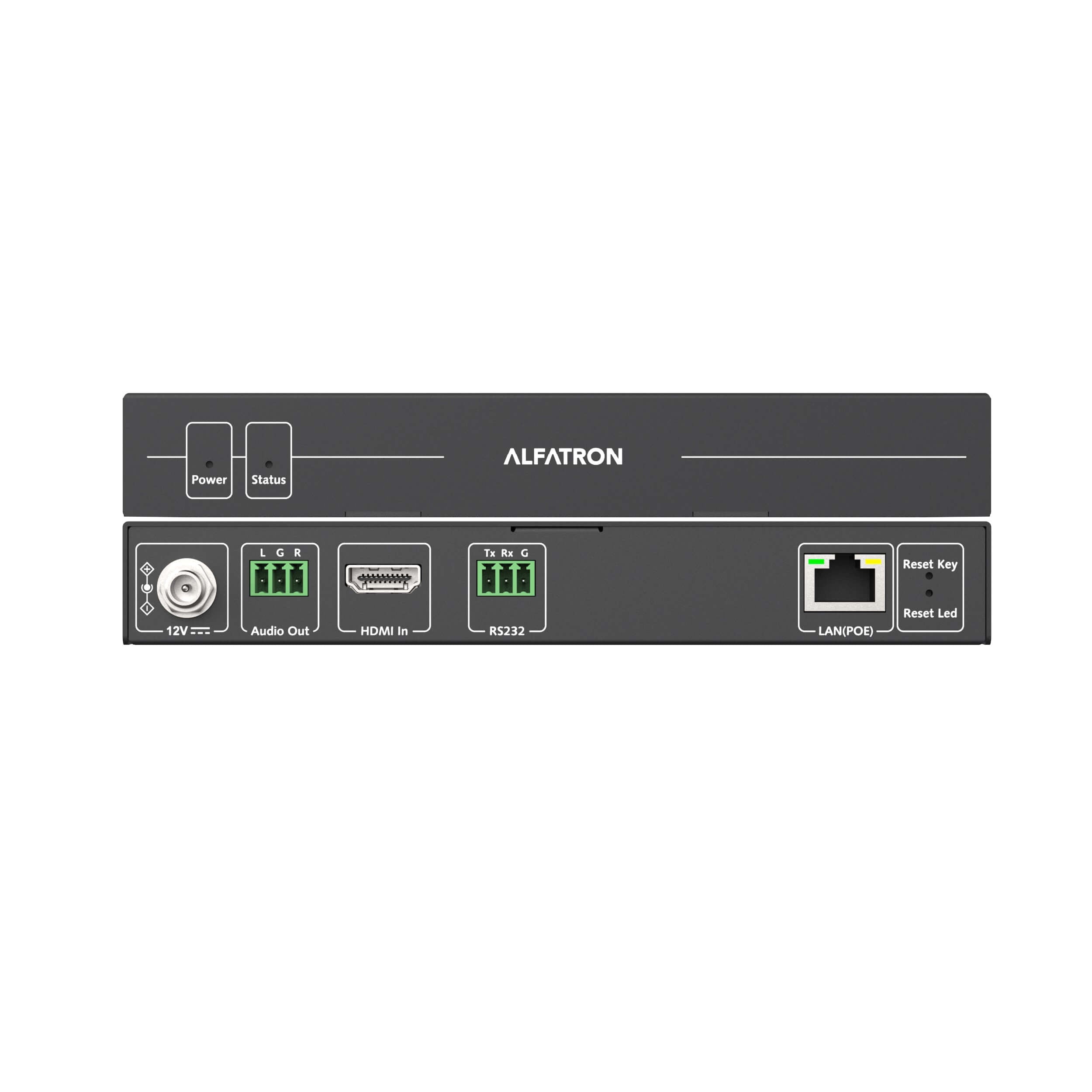

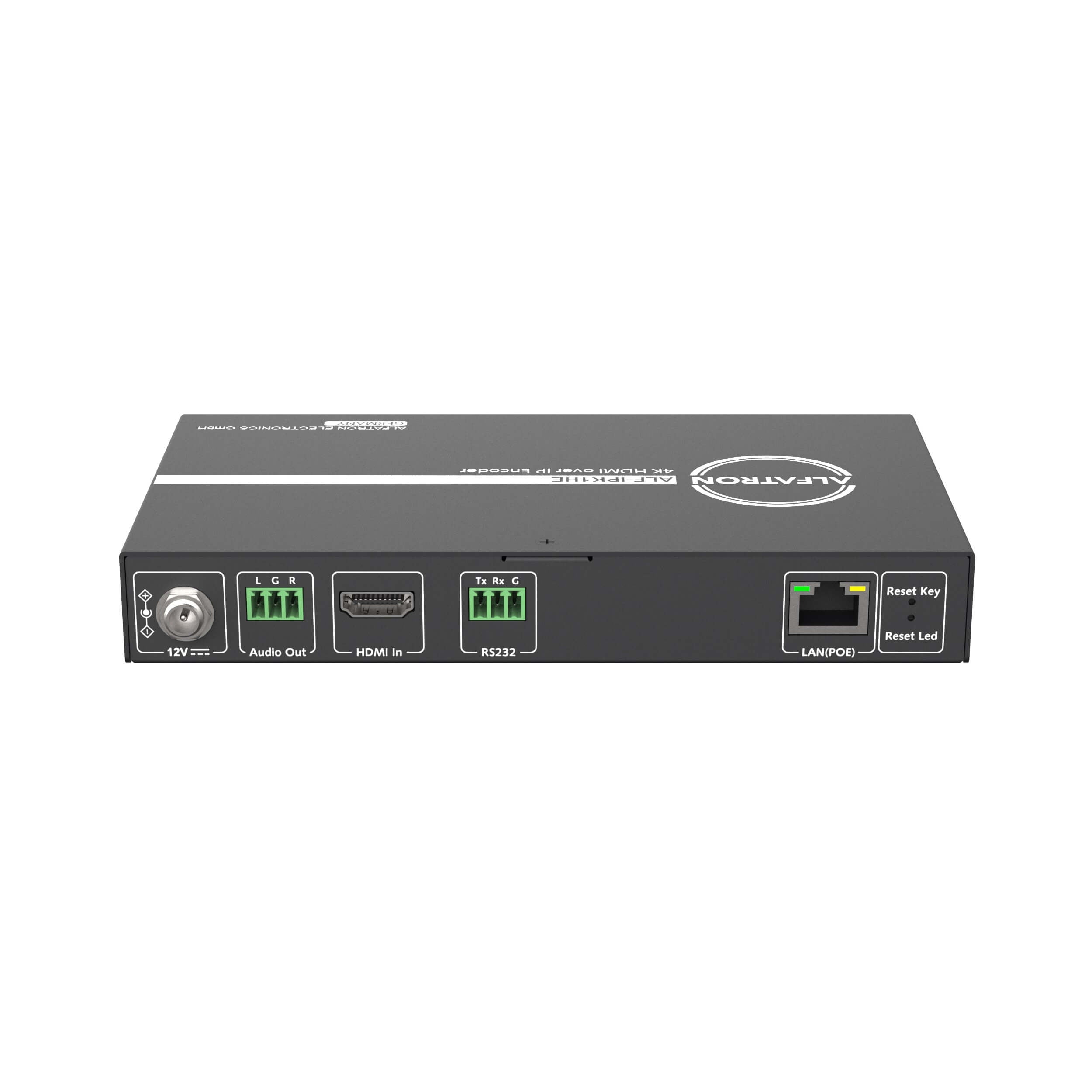

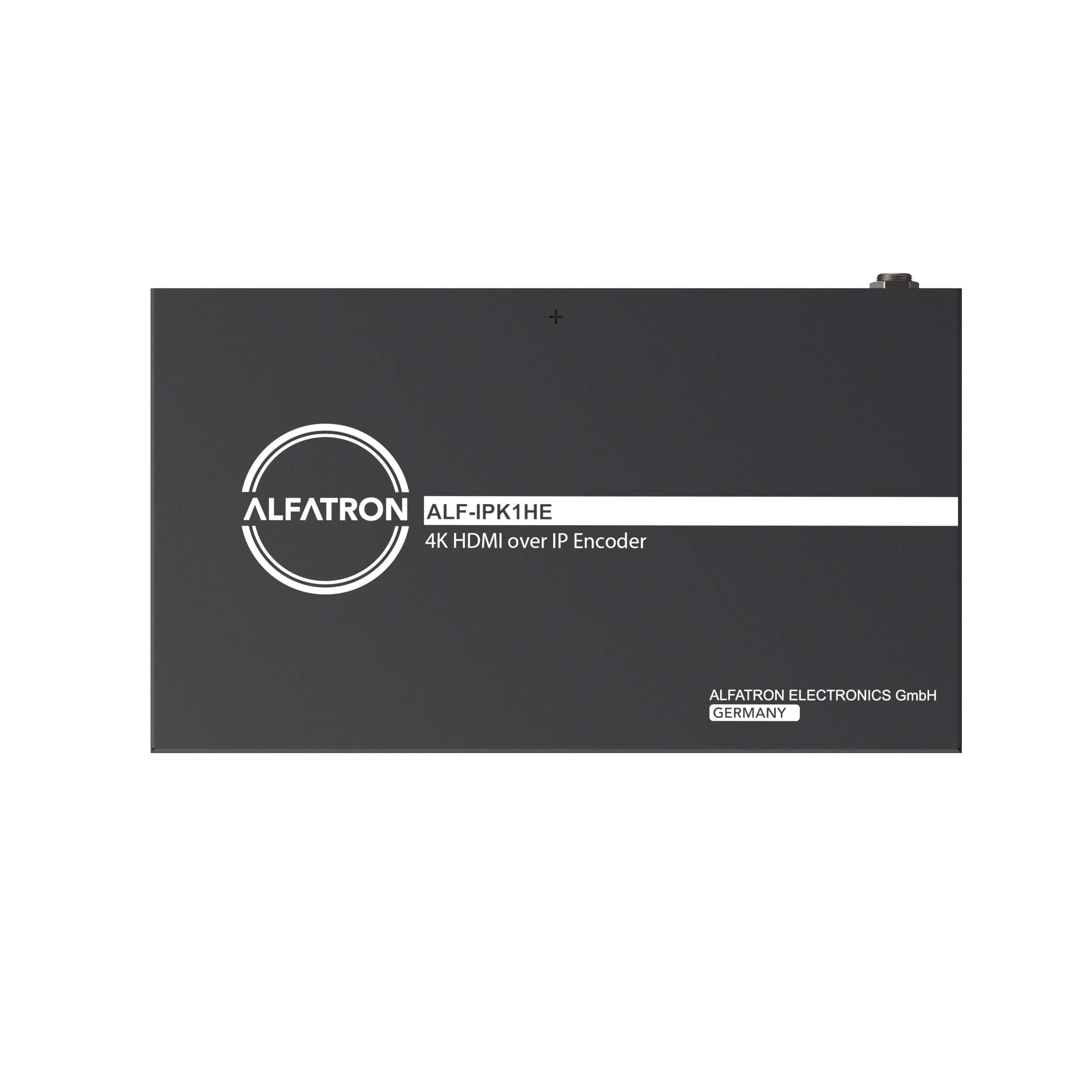

The Alfatron IPK1HE is a 4K networked AV over IP encoder utilizing the latest H.265 compression technology, supporting resolutions up to 4K@30Hz. It can be configured for IP video matrix or video wall setups via the VDirector mobile app (iOS). The encoder supports high-efficiency H.264/H.265 video codecs, along with MPEG4-AAC and LPCM stereo audio. Featuring a built-in scaler for smooth and seamless switching, it also supports RS-232 throughput to the decoder. Inputs include 1 HDMI and 1 RS-232 port, while outputs consist of 1 LAN port (PoE) and 1 line-out.
Must be used with Gigabit network switches. Cat6 Shielded cables are recommended.
Features
• Works easily with an Ethernet switch, no need to configure; plug and play
• Supports high-efficiency H.264/265 video codec, HDMI 1.4, HDCP 2.2
• Supports MPEG4-AAC and LPCM stereo audio
• Effortless preview management with drag-and-drop sources to the desired displays
• Easy to build an IP matrix or a video wall
• The decoder has a built-in scaler to achieve fast and seamless switching
• The RS232 route follows the switching of video source.
• 7 year warranty
