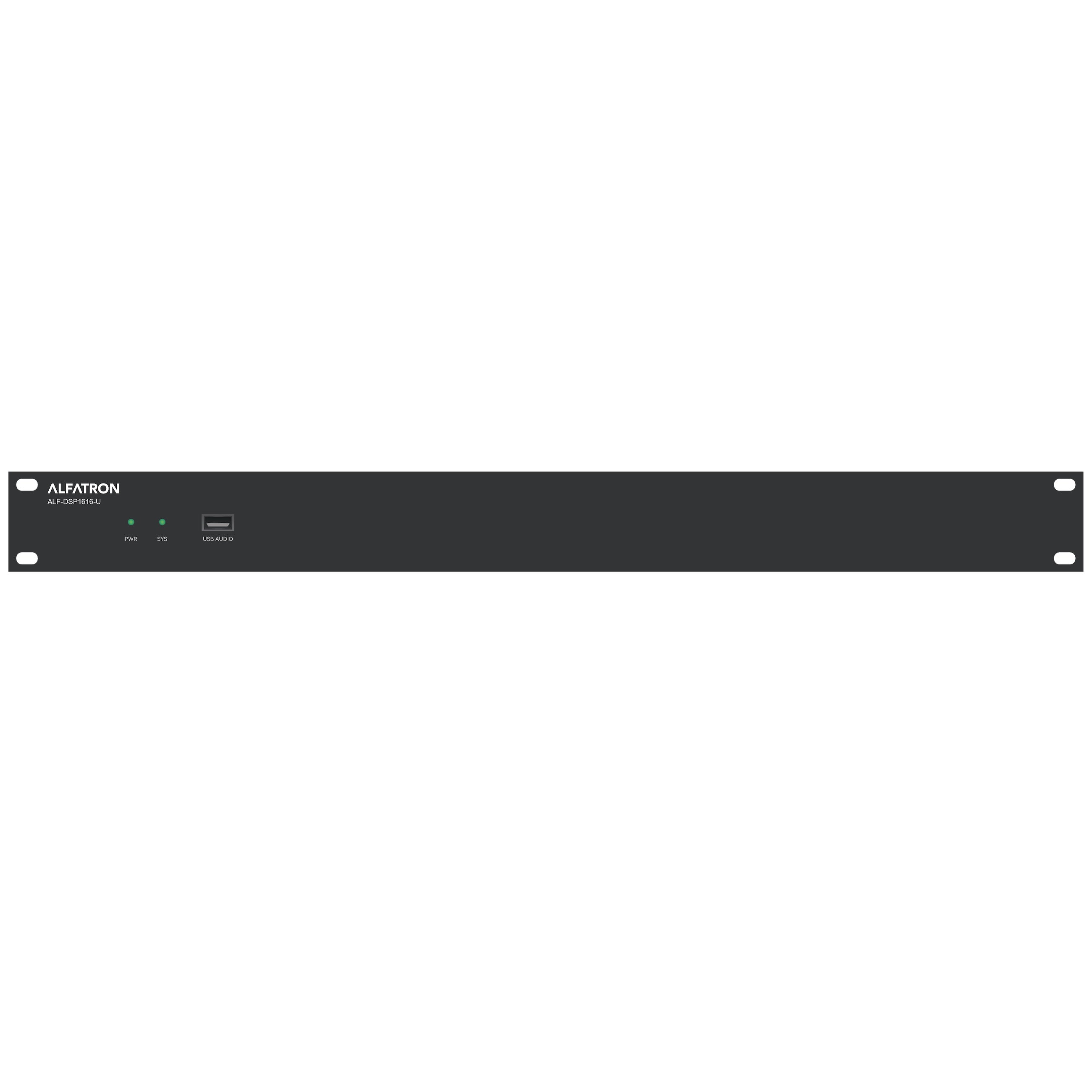

The Alfatron DSP1616-U is a 16x16 Audio Digital Signal Processor offering advanced audio processing capabilities. It includes 16 analog inputs and 16 analog outputs, along with USB audio support, 8 General Purpose Input/Output (GPIO) connections, and control options via RS-232, RS-485, and IP.
Features
• Includes one ADI SHARC 21489 Audio Processor

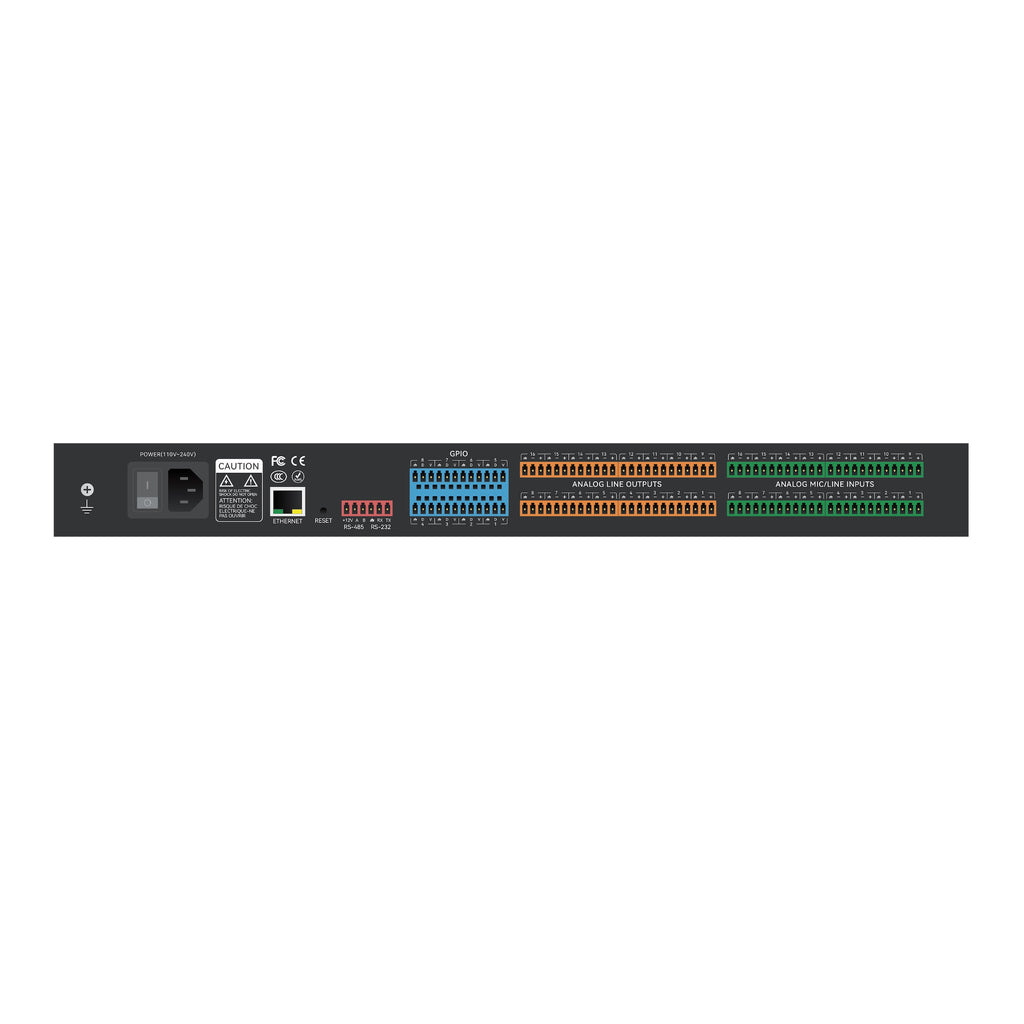

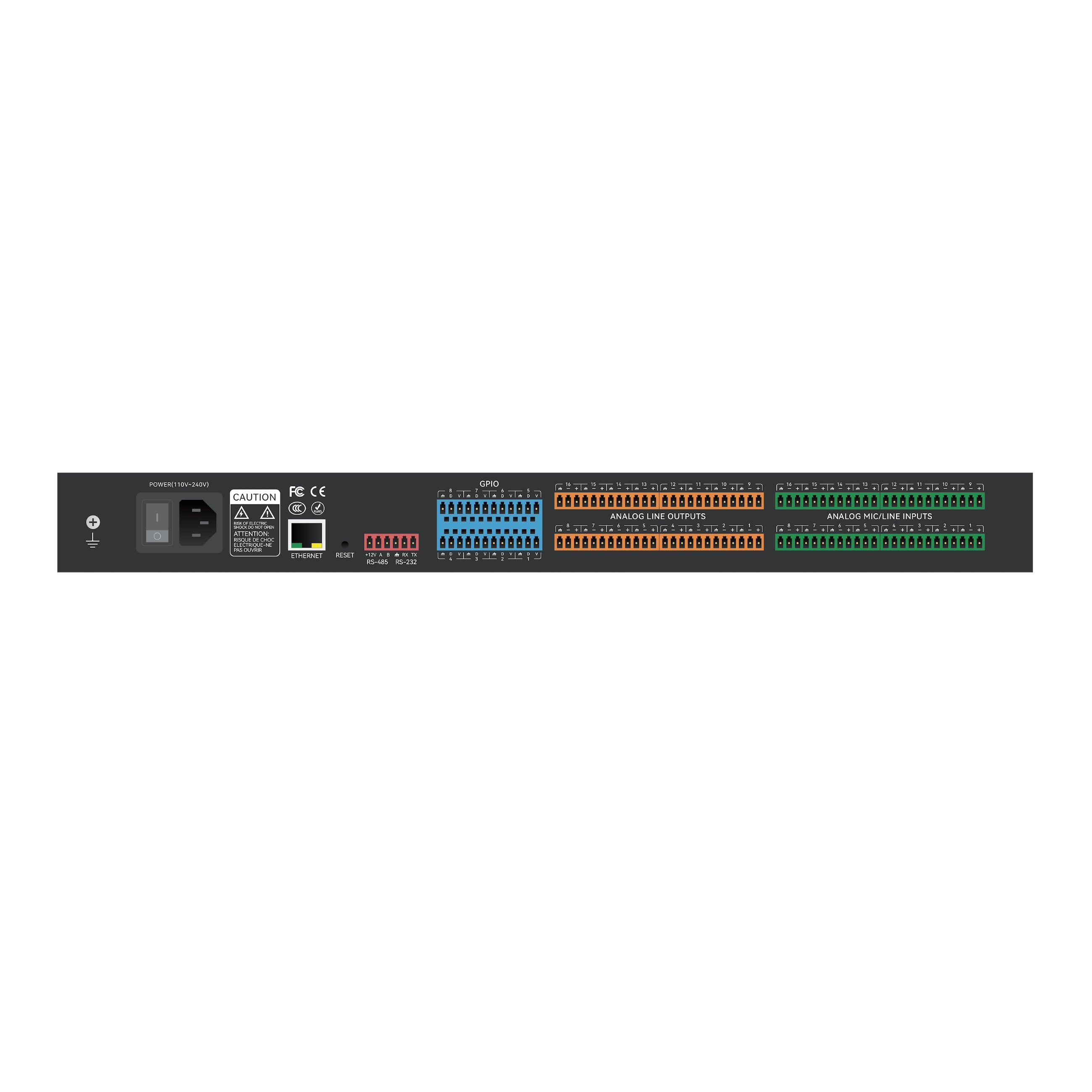

• 16 balanced mic/line inputs and 16 balanced line outputs on Phoenix connectors
• 24Bit, 48kHz A/D and D/A convertors
• 1 channel USB input and output
• Advanced Audio Processing incl. AEC, Auto-Mixing, Noise Suppression, Matrix
• Audio Processing Modules include:
- Expanders
- Compressors
- Acoustic Gain Compensation (AGC)
- Parametric EQ
- Feedback Suppression
- Ducker
- Gate
- Ambient Noise Compensation
- Graphic EQ
- Delay
• Software GUI Interface for easy setup and control of all DSP features
• RS-232, RS-485, and IP Control
• 8 GPIO connections
External volume controls and keypads are available separately.
