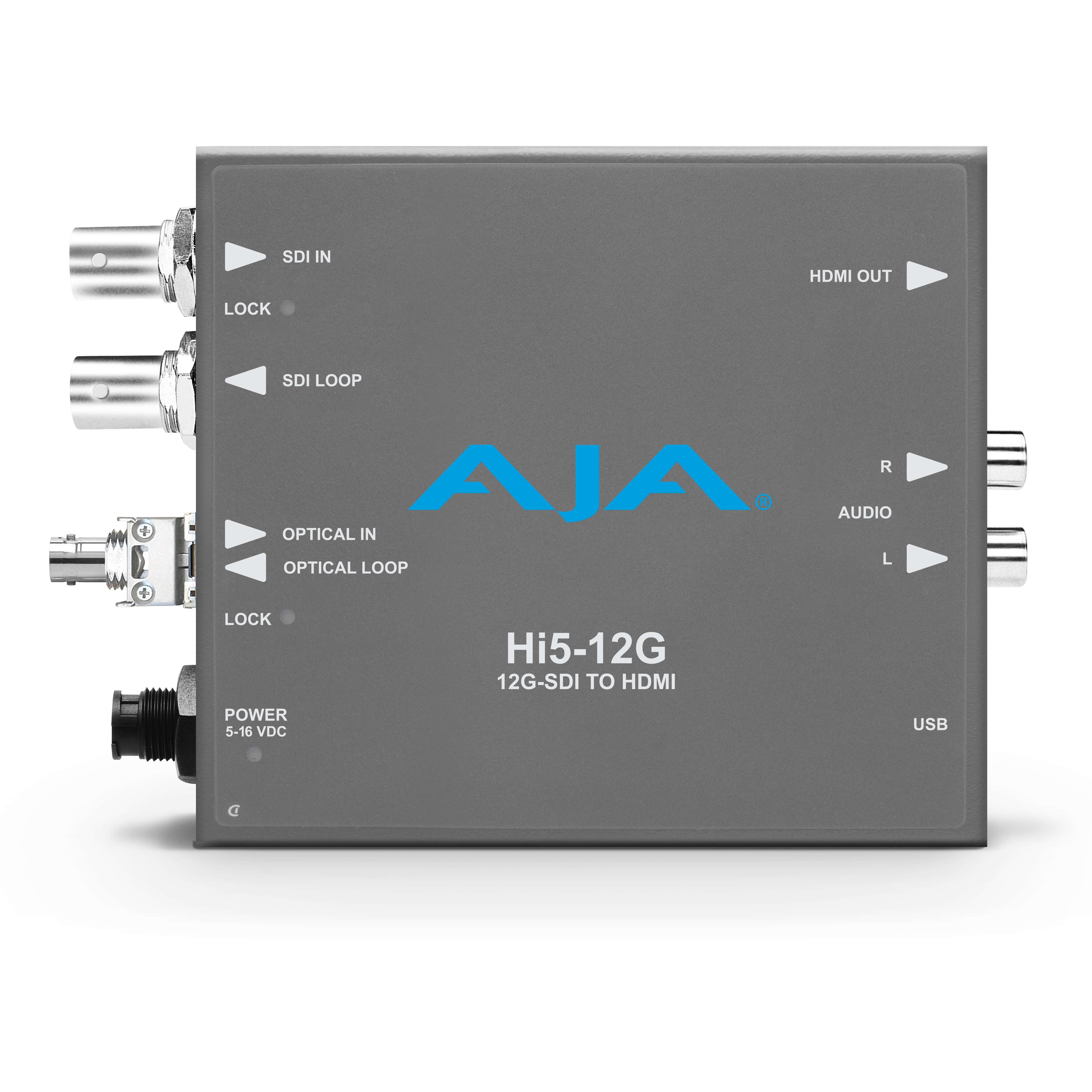

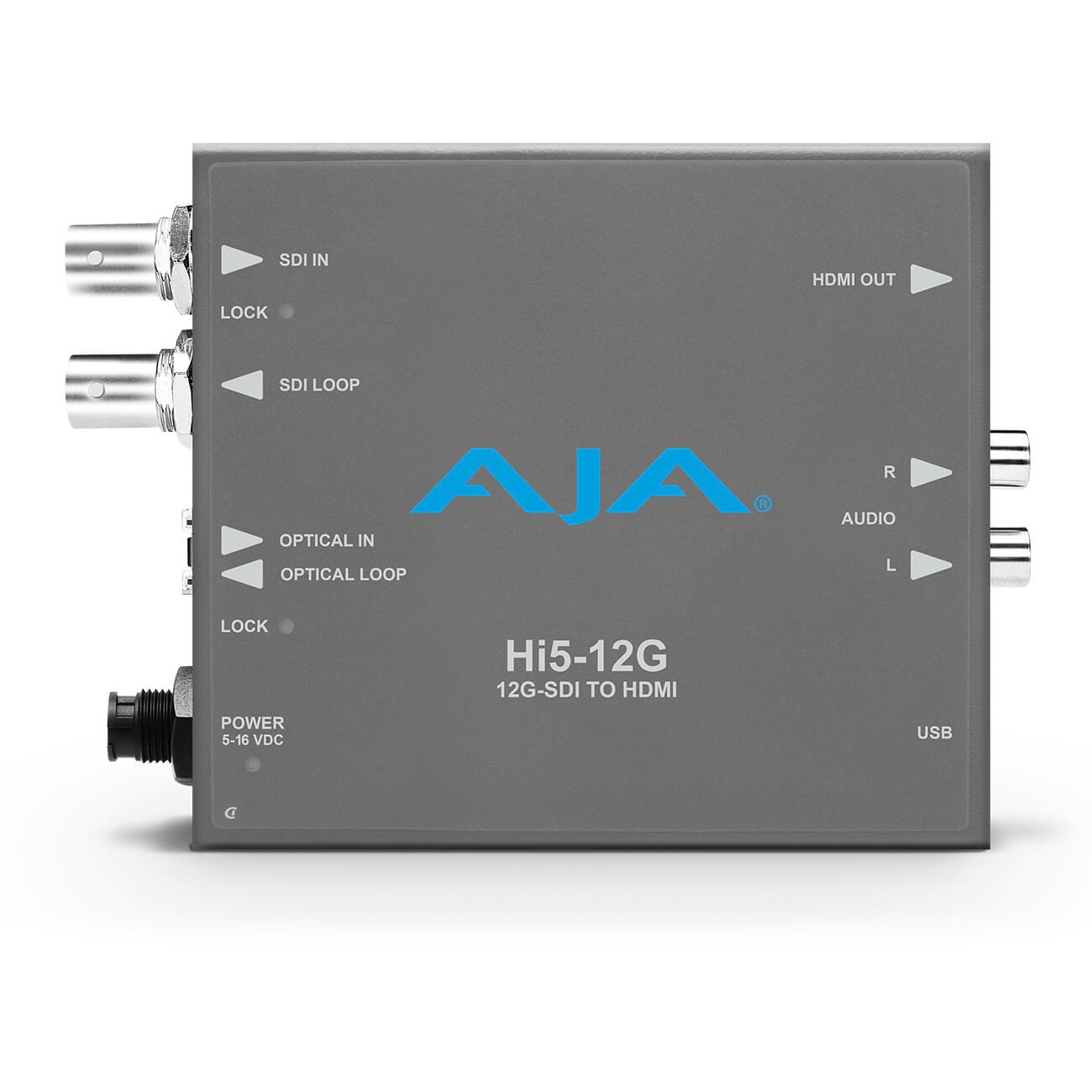

AJA Hi5-12G - 12G-SDI to HDMI 2.0 Mini-Converter

The AJA Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.

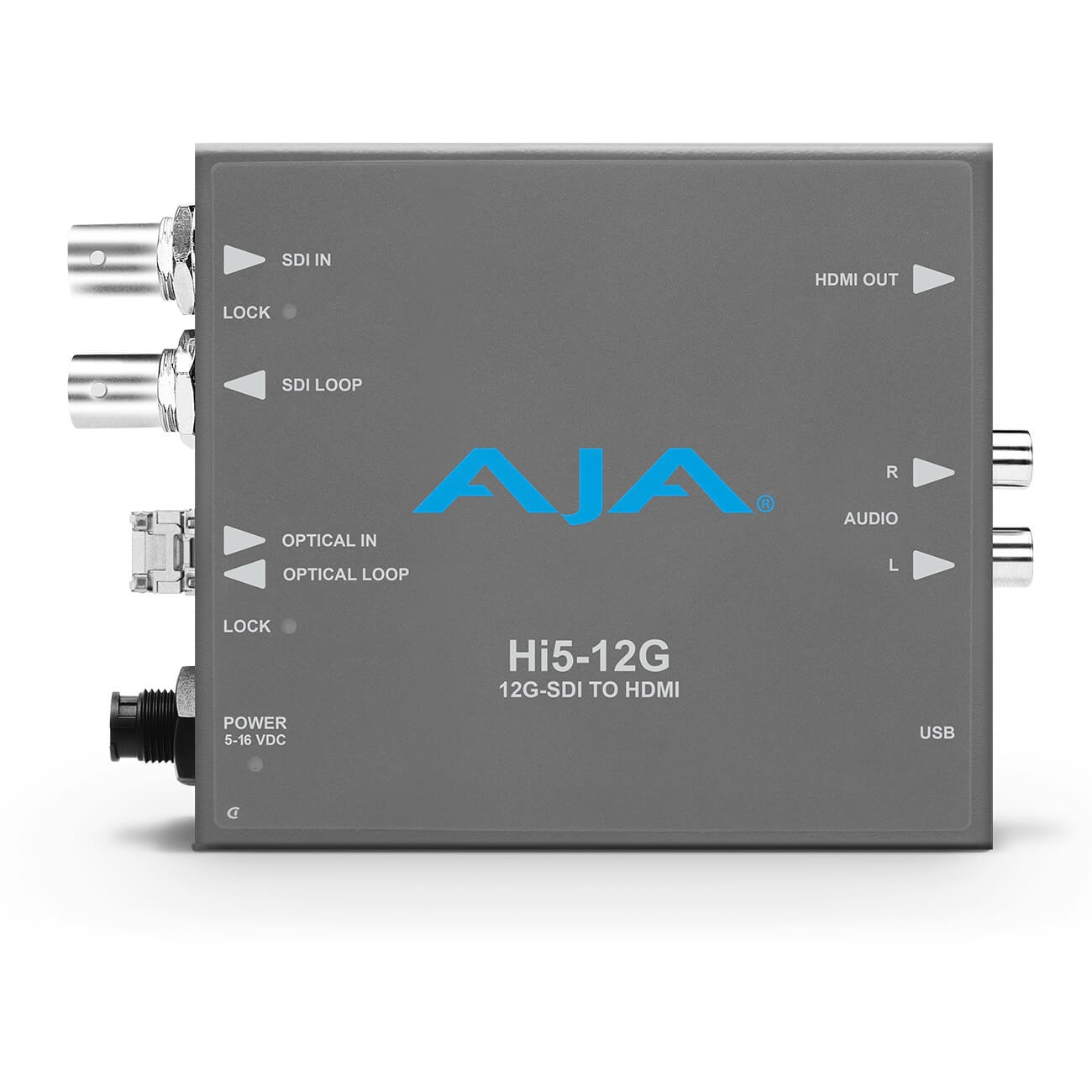

Fiber SFP equipped Hi5-12G models are available including the Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in Hi5-12G-R and Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features

• Convert 12G-SDI to HDMI 2.0b at up to 4K 60p

• Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0b output

• Supports 12-bit workflows

• HDR signaling metadata pass-through and optional override

• Embedded audio support 8-channel 24-bit

• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)

• Supports up to 100 frames of audio delay

• 12G-SDI loop out

• Fiber SFP models available

• USB port used with Mini-Config software application to configure the device via PC/Mac

• Uses 5-16 VDC power (Universal power supply included)

• Five year warranty
