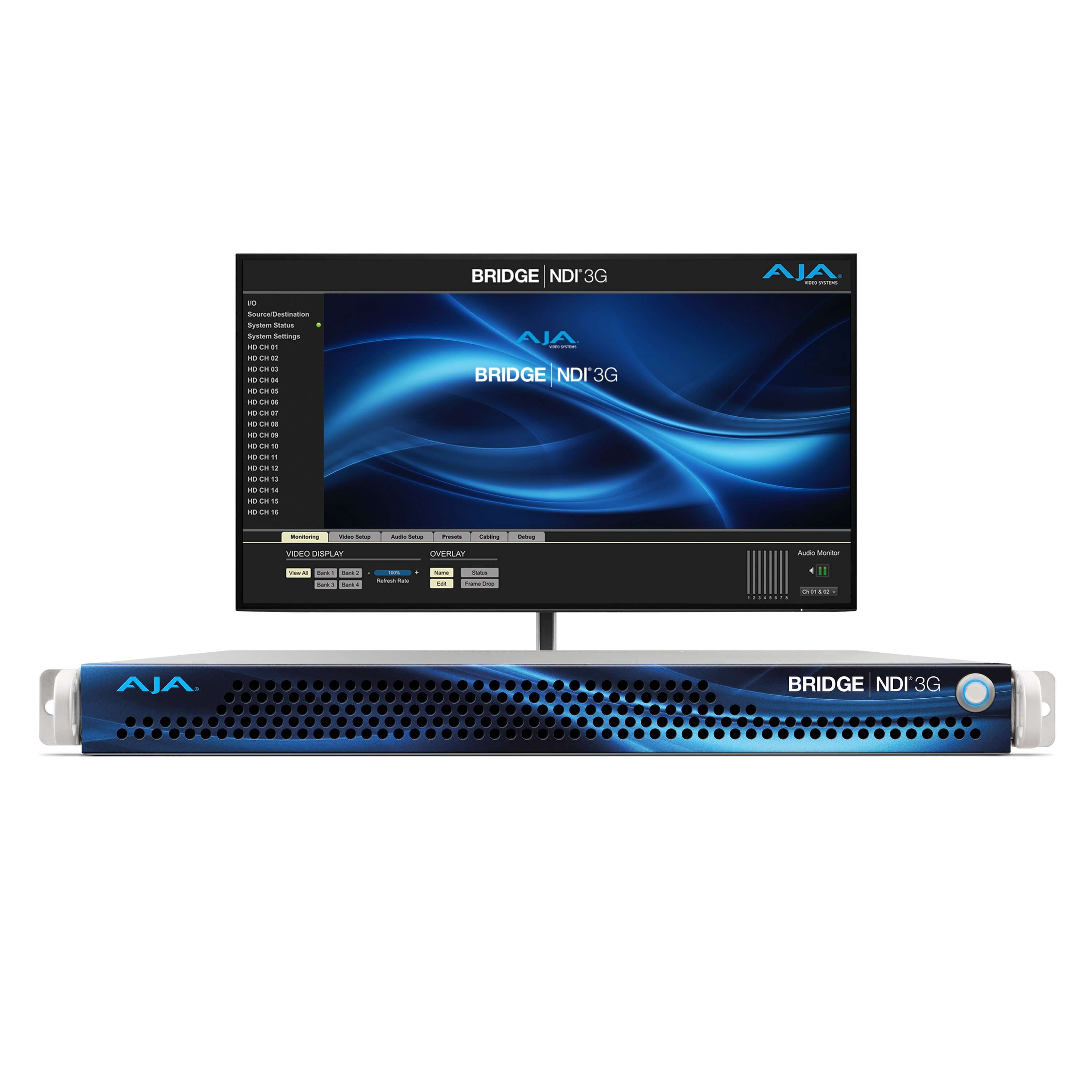

The AJA BRIDGE NDI 3G is a 1RU gateway offering high density conversion from 3G-SDI to NDI and NDI to 3G-SDI for both multi-channel HD and 4K/UltraHD. Designed to drop into any existing NDI or SDI workflow as a plug-and-play appliance, it's easy to deploy and administer.
BRIDGE NDI 3G brings immense conversion power and flexibility, fully controllable remotely for AV use, security and surveillance, broadcast, eSports, entertainment venues, and a wide range of other facilities needing high quality, efficient NDI encode and decode. Set and forget, or use more dynamically as project needs dictate.
Features
- 3G-SDI I/O supports 16-ch of SD/HD or 4-ch of 4K/UltraHD up to 60p as standard*
- Bidirectional encode/decode SDI to NDI, NDI to SDI, with a combination of HD or 4K/UltraHD video
- Confidence monitoring
- Supports NDI 6, NDI 5, and NDI 4
- Redundant Discovery Server Compatible
- Selectable NDI encode profiles for 8-bit and 16-bit, 4:2:2
- Buffer controls for low latency tuning
- Video and Key support
- Progressive and Interlaced video support
- 16-channel audio support
- Timecode support across VITC1, VITC2, LTC, and Time-of-Day
- Remote WebUI or local GUI for easy administration, control, and operation
- Turnkey 1RU rack mountable, enterprise-class form factor
- Dual 10GigE interface for media and control
- Dual power supplies for critical application redundancy
- 3 year warranty
*Ultimate performance based on network conditions, concurrent video processing, and other parameters
