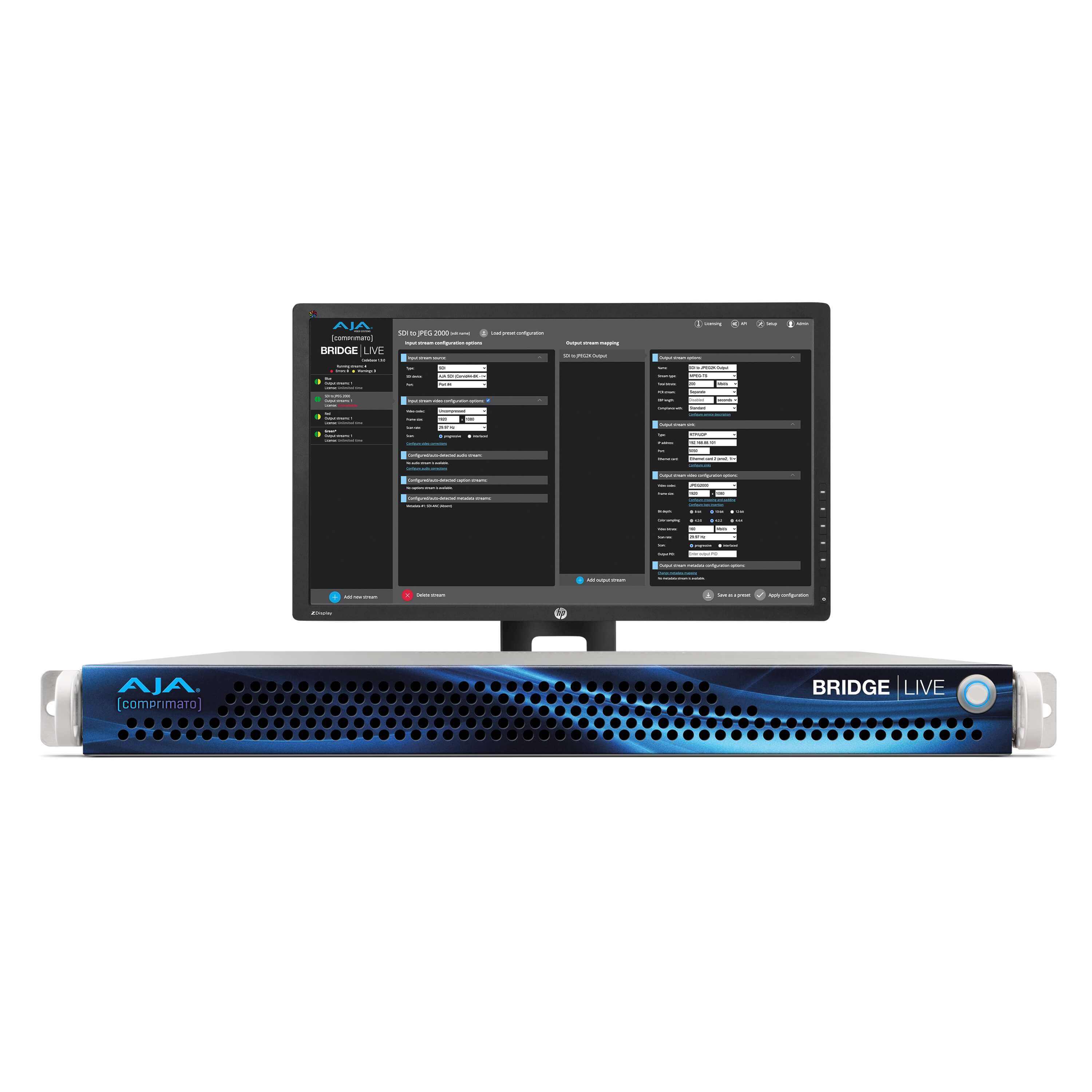

The AJA BRIDGE LIVE is a broadcast quality, low latency turnkey system for REMI, Synchronous Multi-Channel Video Contribution, Remote Collaboration, Direct to Audience Streaming, and Multi Bit Rate/ Multi Format Delivery.
BRIDGE LIVE was developed as a collaboration between AJA and Comprimato to deliver the performance, reliability, and ease of use necessary for critical live encode, decode, or transcode needs. Equipped with 12G-SDI I/O plus the power and flexibility to enable real time bidirectional encoding, decoding, and transcoding for critical UltraHD and HD workflows, BRIDGE LIVE is an essential part of any modern live video production toolkit. A compact and robust 1RU form factor with redundant power supplies and a three year warranty means peace of mind even when dealing with the most demanding applications.
New for 2024 is the latest Rocky Linux 9 Operating System, and the addition of SRT v1.5.3 with hitless redundancy for critical signal delivery over ISPs. Also new is Dolby E pass-through, AAC-HE support, SEI Timecode Insertion, and NDI support.
Whether facilitating remote production, two-way interviews, live event streaming, synchronous multi-cam backhaul with HDR, cloud contribution, program return, confidence monitoring, collaborative production, or ABR ladder profiles to hand off for OTT packaging, BRIDGE LIVE ensures simultaneous, secure, and stable workflows whether over purpose built dedicated lines or the public internet.
Features
- 12G-SDI/3G-SDI I/O supports Multi-Channel HD or UltraHD as standard
- Bidirectional Encode/Decode/Transcode; NDI, H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2), JPEG 2000* (TR-01), and JPEG XS* (TR-07)
- Synchronous Multi-Channel/Multi-System Transport for SDI backhaul or Cloud Delivery
- Protocols; SRT, UDP, HLS, RTP, RTMP/S, MPTS (input)
- Transports; MPEG-TS, NDI, AVC-TS, Fragmented MP4
- NDI Multiple Discovery Server support
- Supports NDI Groups
- Multi bit rate/format distribution, ABR Ladder Profiles for OTT hand-off
- Selectable profiles for 12-bit, 10-bit and 8-bit, 4:2:2 and 4:2:0 depending on the codec
- Unmatched metadata capabilities including MPEG-2 ANC, SMPTE 2038, Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21, H.264 SEI)
- Hitless Redundancy via ST 2022-7 and SRT 1.5.3
- HDR/SDR from SDI source to SDI destination in BRIDGE LIVE end-to-end configurations
- Remote WebUI or local GUI for easy administration, control, and operation
- Monitoring, Control, and Automation supported via REST API or SNMP

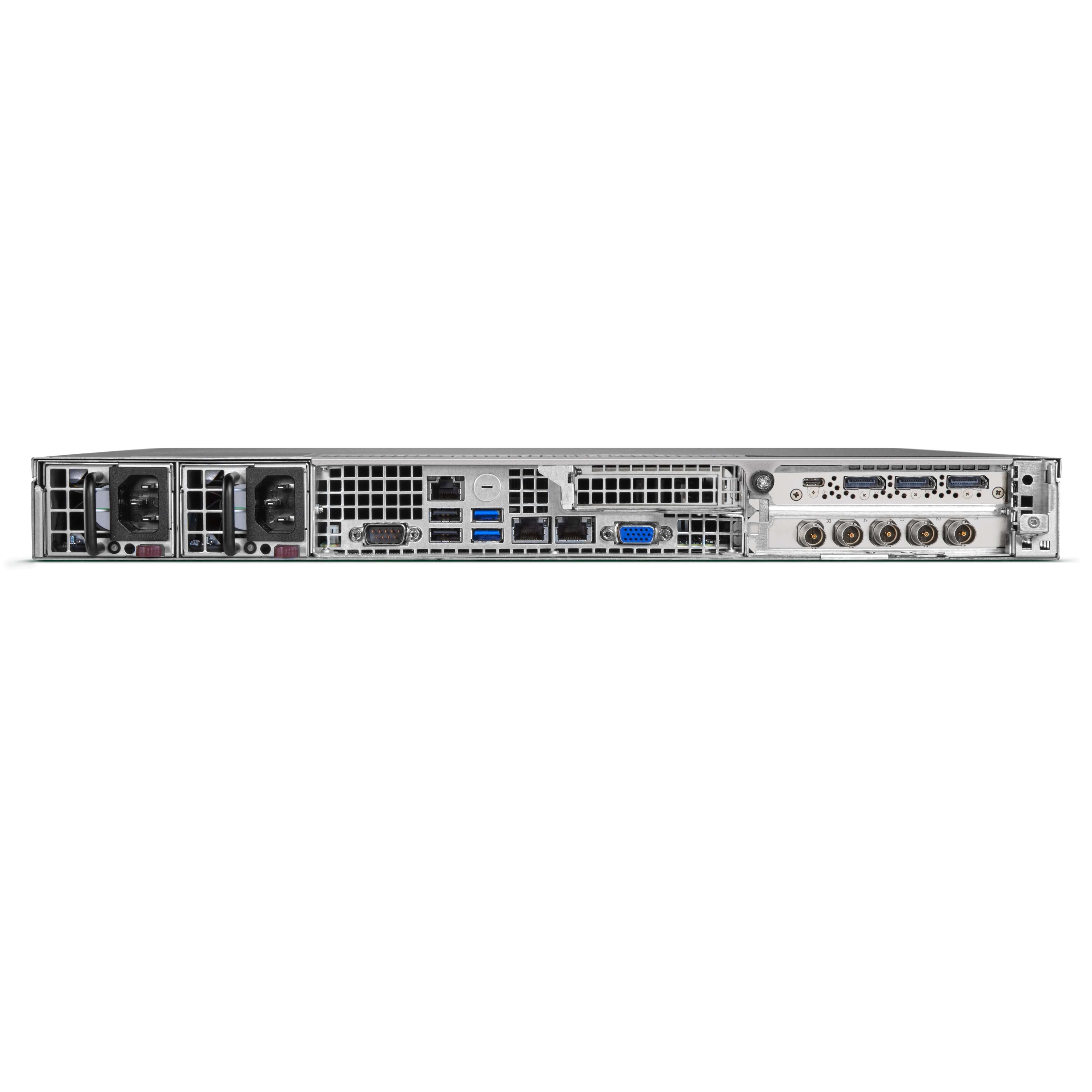

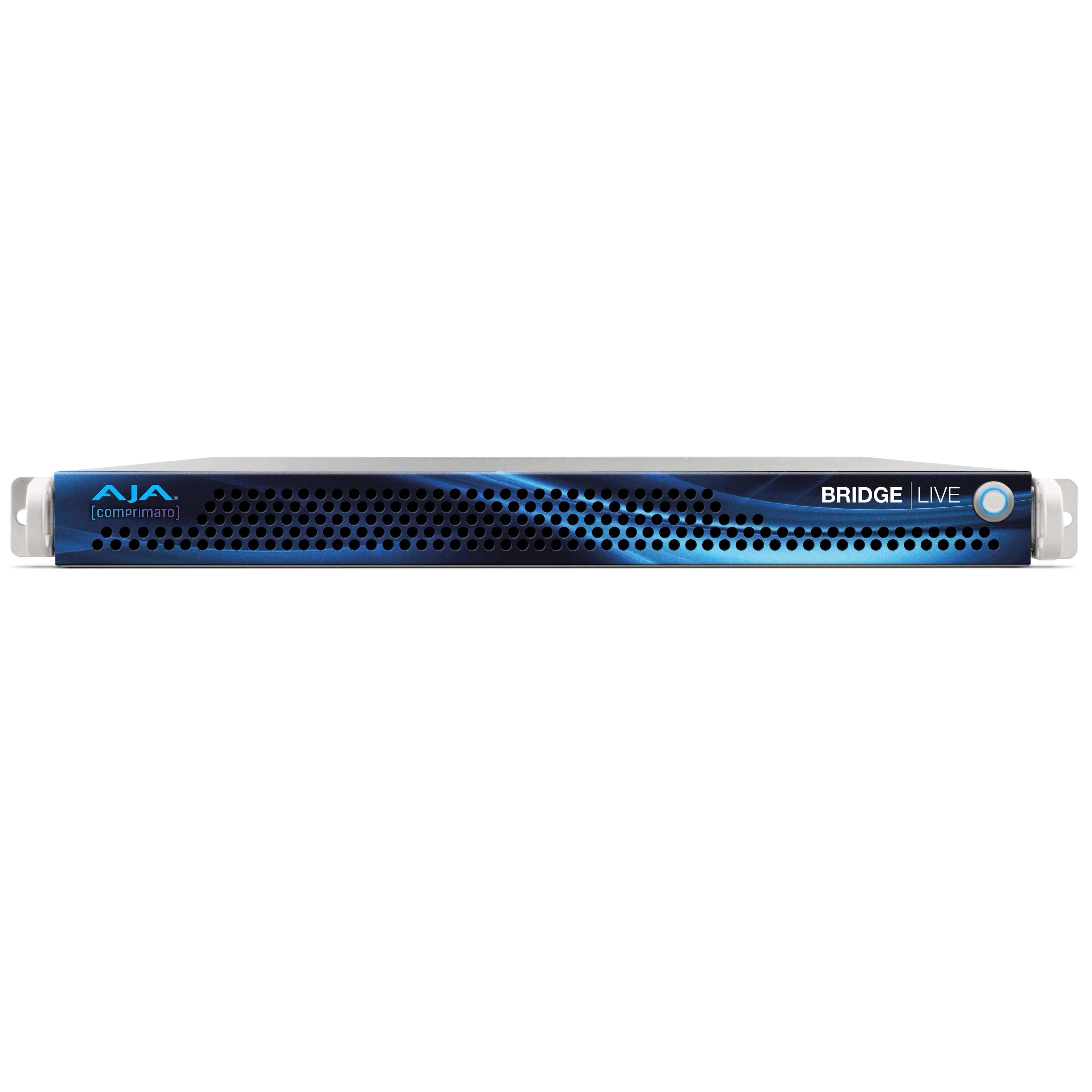

- Turnkey 1RU rack mountable, enterprise class form factor
- Dual 10 GigE interface for control and transport
- Dual power supplies for critical application redundancy
- 3 year warranty
*JPEG 2000 and JPEG XS I/O options are available as purchasable licenses. Full NDI, H.265, H.264, H.262, HLS, and RTMP I/O functionality is included with all BRIDGE LIVE systems.
