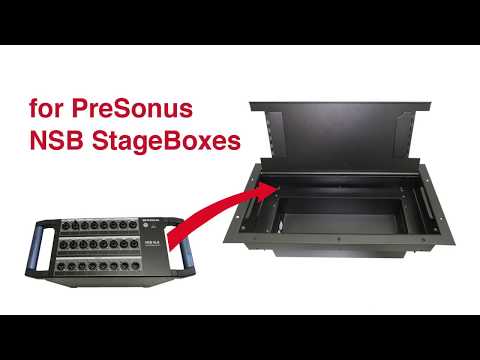

The Ace Backstage 175SLBK Stage Pocket is designed for permanent floor installation of the PreSonus NSB Stage Box (NSB 8.8 or 16.8). This Partnership Pocket allows the PreSonus piece to securely rest in the 175 Stage Pocket nesting frame while connectivity cables egress neatly onto the stage floor through dual hinged cable exits in the pocket lid.
Features

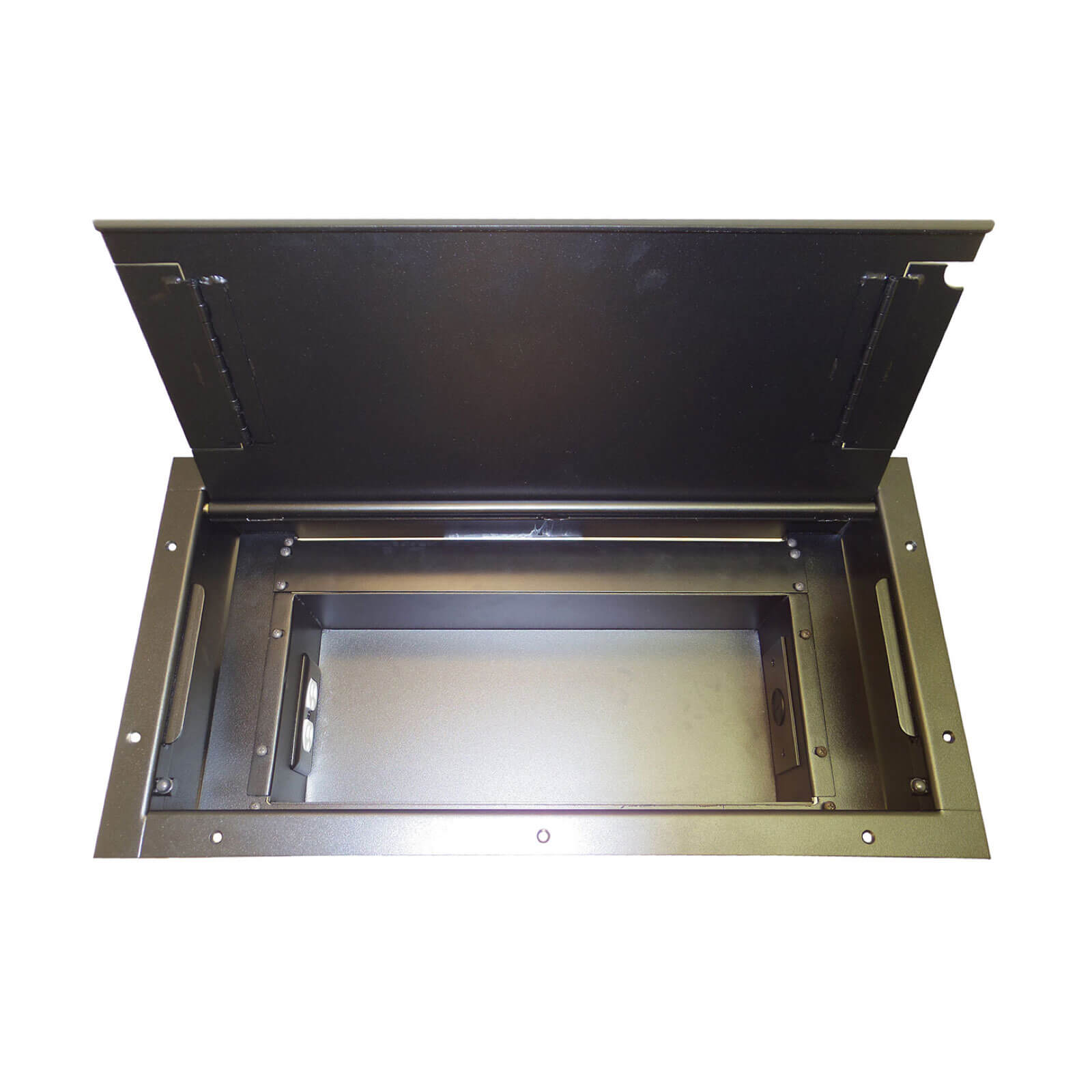

Sized to securely fit between typical stage floor joist framing, this Stage Pocket arrives with the internal nesting bracket installed and can accept an additional 1 RU rack panel for added connectivity or PDU installation.
Hinged Lids

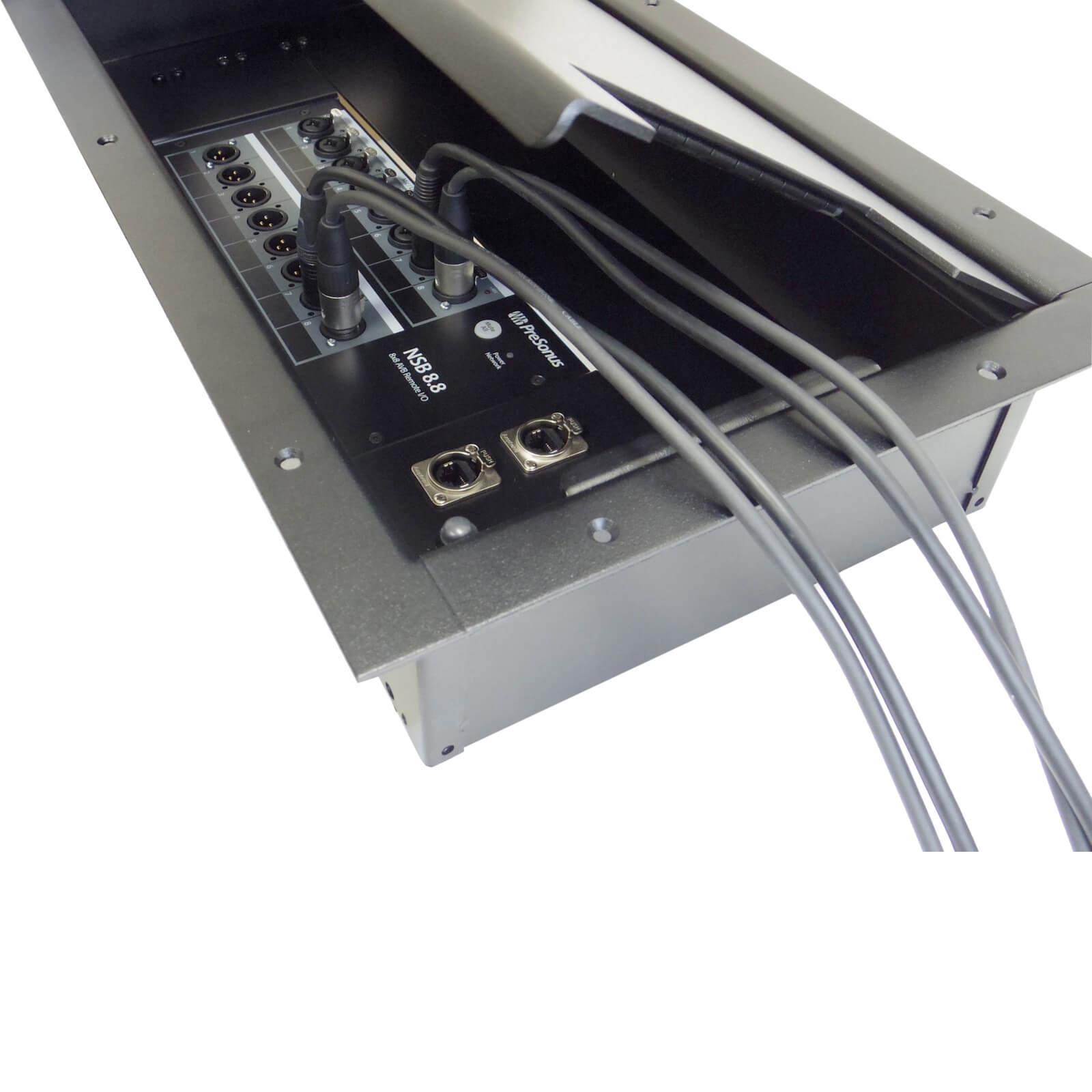

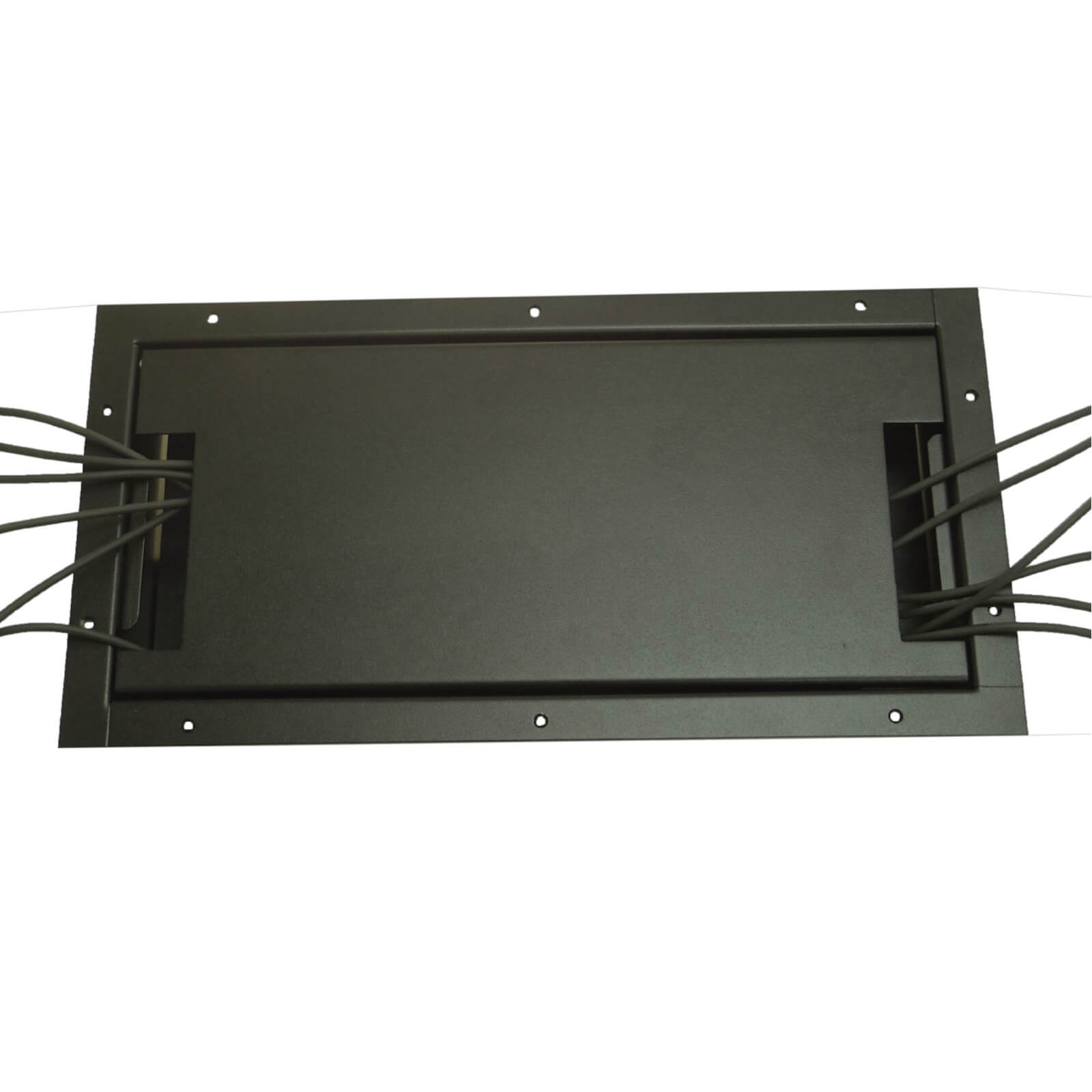

Removable hinge pins allow the lid to be disconnected for easy pocket floor installation. The solid steel lid is designed to resist bending even under the most severe stage load. Dual hinged cable exits on opposing sides of the Stage Pocket lid pivot down to allow many cables to exit, or pivot flush to close all openings.
Nesting Bracket Design

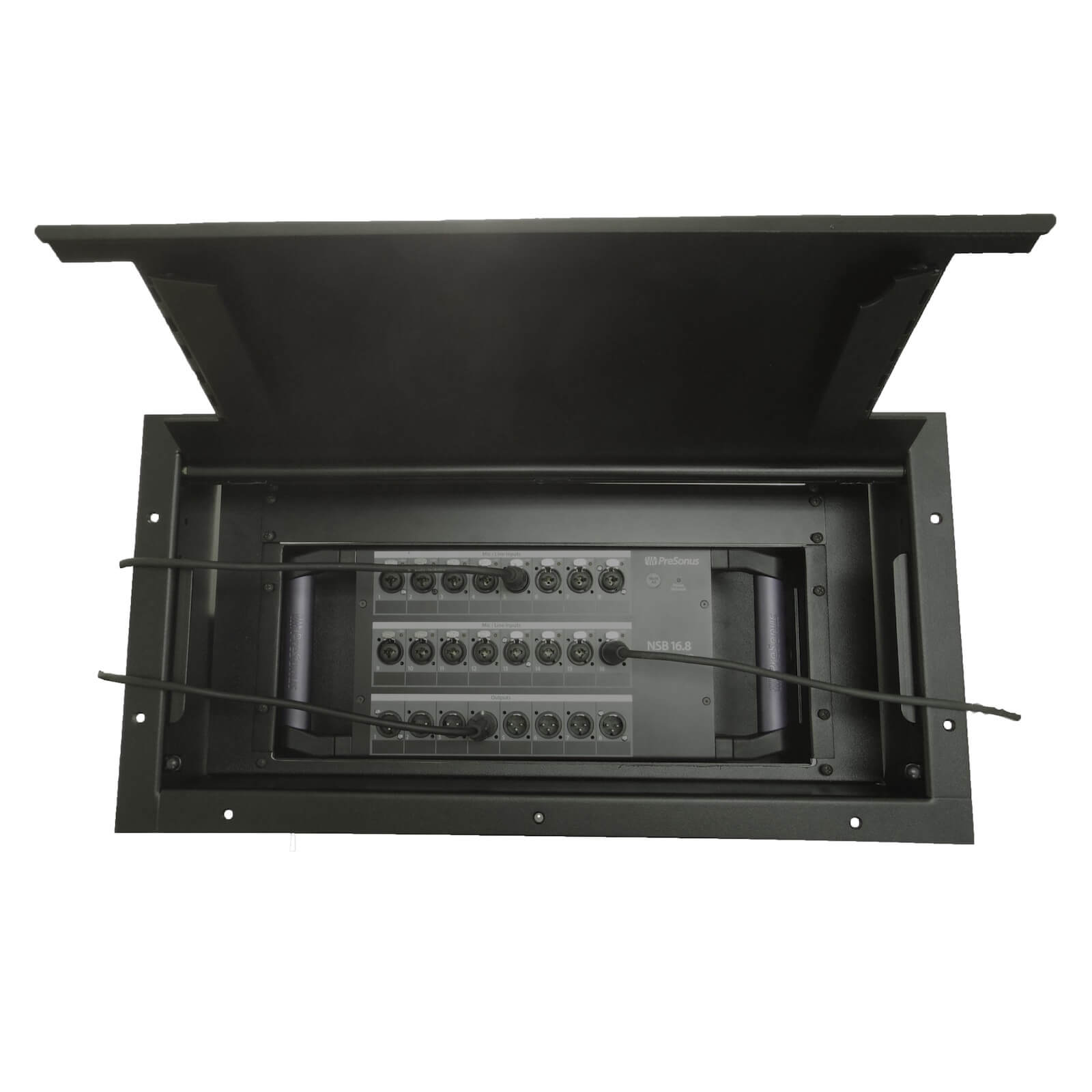

Specifically for NSB Stage Boxes, the Pocket Nest accepts one networked stage box to provide appropriate clearance for cable end connectivity while protecting the connections and electronics under the steel lid. Two single gang access panel positions are located in the bracket.
Optional 175 Kit
Finishing accessories for the PreSonus Stage Pocket are available in this kit. Included are one single gang high voltage conduit connection, one single gang grommeted feed thru access panel for power cords, and one magnetic neoprene dust cover for electronic I/O protection.
Connectrix Panels and Connectors
Designed to provide flexibility, standard RPL-100 Series Panels are always in-stock and mate perfectly with this pocket. Hundreds of isolated connectors are available for no-charge mounting and immediate delivery. Loaded and labeled rack panels can be delivered along with your Stage Pocket in one package, in less than 3 days from time of order.
Specifications

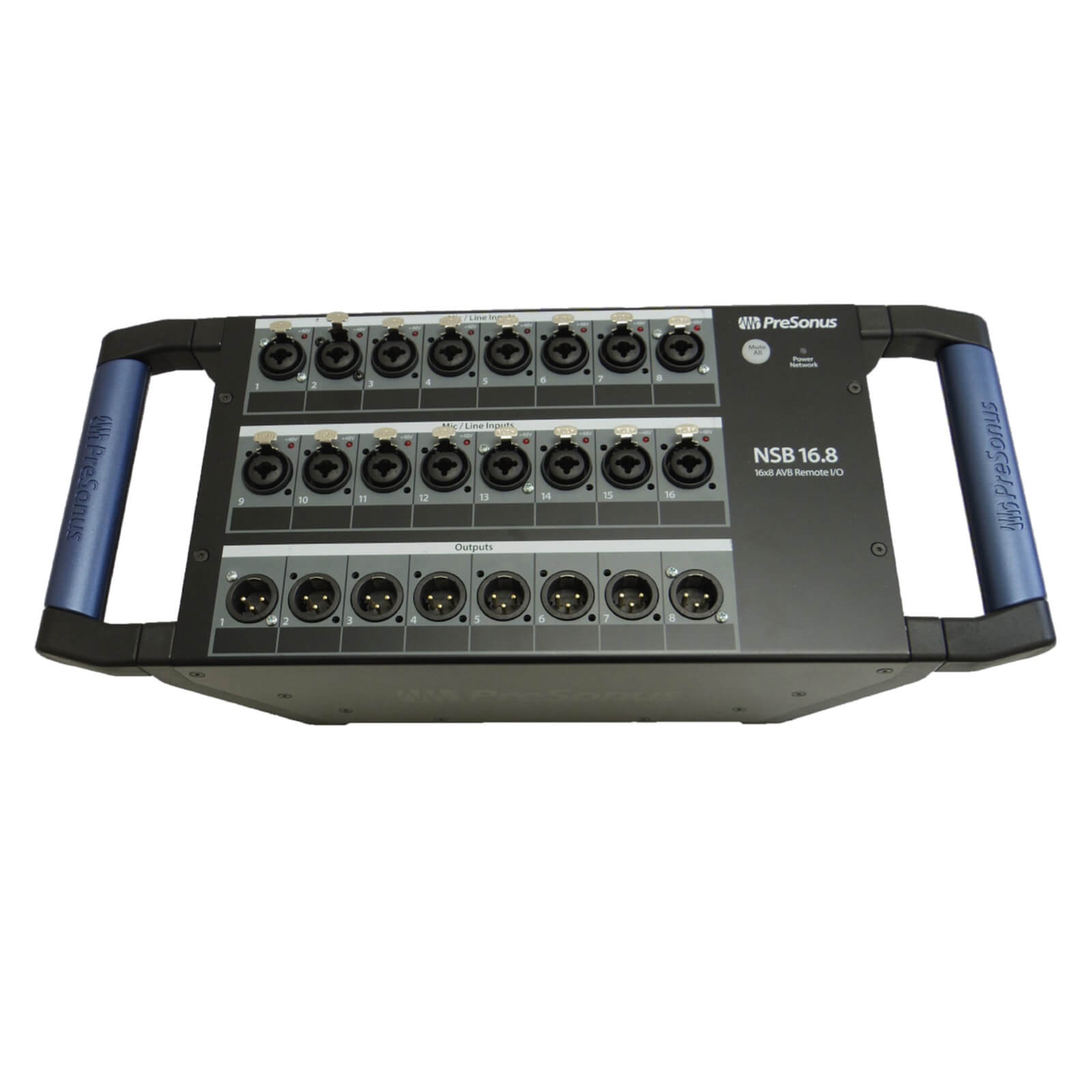

• Capacity: PreSonus NSB Stage Box (NSB 8.8 or 16.8)
• Above Floor Dimensions: 24.3" x 12.3"
• Floor Cut Out: 22.5" x 10.375"
• Under Floor Depth: 4" deep
• Connectrix panels, connectors, and outlets not included
