Description

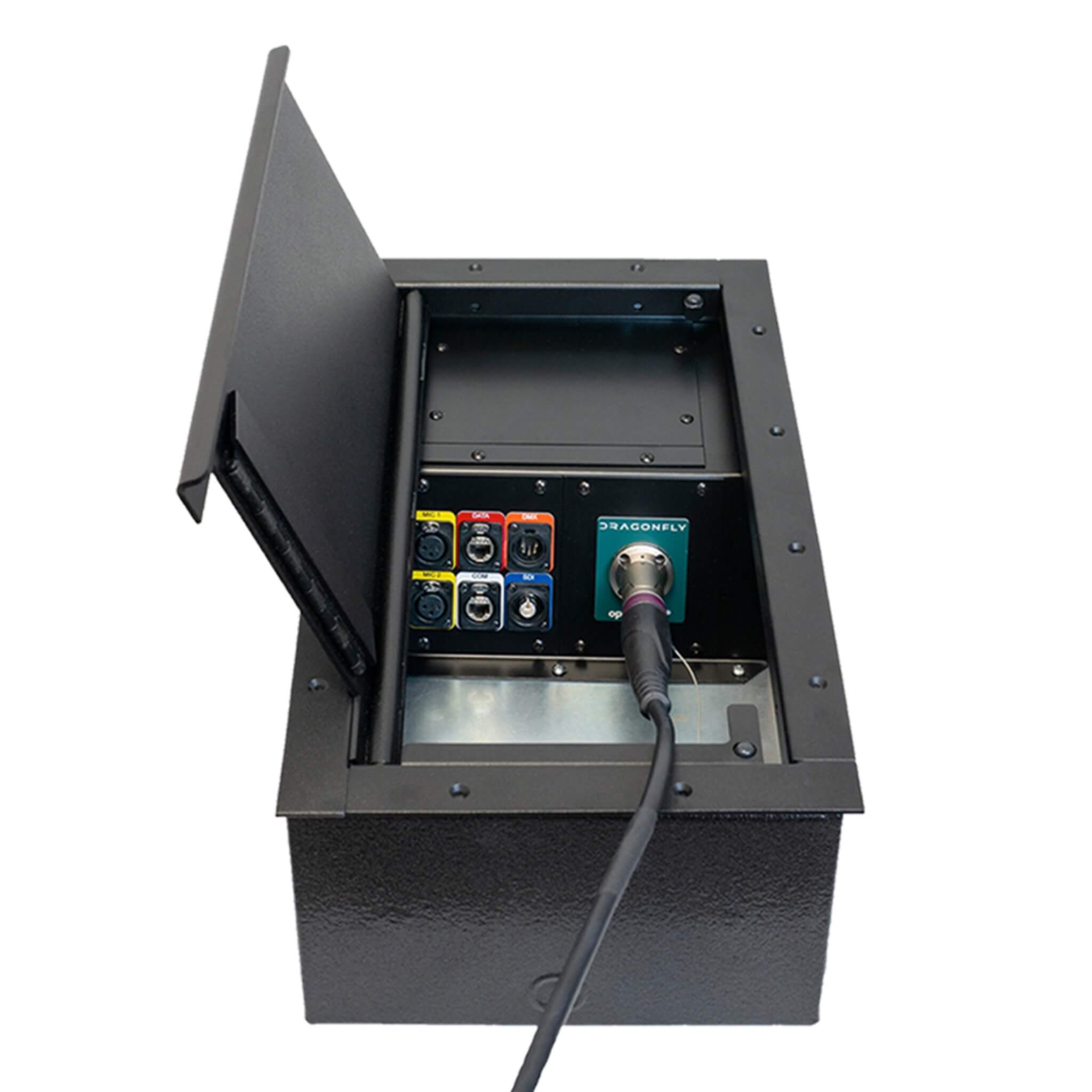

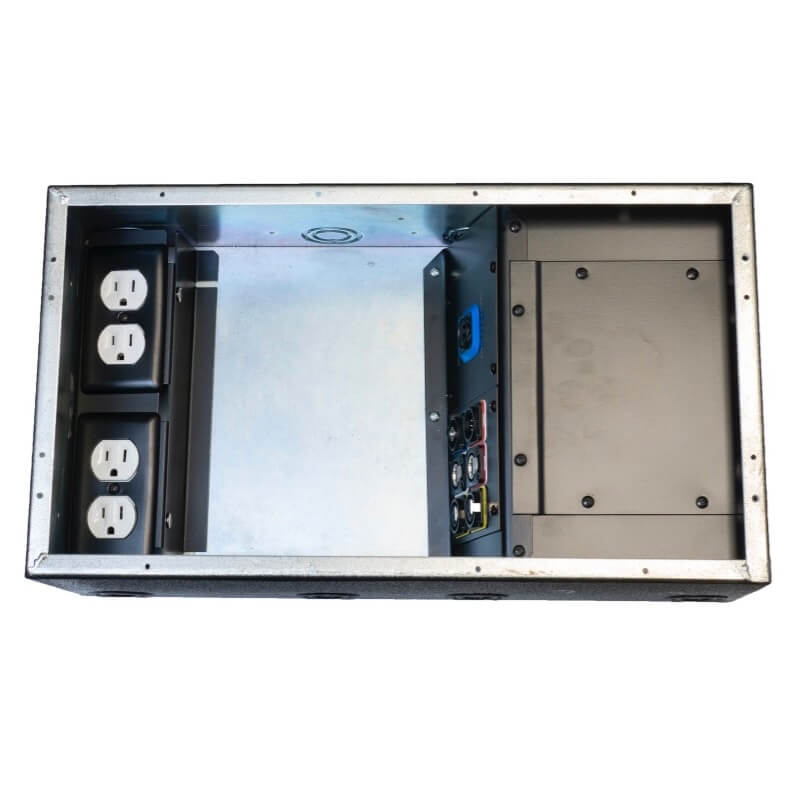

The Ace Backstage 154SLBK Super DW (double-wide) Pocket supports bend radius recommendations for fiber optic, digital, and control cables. Partnering with Neutrik, this pocket was designed for permanent installation of opticalCON connectors, allowing cables to exit the lid without bending. An isolated duplex raceway moves the high voltage connectivity to the opposite end of the pocket body, allowing for an increased number of line level and hybrid connections.
Features
• Fits 2 standard PNL-100 Series Panels and 2 Duplex Covers
• 3 piece assembly can be installed before or after floor installation
• Removable spring-loaded hinge pins permit easy lid removal
• Solid steel lid is load tested to withstand up to 750lbs

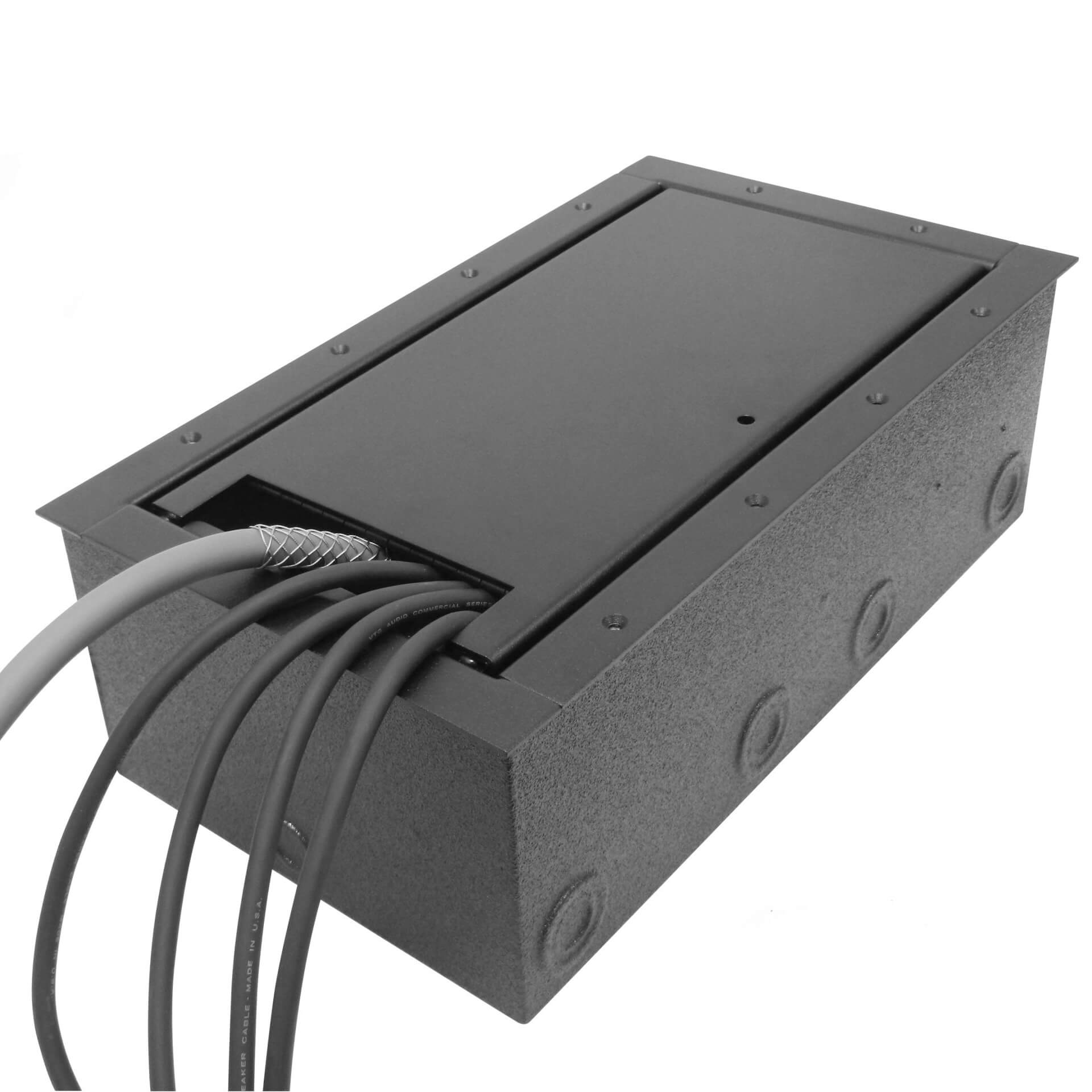

• Lid Stop eliminates cable-pinch by allowing a more natural cable egress
• Punched and sealed combination knockouts on all sides of the back box
Includes
• Back box pocket body with panel mounting brackets installed
• Disposable construction cover
• Lid and bezel assembly
• Bezel mounting screws
Additional Parts Required
• 2 PNL-100 Series Connectrix panels and connectors
• 2 DC or DB duplex covers and electrical receptacles
