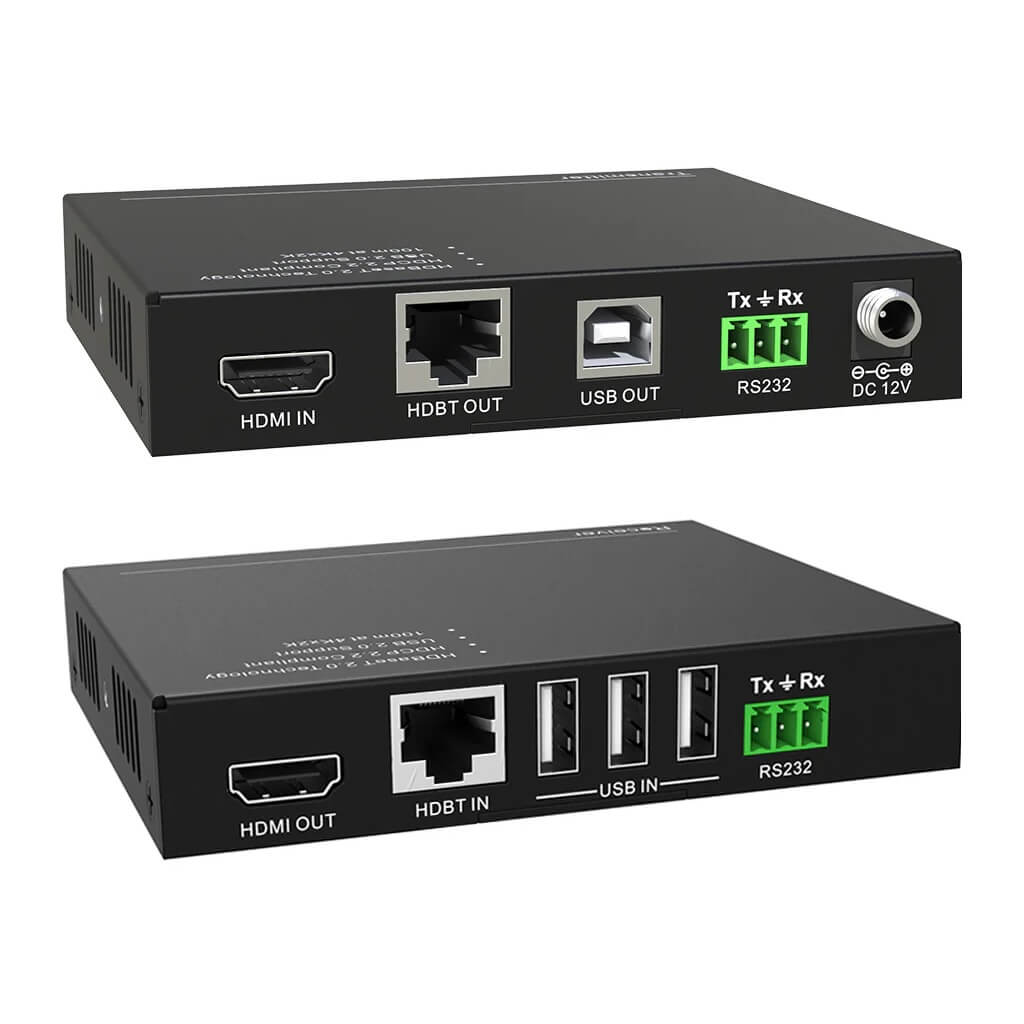

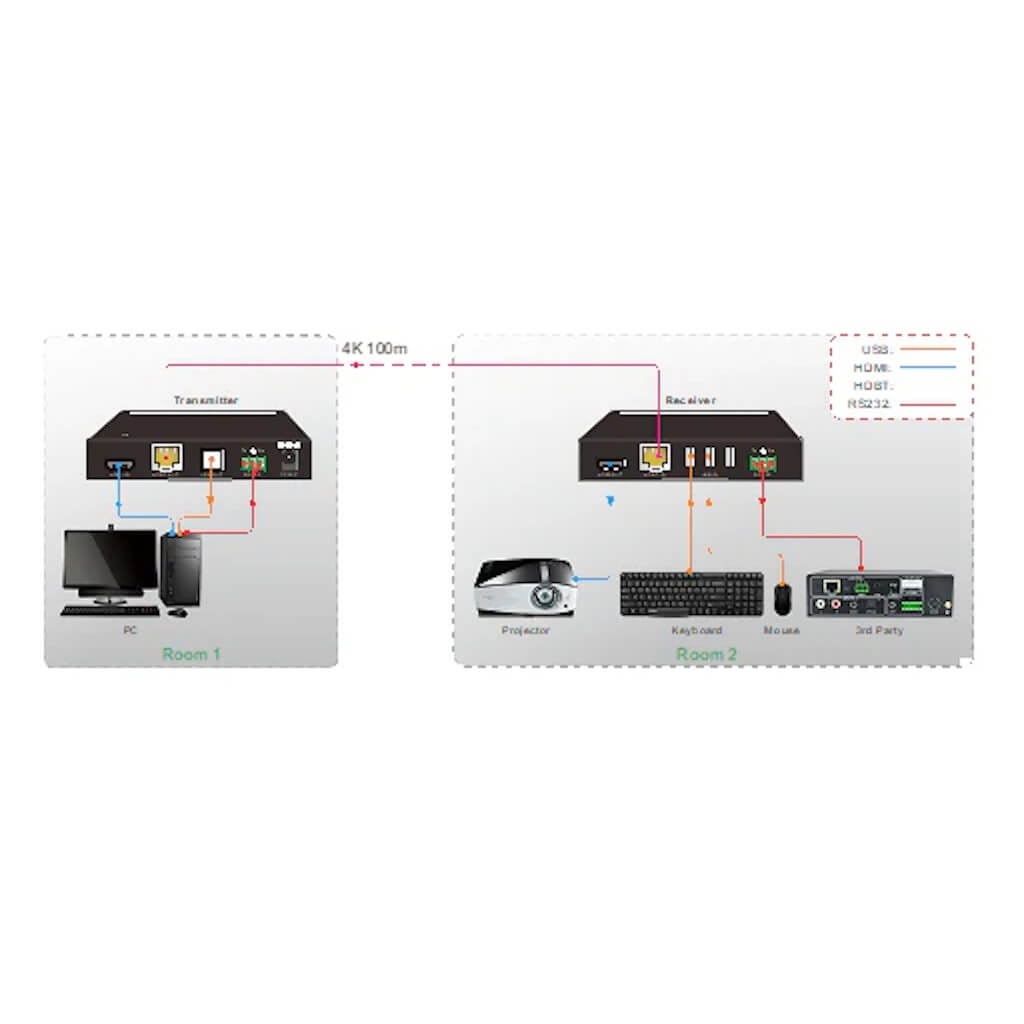

The DVDO Xtend-HDMI-USB is an HDBaseT extender set designed to transmit both HDMI and USB signals over distances up to 328 feet (100 meters) using a single CAT6 cable. It supports video resolutions up to 4K at 60Hz. The transmitter features one HDMI input and one USB-B port for connection to a host device, while the receiver offers three USB-A ports for peripheral devices and one HDMI output for display connection. The system supports one-way Power over Cable (PoC), enabling the transmitter to power the receiver. It also offers control via RS232 or USB, and both the transmitter and receiver include front-panel LED indicators for power, HDBaseT link, and HDCP status.
Features
• HDMI 1.4 and HDCP 2.2 compliant
• Supports video resolutions up to 4K@60Hz
• Transmission distance: up to 328ft/100m at 4K60 or 1080p60 with CAT6 cable
• HDMI and USB-B ports for host device on Tx
• Three USB device ports for peripherals and HDMI output on Rx
• EDID pass-through

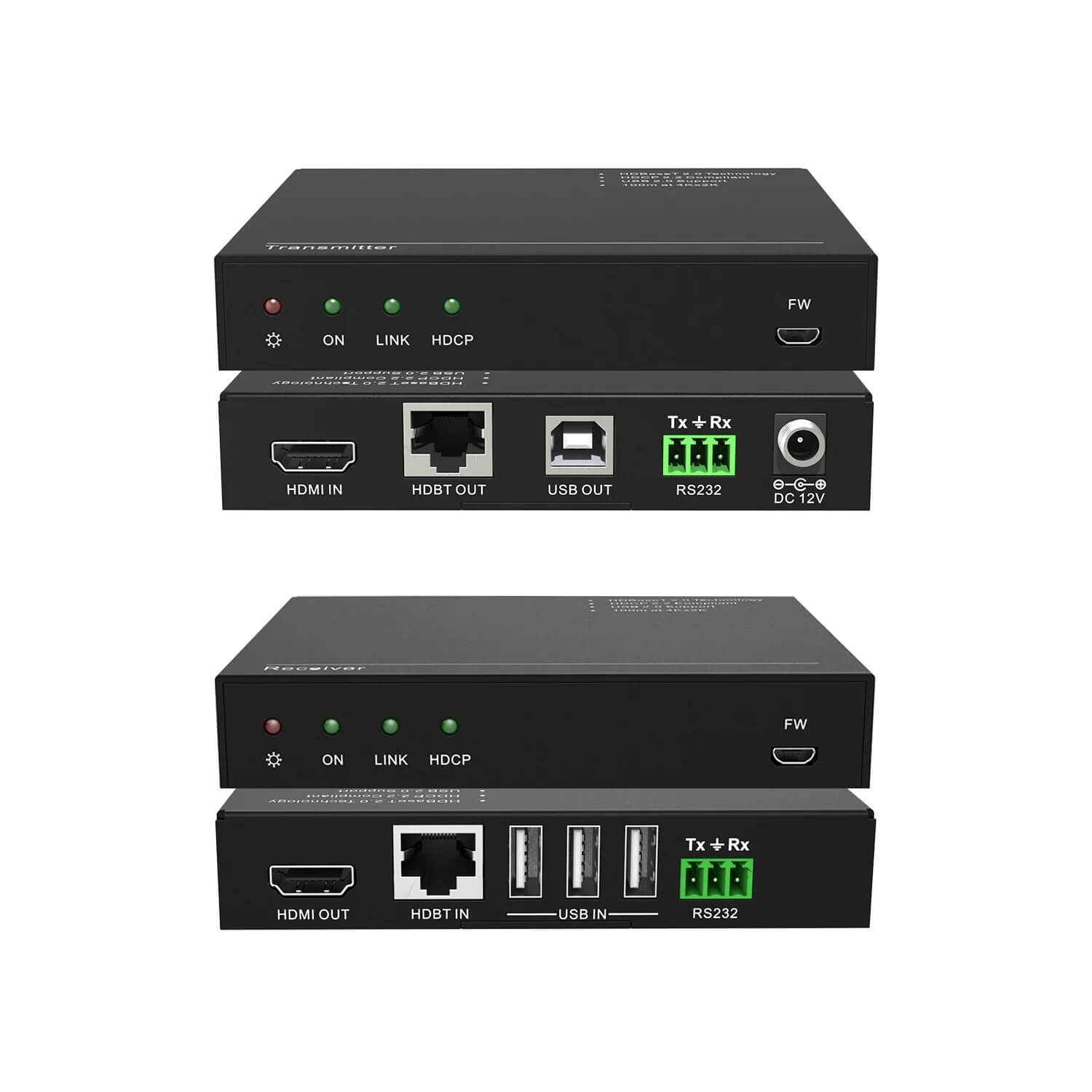

• Front panel LED indicators for power, HDBT link and HDCP
• One-way PoC (Tx powers the Rx)
• RS232 and USB control
• Compact design for easy and flexible installation
