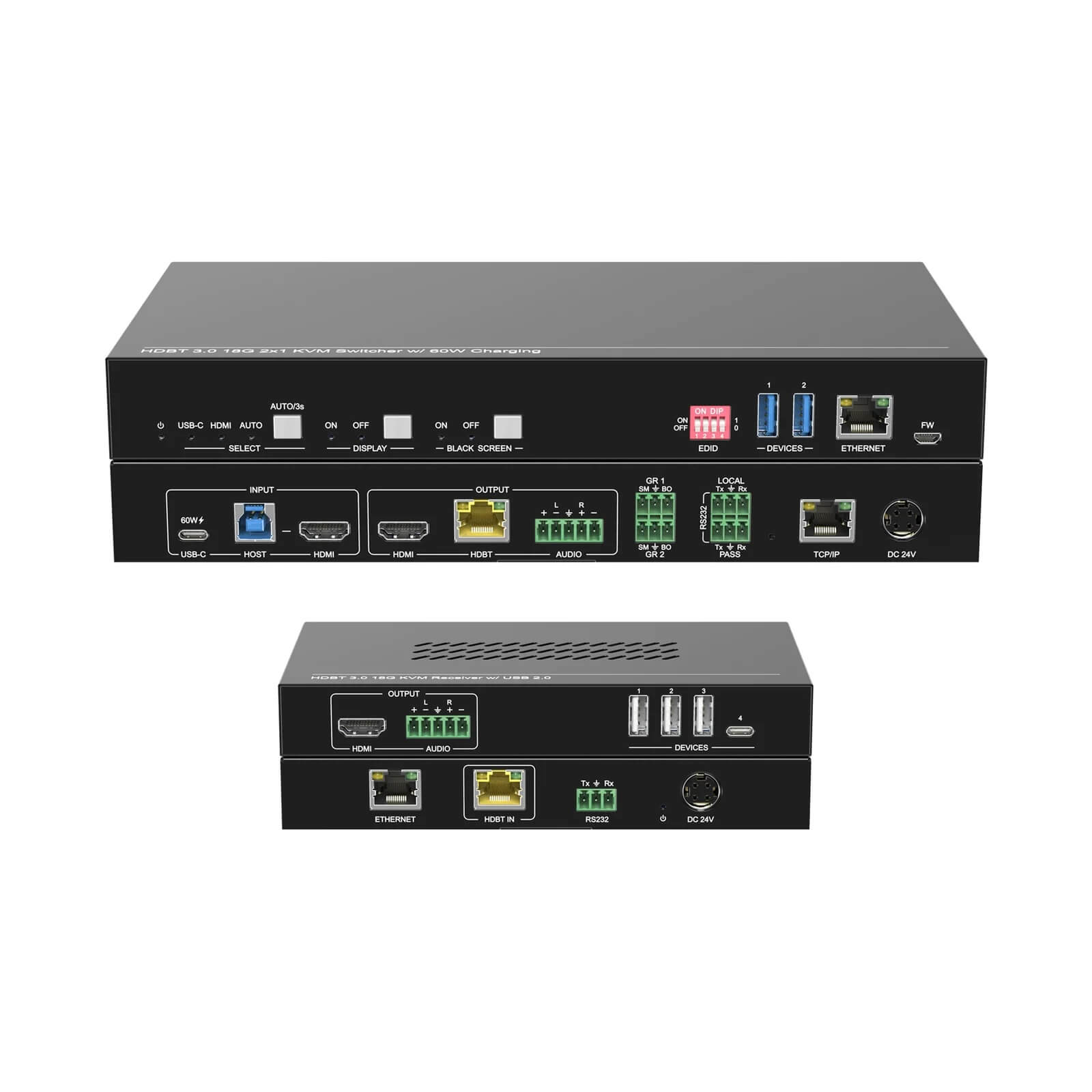

The DVDO USBC-HDMI-PS-21-Xtend is a 2x1 presentation switcher and extender designed for high-performance AV integration. It features one HDMI and one USB-C input, along with one HDMI output and a mirrored HDBaseT output. Supporting video resolutions up to 4K60 4:4:4, it can transmit uncompressed 4K signals up to 328 feet (100 meters) over a single Cat6a or Cat7 cable using HDBaseT 3.0 technology. The USB-C input supports DisplayPort Alt Mode for video, 5Gbps data transfer, and up to 60W of power delivery. The system includes USB switching and extension via multiple USB ports on both the transmitter and receiver. It also offers audio de-embedding with dedicated audio inputs on both ends. Control options include front panel buttons, CEC, RS-232, and IP via an intuitive web GUI. Additionally, it supports bidirectional Power over Cable (PoC) for simplified installation.
Features
• HDMI 2.0b, HDCP 2.2, HDBaseT 3.0, DP1.4
• Video resolutions up to 4K@60Hz 4:4:4 @ 18Gbps
• Transmits uncompressed 4K and 1080p video up to 328ft/100m over a Cat6a cable
• Manual and auto switching modes
• Inputs: 1 x USB-C + 1 x HDMI
• Outputs: 1 x HDMI + 1 x HDBT (Tx)/1 x HDMI (Rx)
• USB-C input supports 4K60 DisplayPort Alt Mode, USB 3.2/5Gbps and 60W charging
• Audio de-embedding with separate balanced audio outputs on both Tx and Rx
• Multiple USB device ports: 2 x USB-A 3.0 on Tx/3 x USB-A 2.0 + 1 x USB-C on Rx
• Advanced EDID management
• Control via front panel buttons, CEC, RS-232, TCP/IP or intuitive web GUI
• Bidirectional 48V PoC
