Description

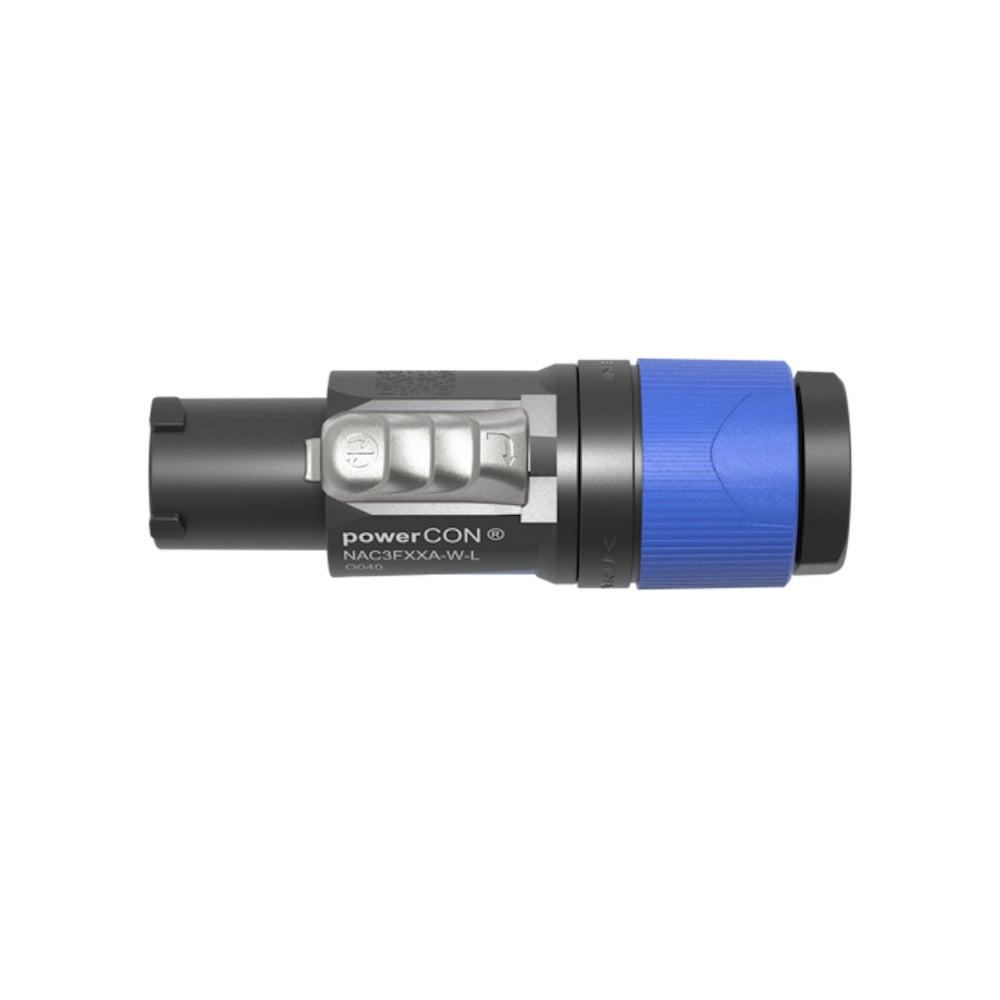

The Neutrik NAC3FXXA-W-L is a locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10-16 mm.
The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Features
• IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified
• Power-in (blue) and power-out (grey) versions feature different keying
• Easy and reliable twist lock system
• Ergonomic design with slip-proof two-component molded housing
• Unique NEUTRIK locking bushing and strain relief for cable dia. 10 mm to 16 mm
• Superior NEUTRIK quality standard, extremely robust and reliable
• Improved kink protection by two-component bushing
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
