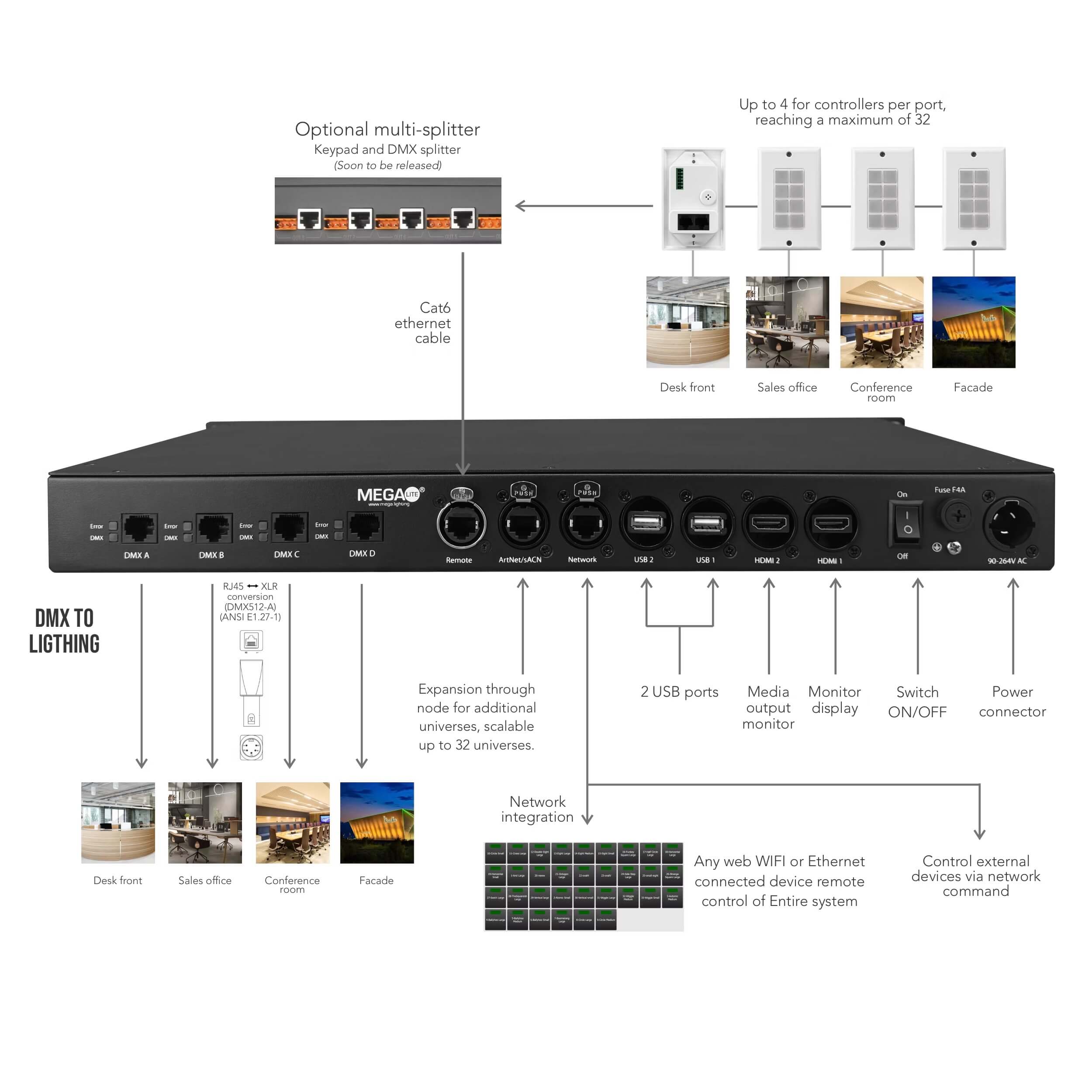

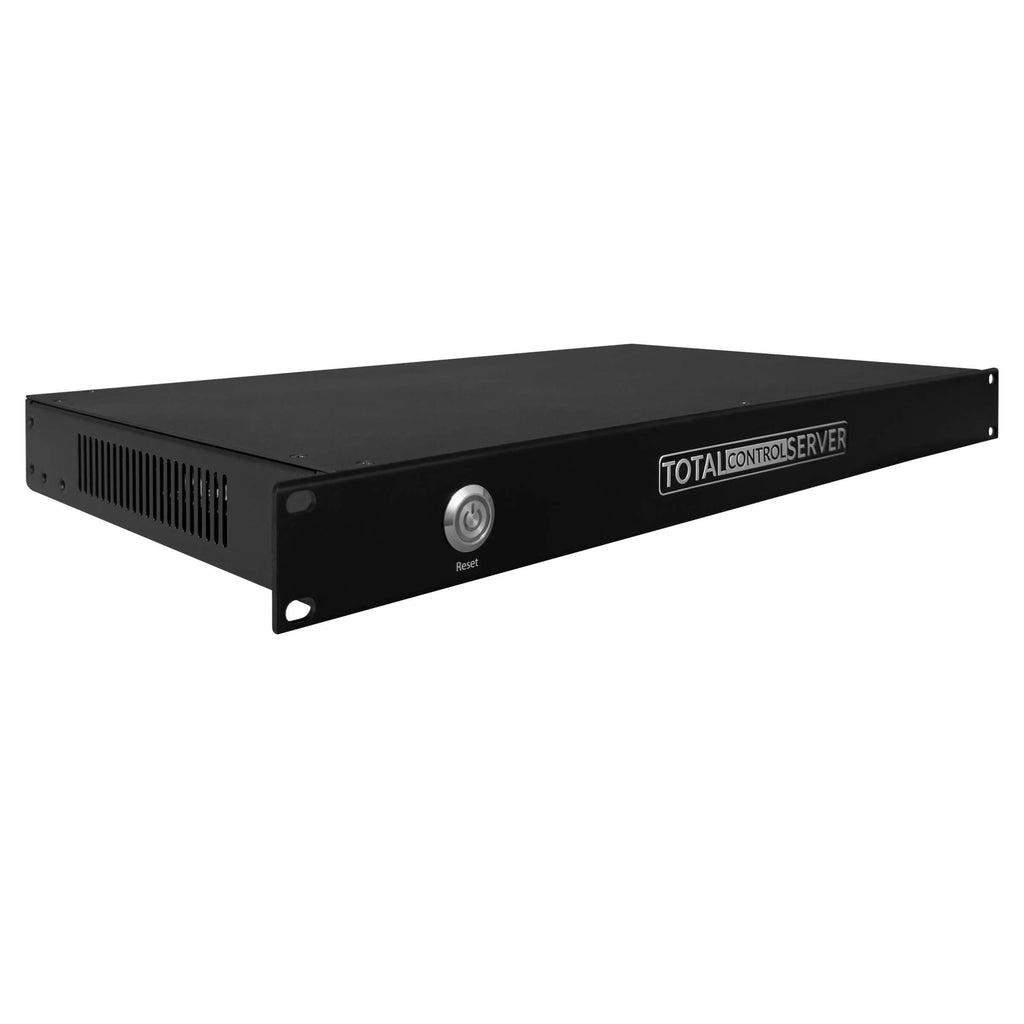

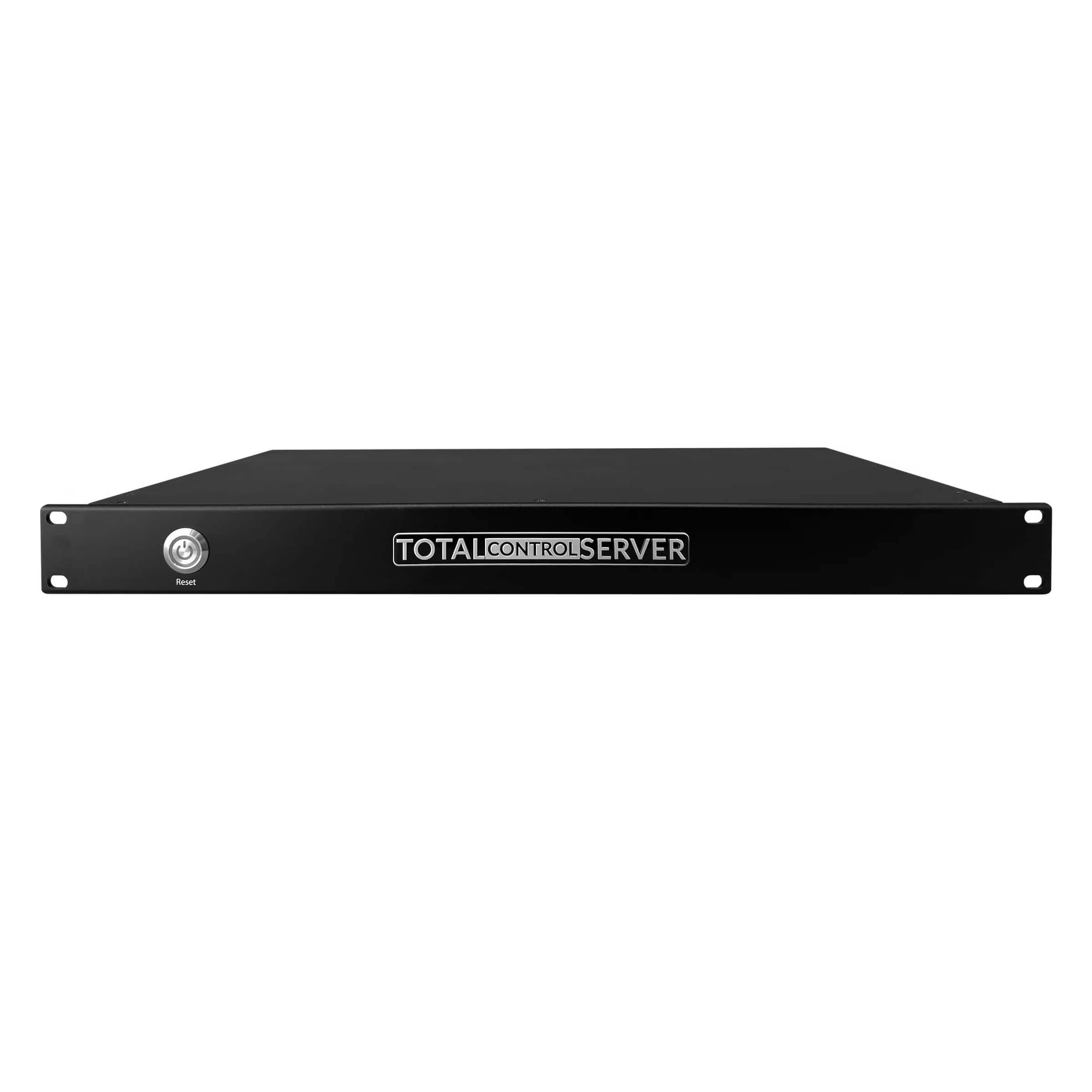

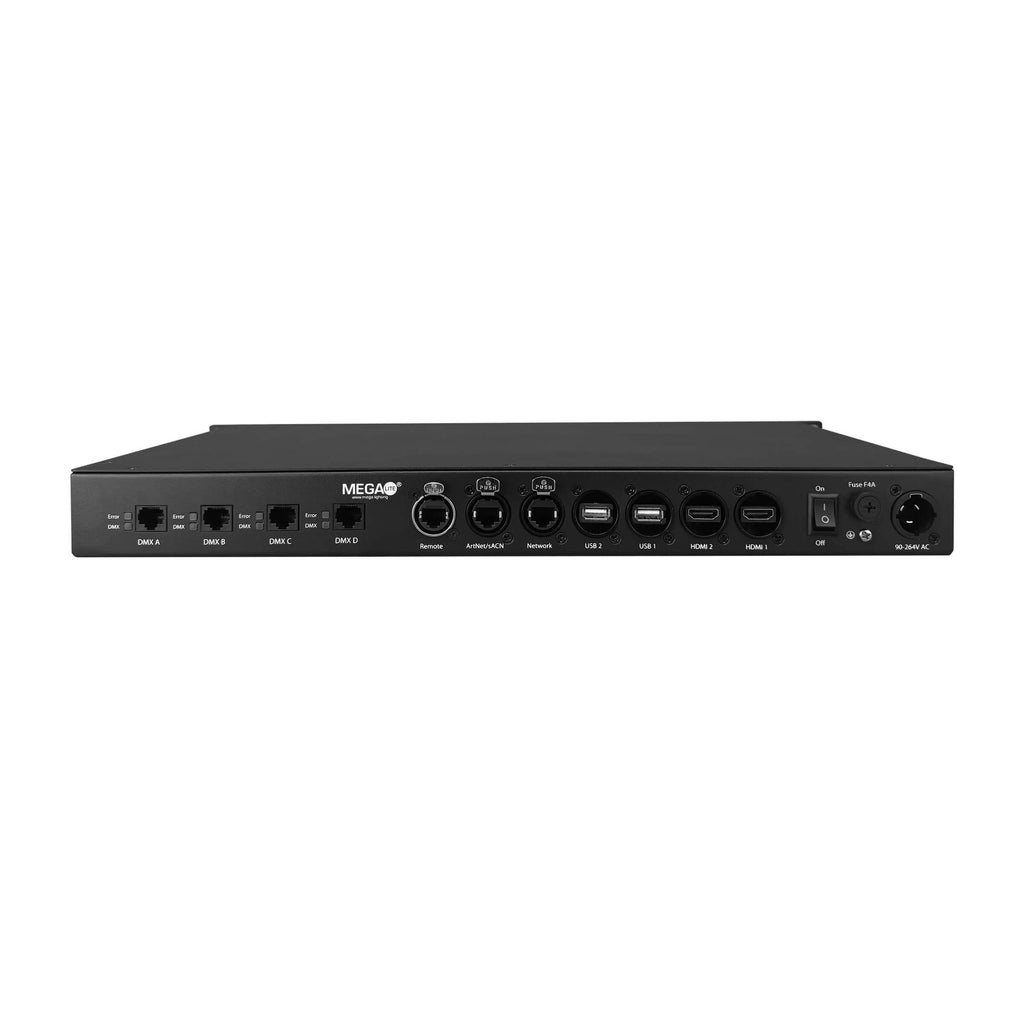

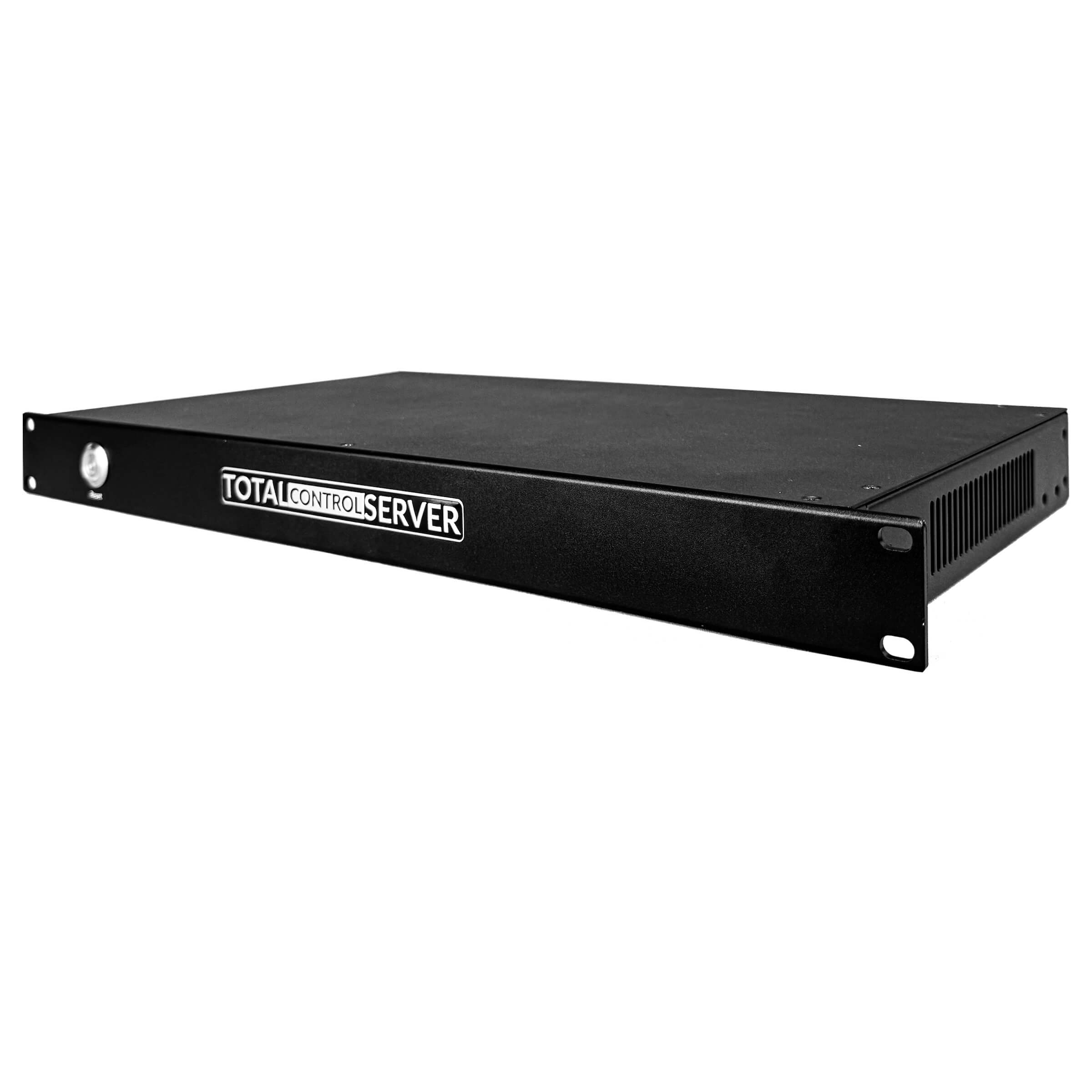

The Mega-Lite Total Control Server is a compact, all-in-one lighting processor that features embedded DMX, Art-Net, and ACN functionality. It comes with four built-in universe outputs and can be expanded to control up to 24 universes.
It operates on the EnlightenARC operating system, which includes features such as scheduling, direct operation, and all the programming and effects control capabilities that Enlighten provides for fixture discovery. The server includes DMX fault detection on its four primary outputs, so you can ensure your cabling is free of issues. Each link supports up to 32 wall controllers, or 96 with an optional splitter.
With web-based remote control, you can add the server to your network and manage it from anywhere with secure, password-protected ACN integration. Additionally, it includes HD video output and a secondary HDMI output for playing back media files. The Total Control Server features a failsafe emergency back scene and allows you to schedule lighting events based on time.
The Total Control Server is robust, featuring 2048 DMX channels on board, with the capability to expand via Art-Net using nodes to increase the number of outputs.
Features
• 4 universes output built-in
• RDM for fixture discovery and addressing
• HD video out for video playback
• Up to 32 wall controllers per run
• With optional splitter 96 wall remotes
• Color coded buttons on single gang wall switch
• DMX fault detection
• Integrated web remote for control from any web enabled device
• Runs enlightenARC lighting control operating system
• Schedule lighting events based on time
• Control external devices via network command
Applications
• Architectural multi-room environments using up to 32 wall button controllers
• Commercial lighting control, perfect for restaurants or themed environments
• Architectural lighting features, monuments, and outdoor facade lighting
• Trade show booth control, utilizing only 1RU space
• Production applications
