Description
The Lumantek ez-DSK Live CG Generator allows easy application of subtitles, images, sequences, videos, and widgets over your video program. Connect the ez-DSK to your PC (Windows OS*) through USB 3.0 and send all your graphics created with our dedicated CG software ez-CGER.
Key features
The ez-DSK gives you Zero Delay through its internal Fill & Key overlay application. It also has a Fail Safe mechanism to prevent catastrophic broadcasting disasters. At the same time, your video signals will be re-clocked with ez-DSK.
Fail Safe
Feel safe with ez-DSK's Fail Safe. Even when powered off, your broadcasting will continue (1 SDI output port), so do not worry about it malfunctioning during your live show.
Zero Delay
The ez-DSK overlays the CG over your video stream by internally processing the Key & Fill. It gives you Zero Delay to your broadcasting. On top of that, there is no need to spend an extra port of your switcher.
Distributor and Converter
There are 4 SDI output ports, 1 HDMI output port, and 1 SDI loop out port. You can add multiple monitors to the ez-DSK without the need of a distributor. (Or a SDI to HDMI converter for that matter).
Complimentary CG software
All Lumantek CG products come with their dedicated CG software, ez-CGER. This software has an easy user interface to learn. You will be a pro in no time.

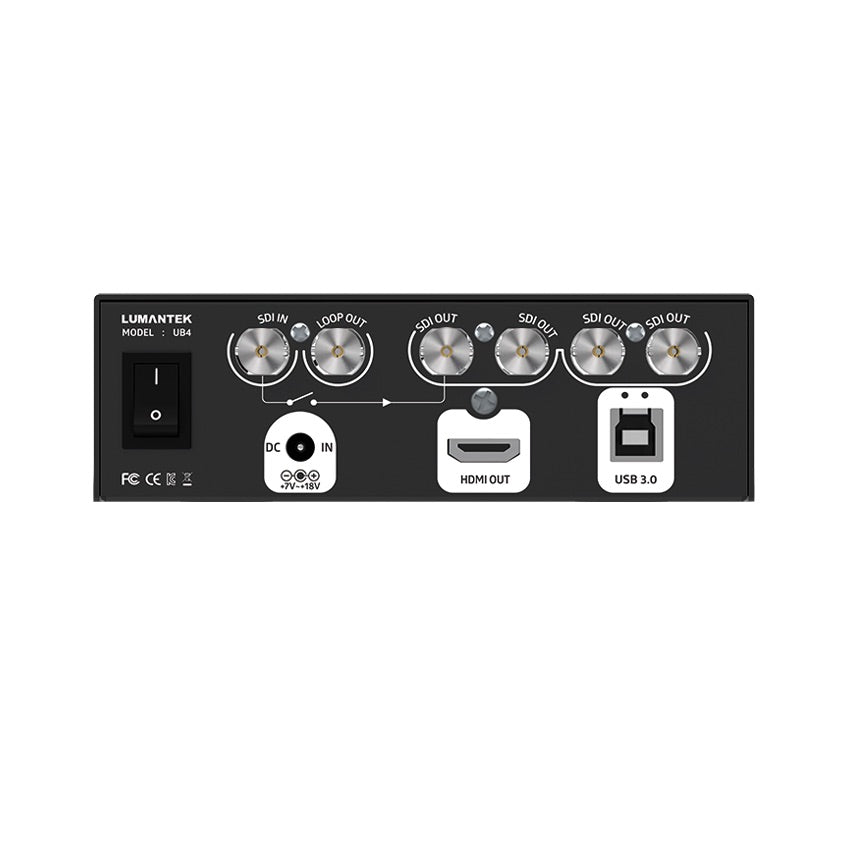

Input Ports
1 x SDI
1 x USB 3.0
Output Ports
1 x SDI (Loop Out)
4 x SDI (1 port has 'Fail Safe' mechanism)
1 x HDMI
*System requirements must be met.
