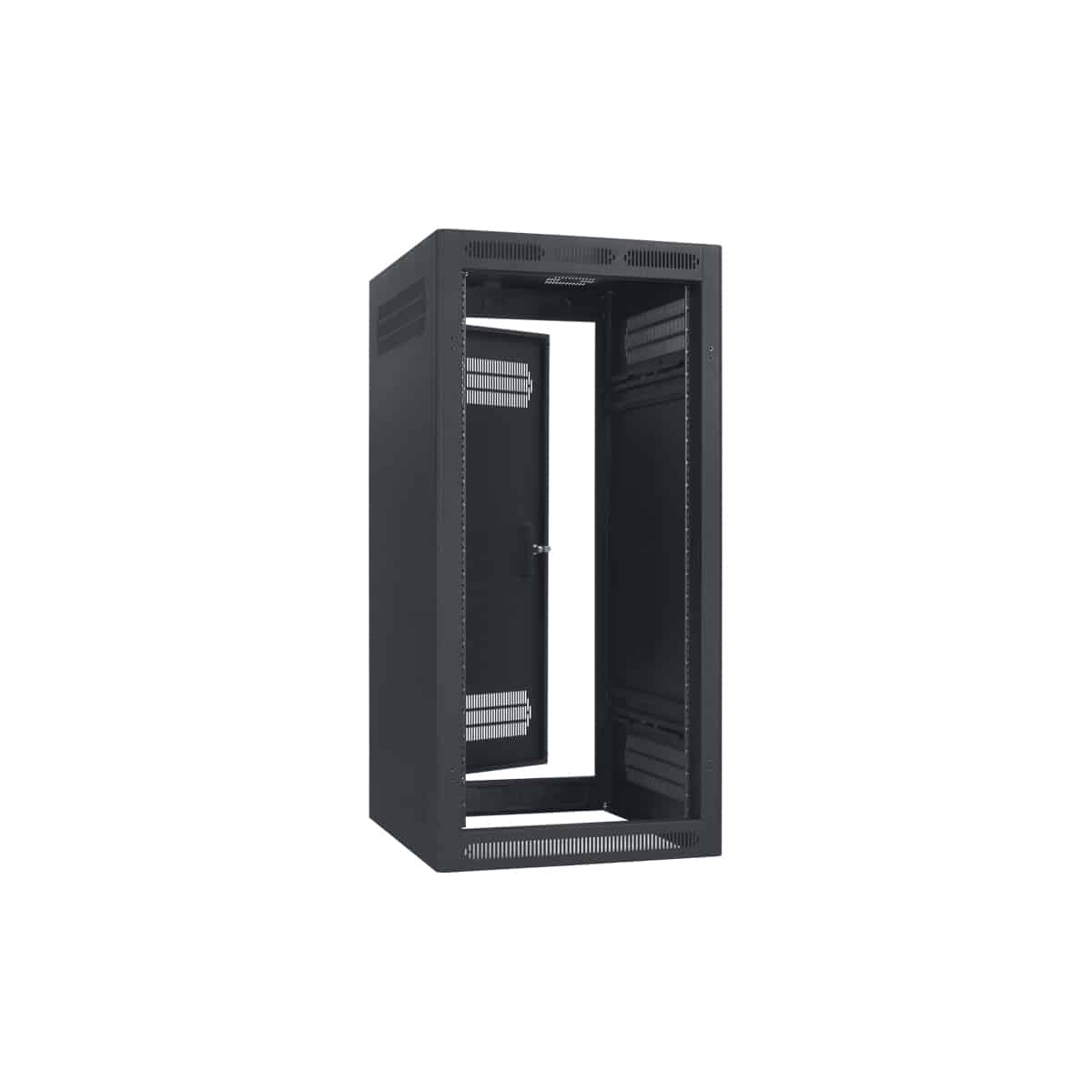

The Lowell LER-2422 is a 24U x 22"D stand-alone floor rack with adjustable rails, is fully welded 16-gauge steel with 14-gauge base, and reinforced at all load-bearing junctions.

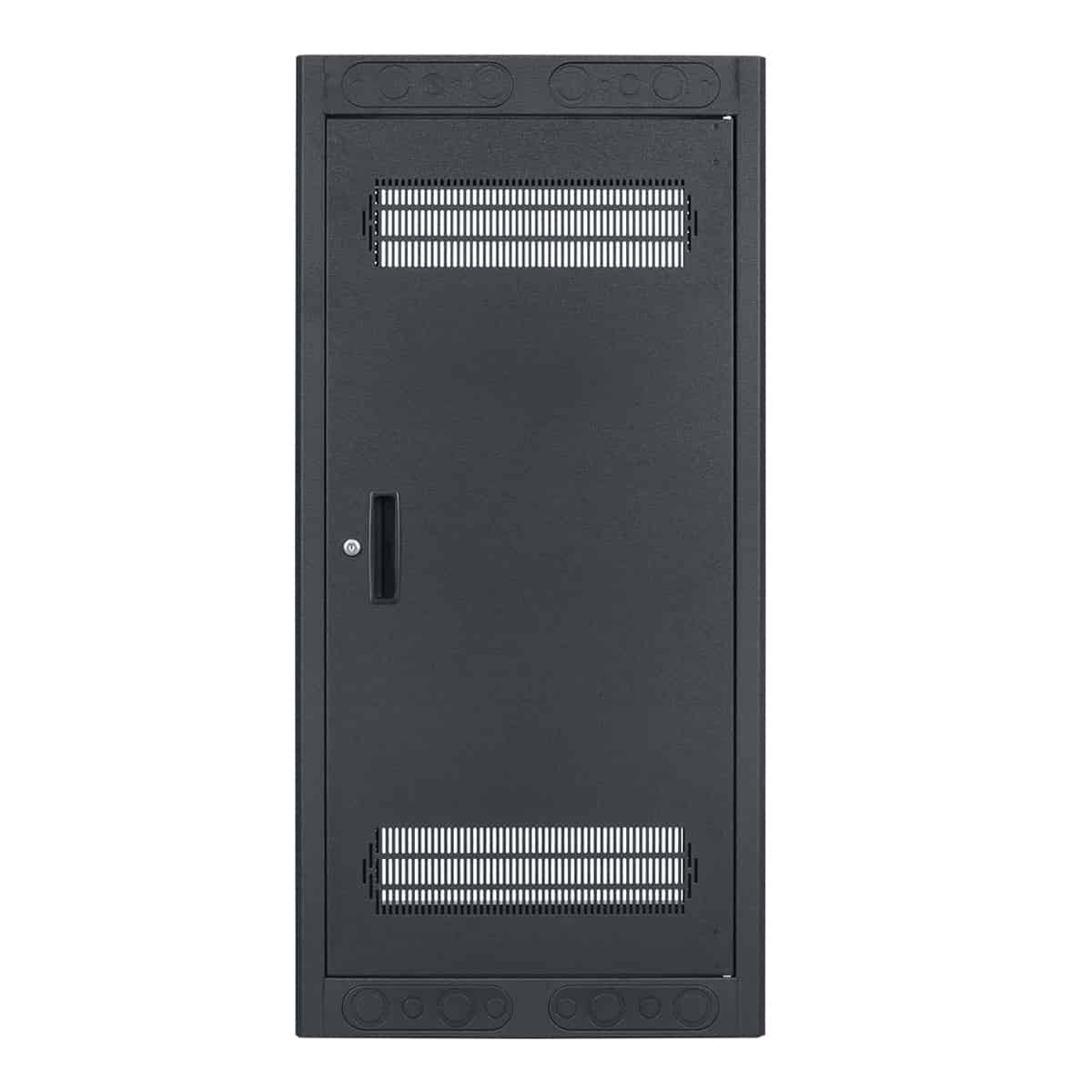

Order rack with rear door (LER-2422) or less rear door (LER-2422-LRD).
Order front door separately, as needed (see options below).
Specifications
Rack Space: 24U
Height: 48.125 in.
Width: 23.06 in.
Depth: 22.00 in. (19.34 usable)

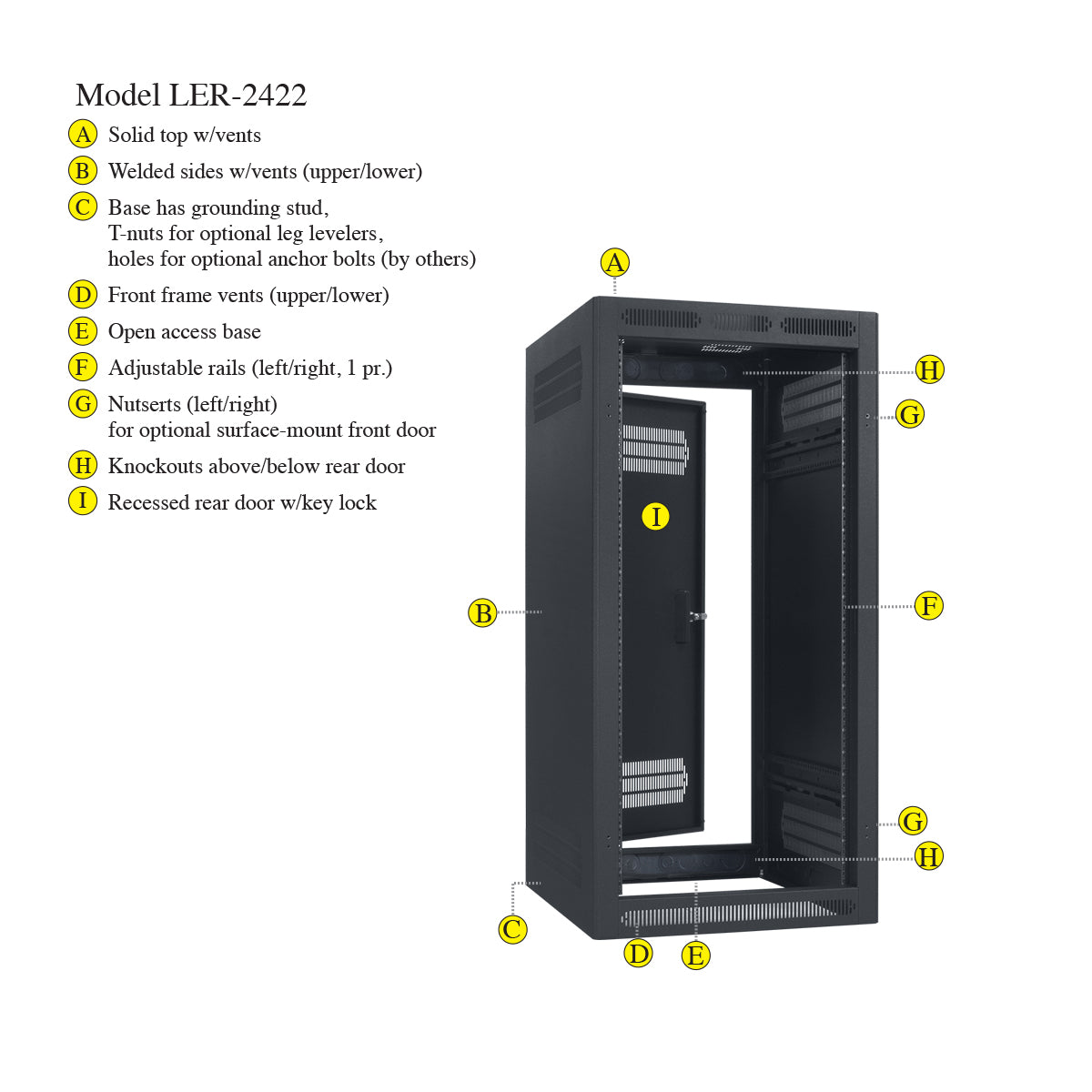

Features

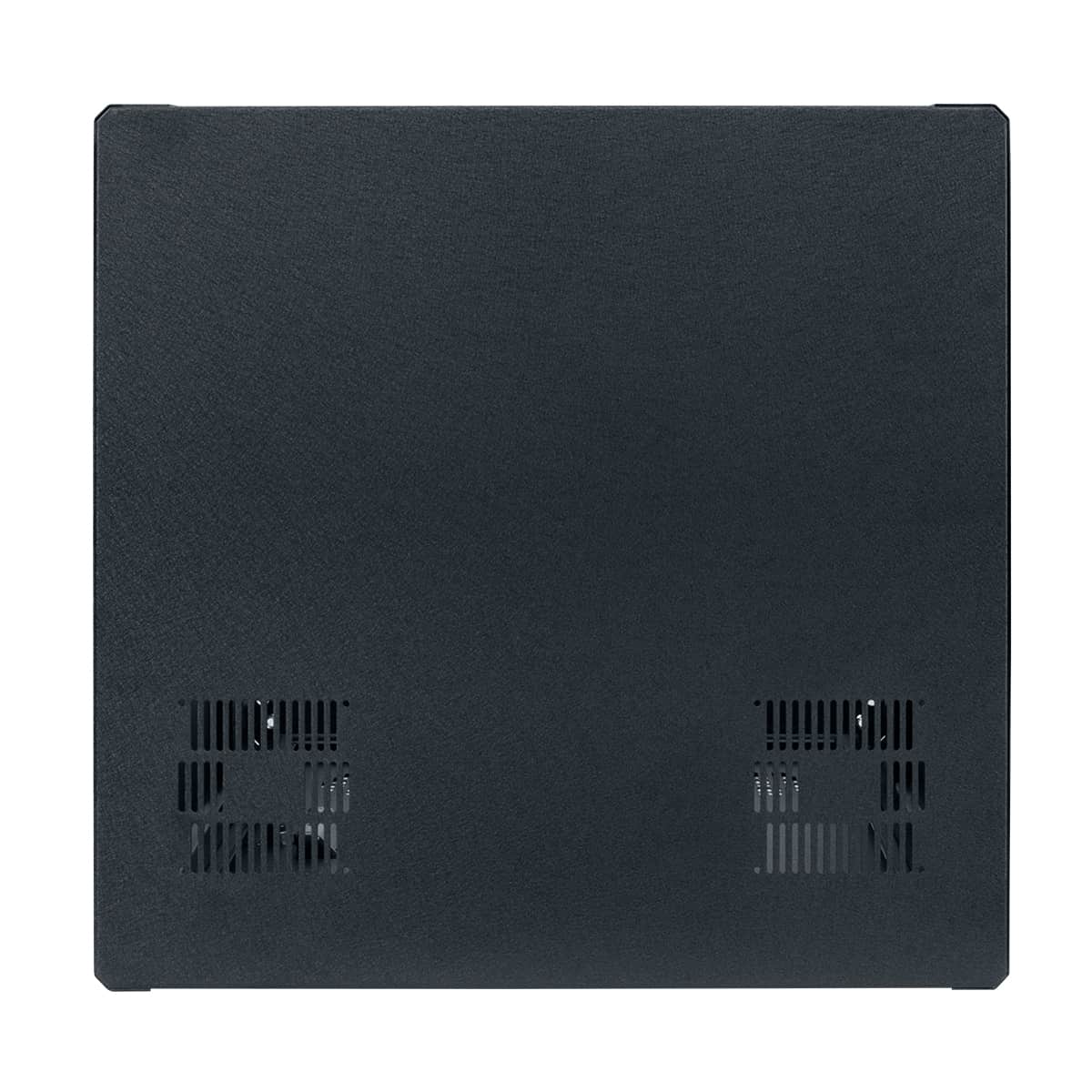

• Welded top and sides with vents

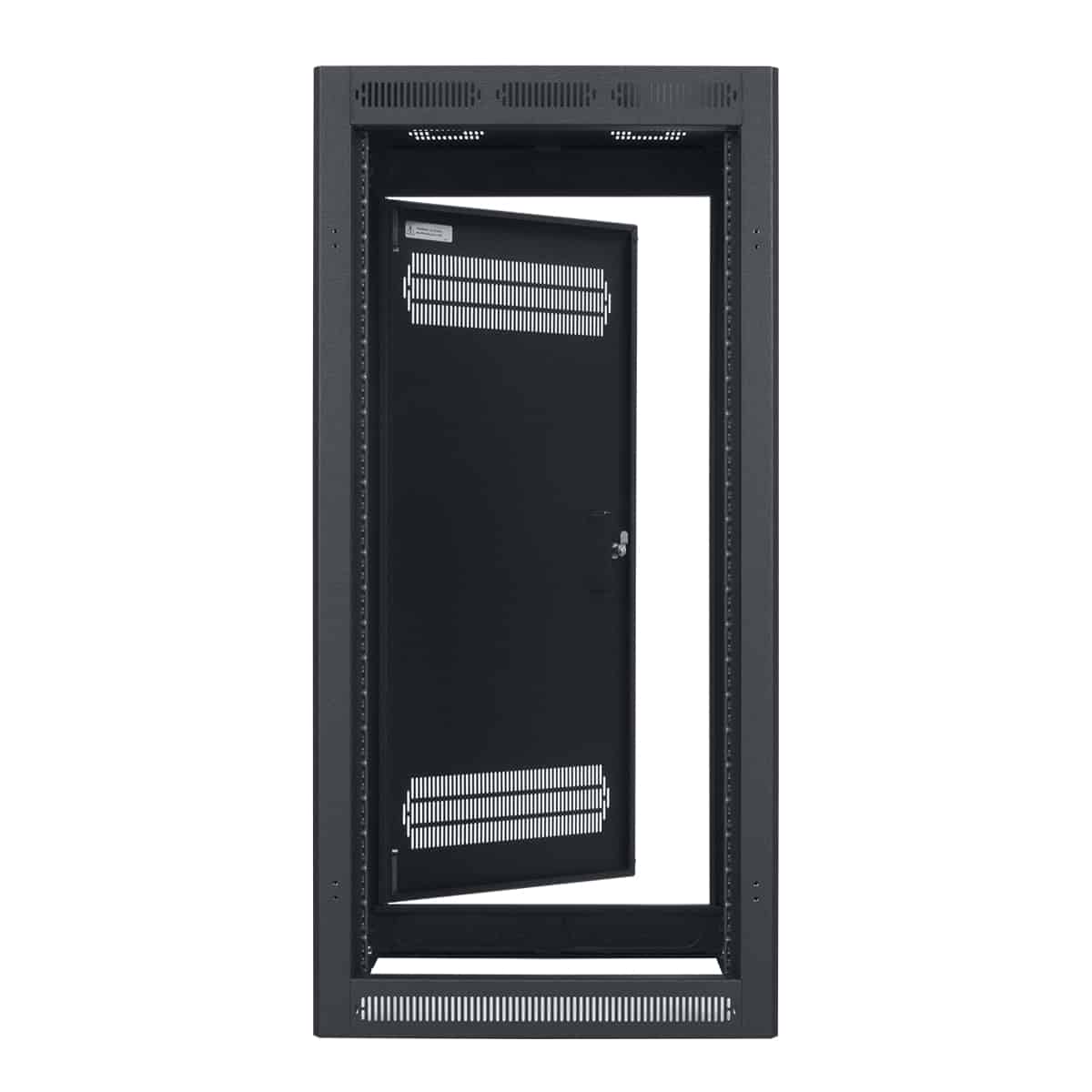

• Open front (optional door)
• Order with/without rear door
• One-pair fully adjustable rails tapped 10-32 (printed RU scale)
• Cable Management: Multiple lacing points, laser-cut knockout panels
• Pilot Point screws with captive washers
• Grounding stud
• Threaded inserts (for optional leg levelers)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 800 lbs.
Accessories (order separately)
Thermal management
Cable management
Hardware (leg levelers, grounding bar, etc.)
Front door: LFD-24 (solid) | LFD-24P (plexiglass) | LFD-24FV (full vent)
Rack rails RRD-24 (24U)
Base: LMSB-22 (22"D mobile) | LSB-22 (22"D stationary)
