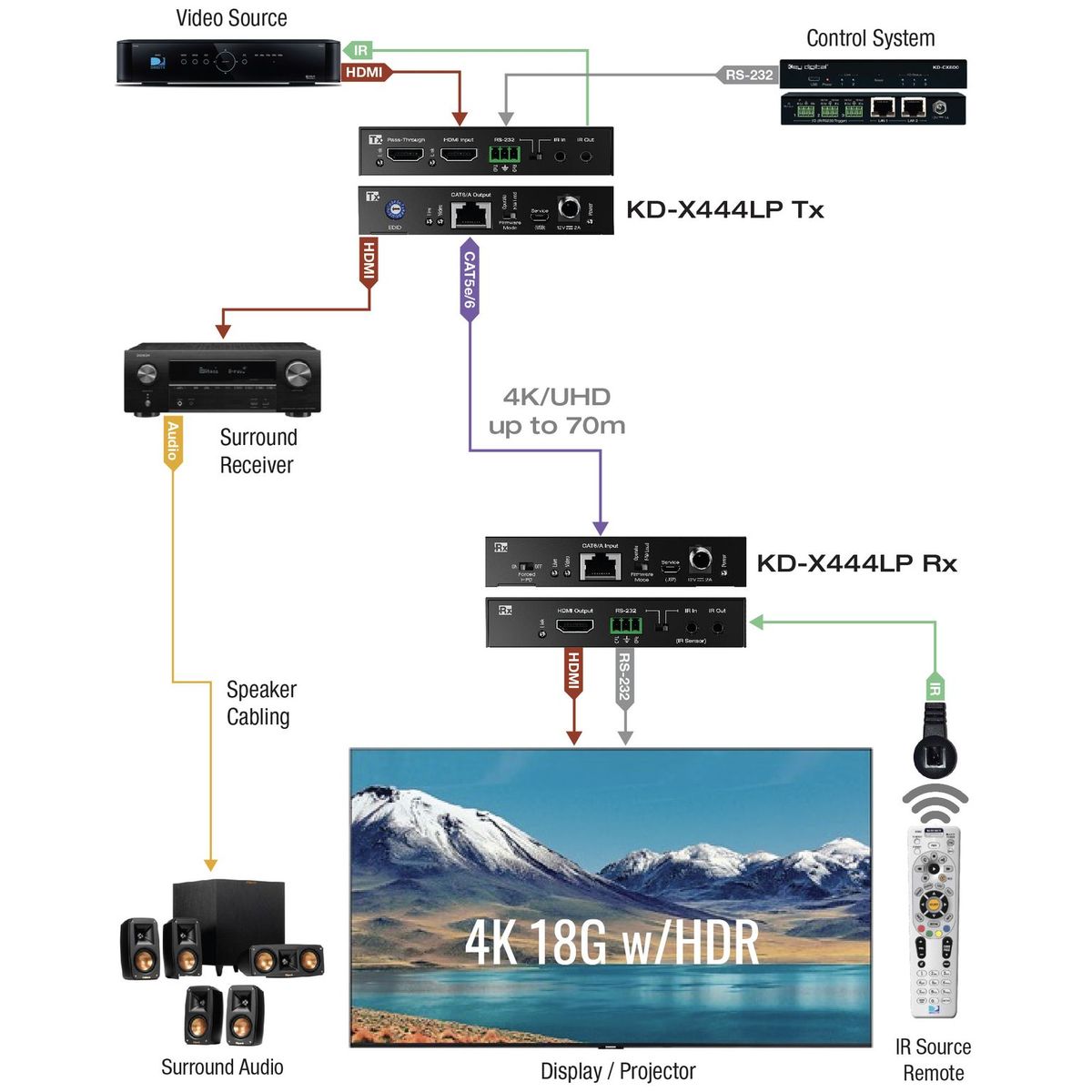

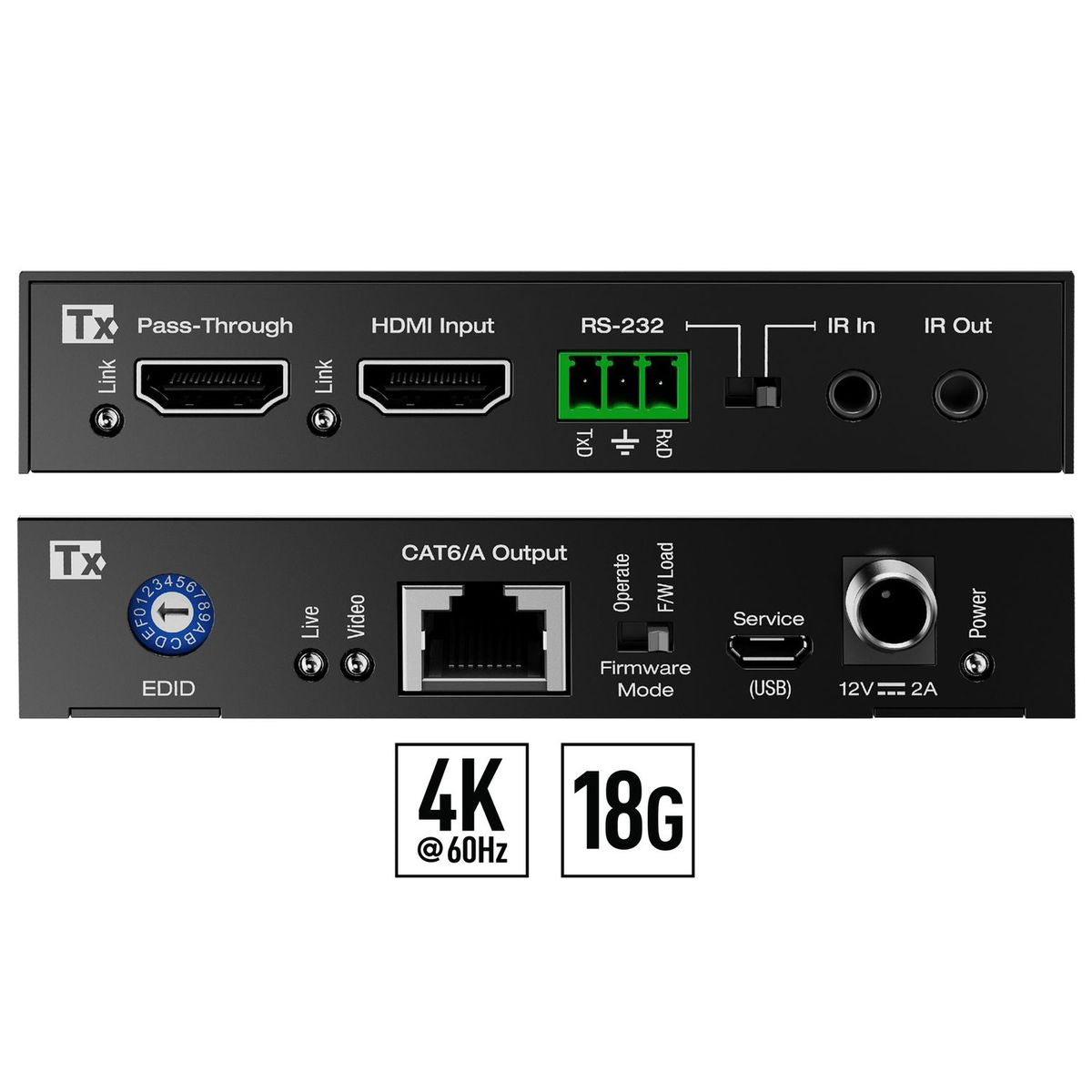

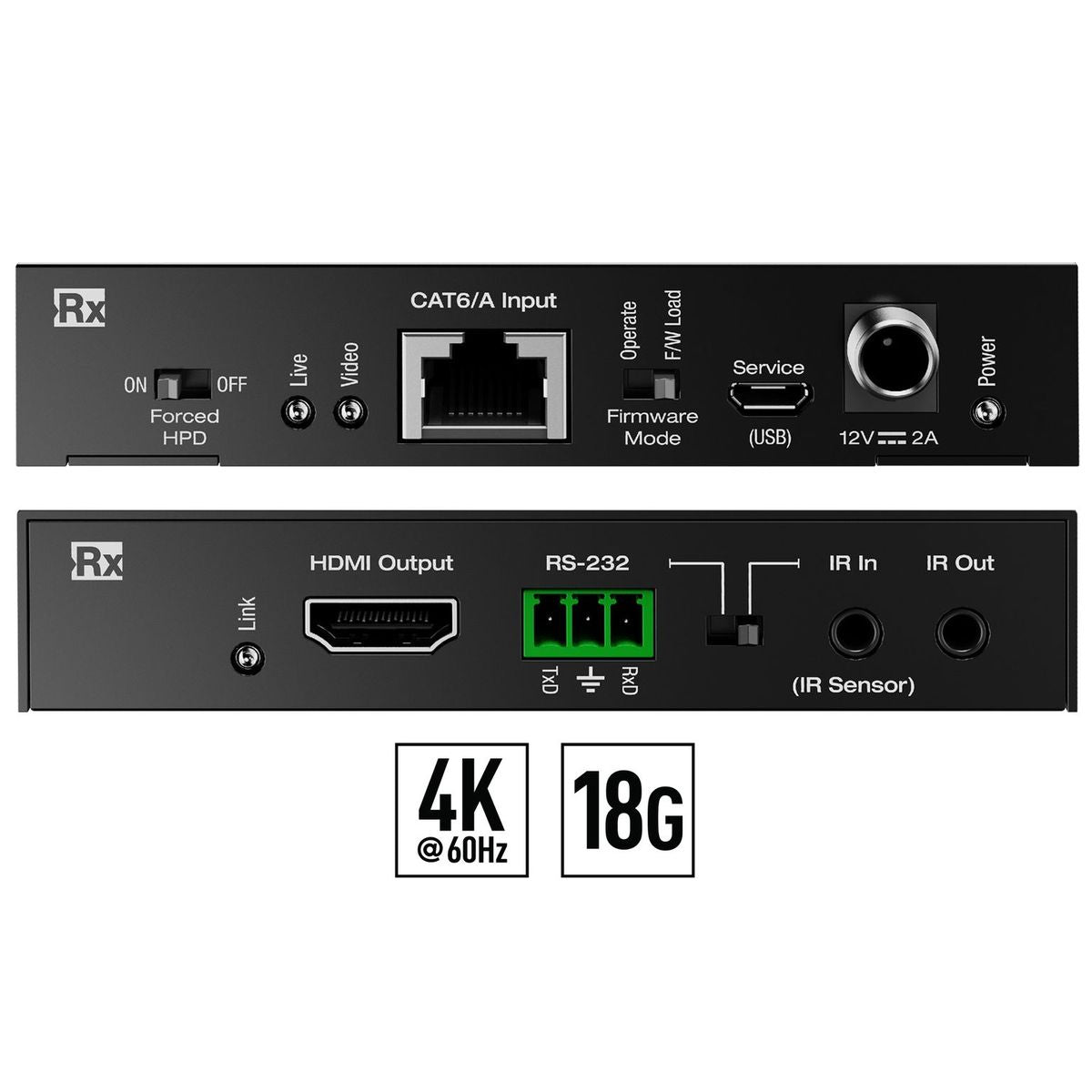

The Key Digital KD-X444LP is a 4K/UHD 18Gbps, HDCP2.2 compliant HDMI over CAT6 Transmitter plus Receiver set for extension of digital video signals with the latest standards in resolution, HDR, and Chroma over a single CAT cable. The Transmit unit features an HDMI pass-thru port for integration with local monitors or AV Receivers. In addition to HDMI AV, KD-X444LP carries IR or RS-232 for controlling remotely located equipment. An IR sensor and IR emitter are included, and the Tx unit’s IR Input port supports Serial IR input directly from a control system/IR block. With Power over CAT (PoC), only one power supply is needed, and it may be connected at either unit for ease of installation. KD-X444LP features Key Digital’s proprietary Full Buffer Technology software suite, with EDID handshake management, fixed hot plug detection, HDCP authentication to the connected source, and TMDS signal reclocking for installation with long cabling or many connectivity layers.
Features
• Extends 4K 18Gbps signals up to 230ft/70m
• Supports 4K/18Gbps HDR HDMI signals, HDCP 2.2, Dolby/DTS-HD 5.1

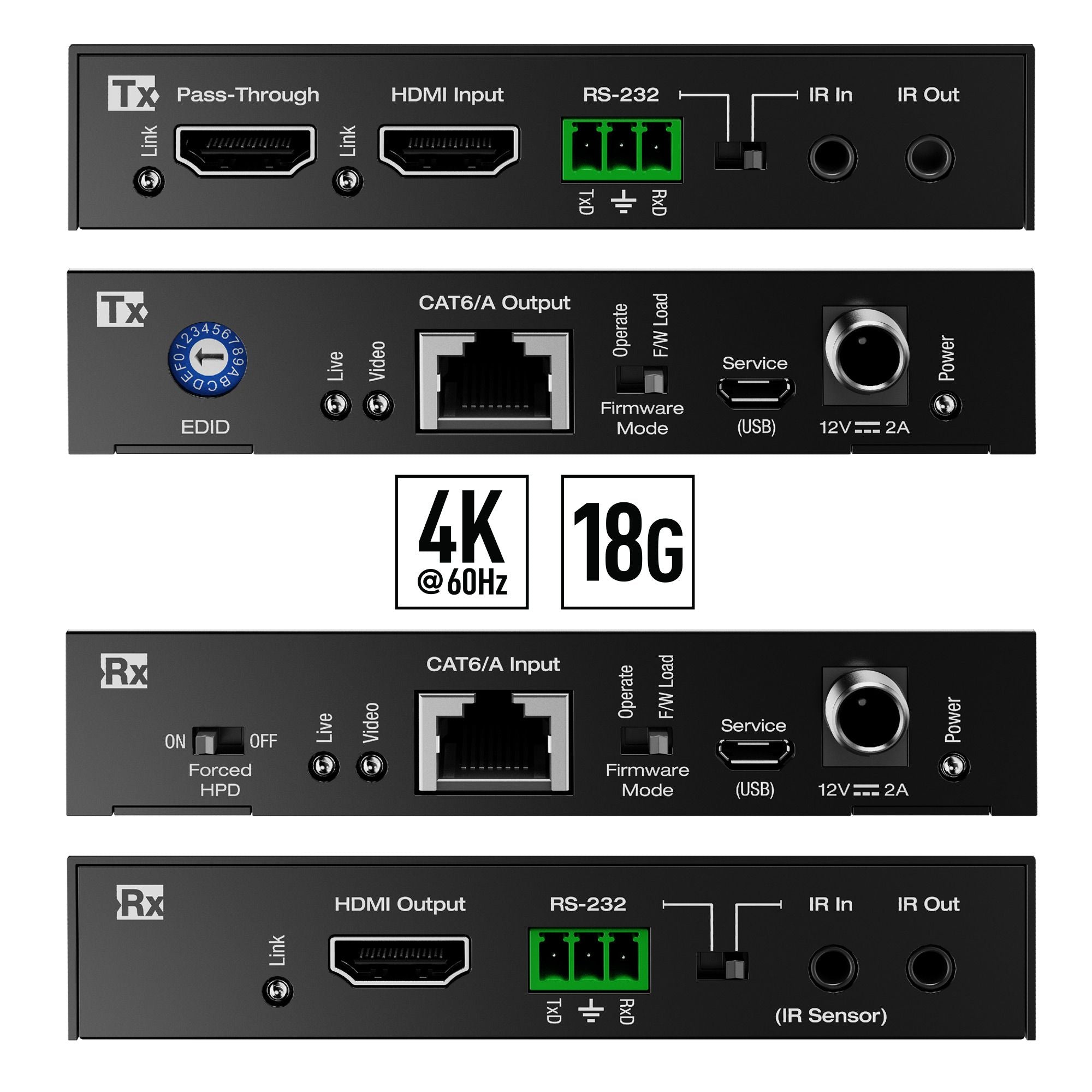

• Kit includes a transmitter, receiver, power supply, IR emitter, and IR sensor
• Only requires a power supply on one unit
