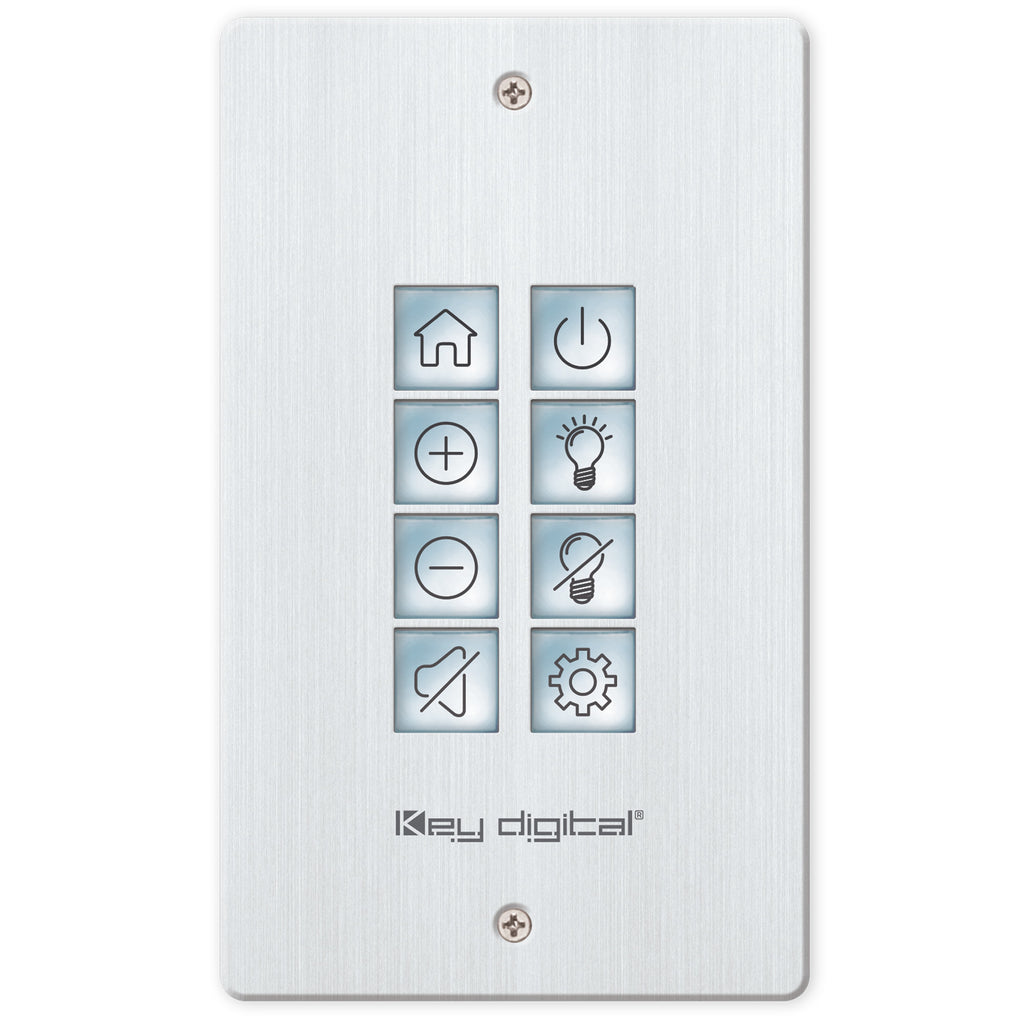

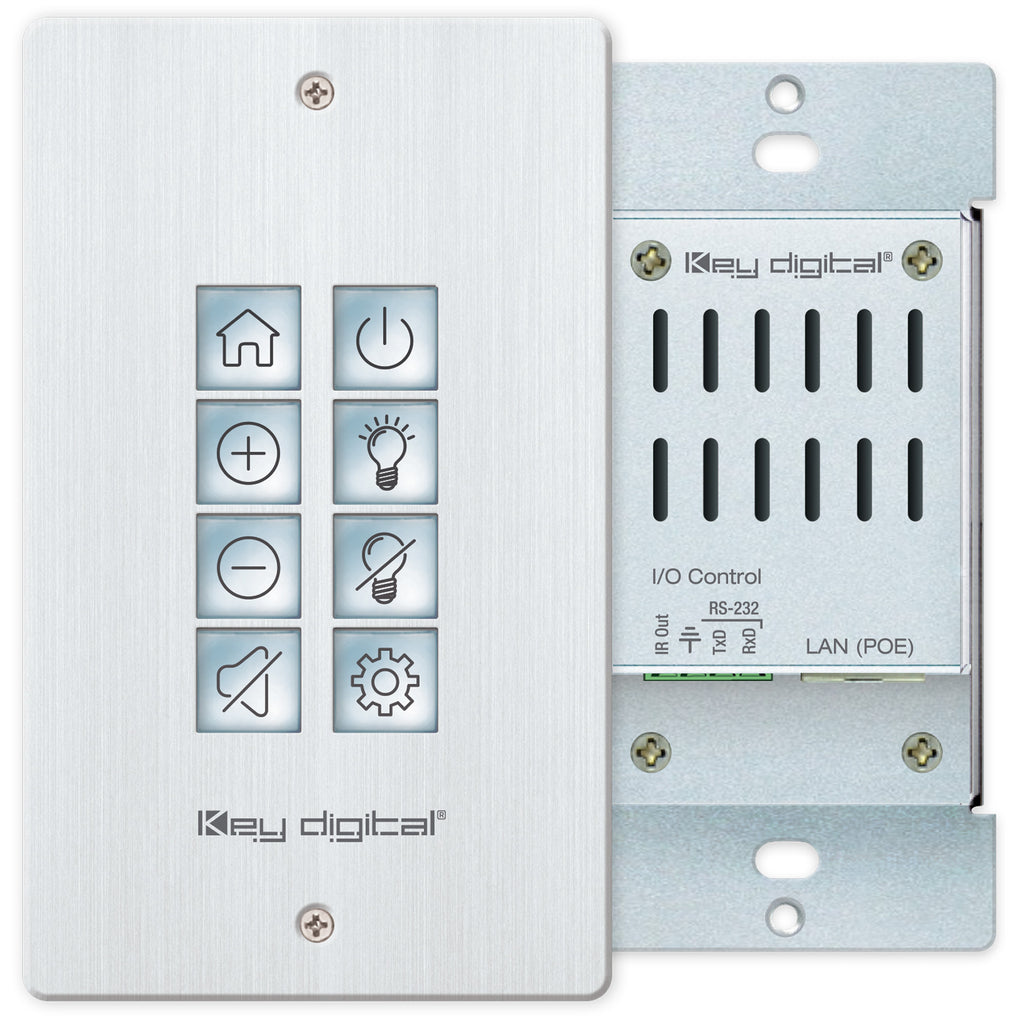

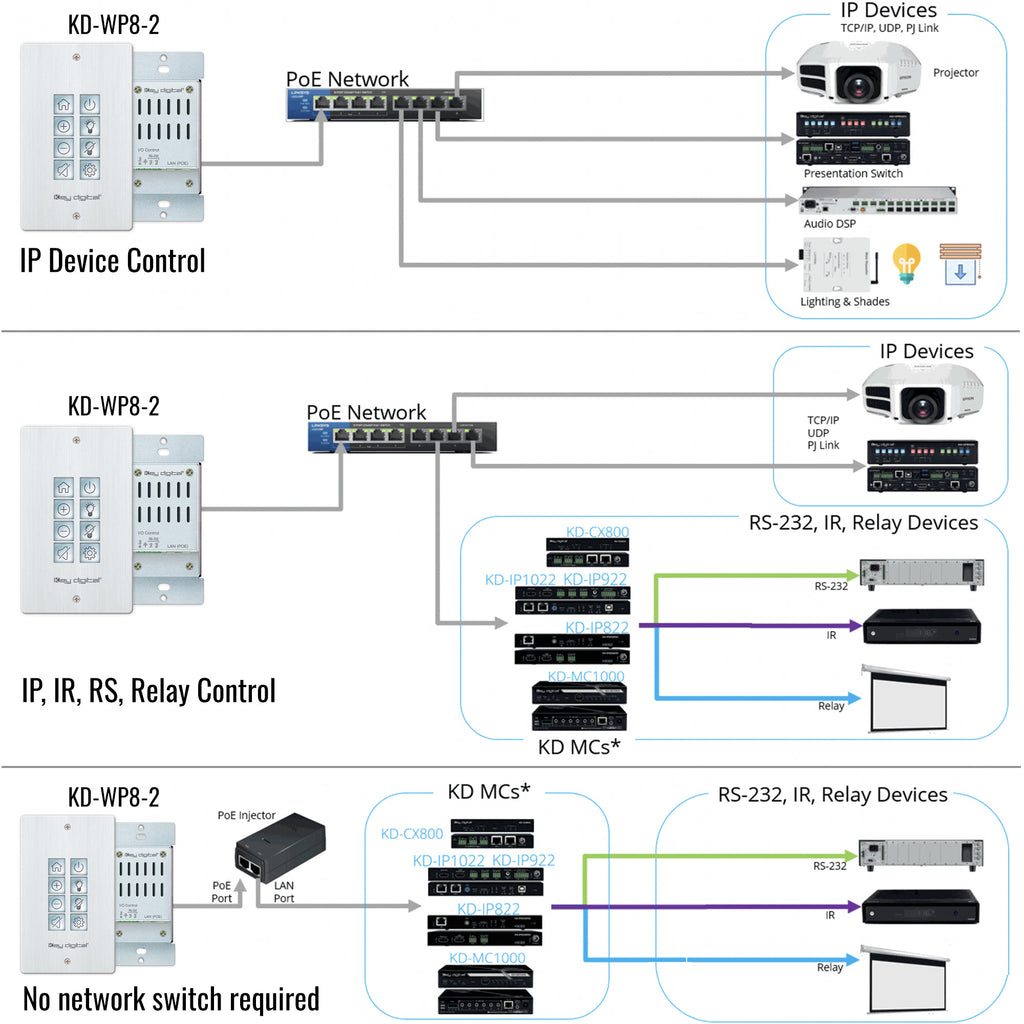

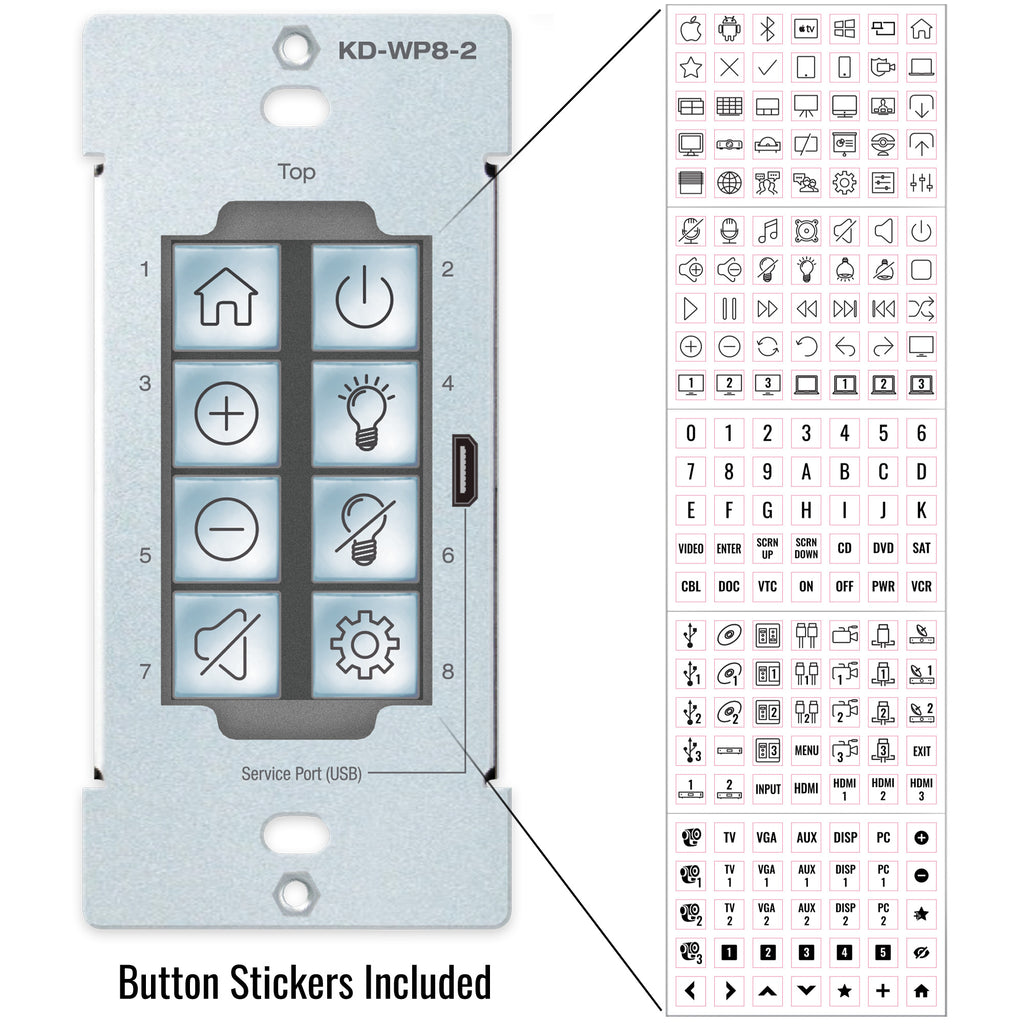

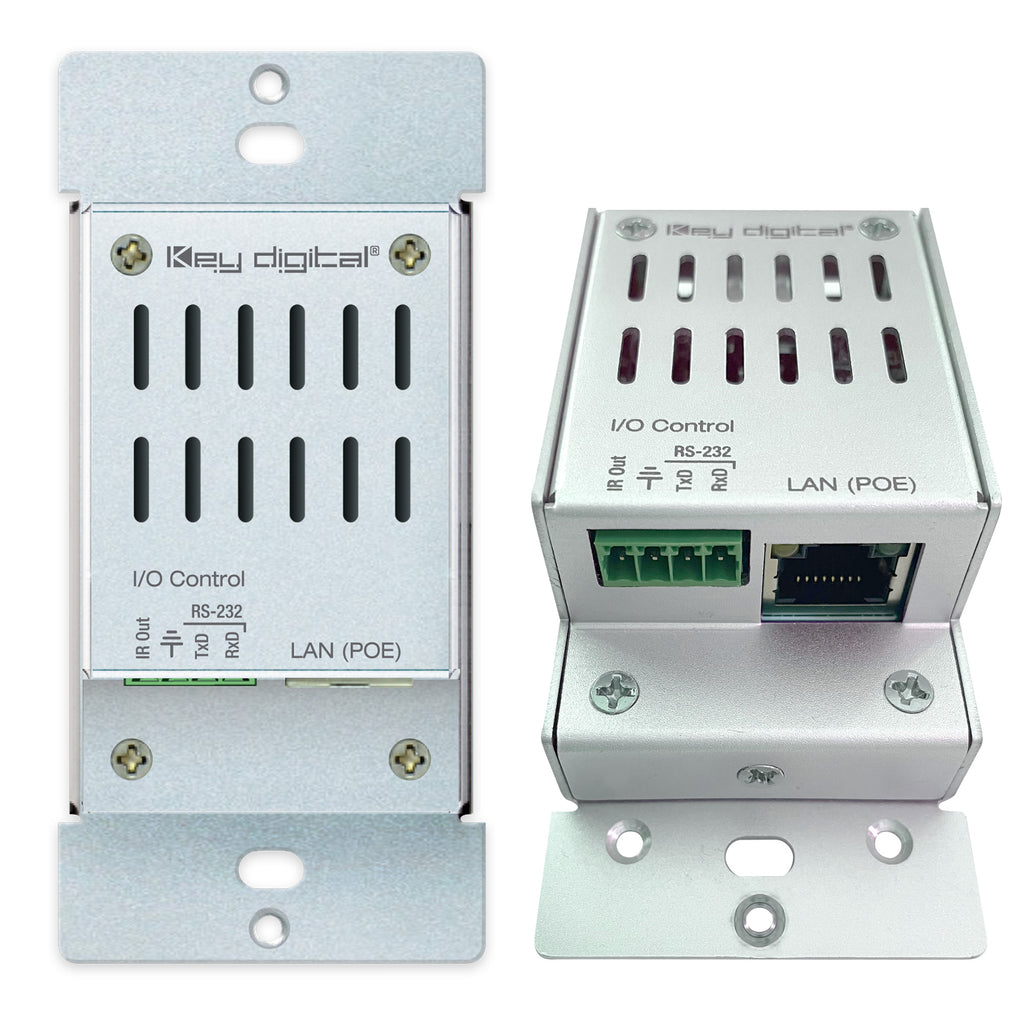

The Key Digital KD-WP8-2 is an eight-button control keypad that fits into a single-gang wall box and is PoE powered. KD-WP8-2 is easily programmed via web GUI to send commands over the network to IP controlled devices directly or RS-232 and IR devices via the built-in control port. KD-WP8-2 may also be integrated with Key Digital Master Controllers to control additional IR, RS-232 and voltage relay devices. Button events may be configured on the press, release, toggle, or press & hold action as desired. Along with selectable blue or red backlighting, KD-WP8-2 includes multiple transparent icon sheets that are simply inserted beneath detachable transparent button caps for a modern and professional appearance.
The keypad supports key combo lock & unlock and virtual keypad via password protected web UI, Key Digital Management PC Software, and KD-App. Completed project files may be exported and imported for valuable programming time reduction and straightforward rollout of multiple keypads installations. KD-WP8-2’s simplistic open API makes for easy two-way integration with professional control systems and Key Digital’s Compass Control Pro.
Features
• Programmed via web UI on any device
• PoE power for ease of installation
• Controls IP devices by sending commands over network
• Add Key Digital Master Controllers for IR, RS-232 or voltage control
