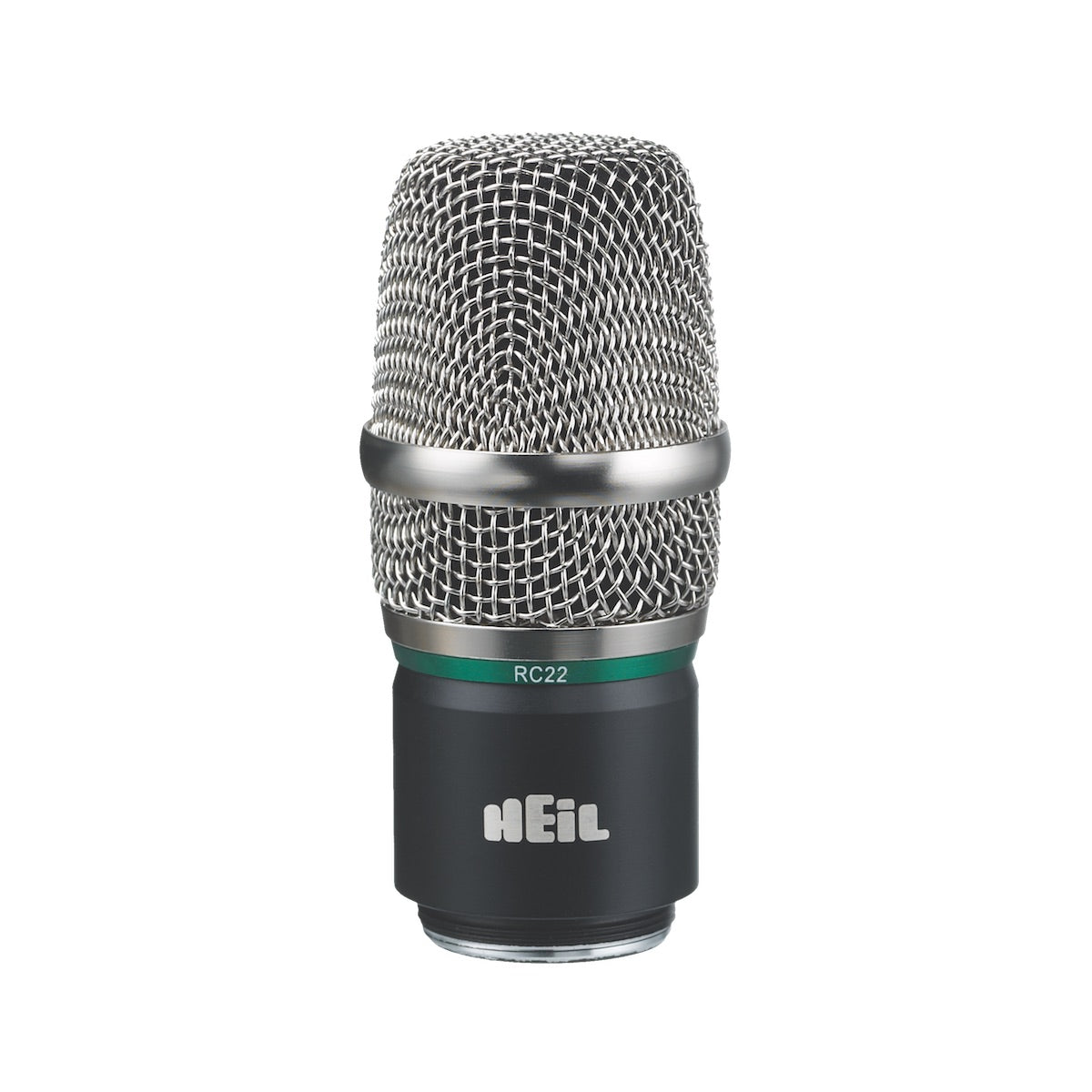

The Heil RC 22 Replacement Capsule contains the dynamic element of the PR 22 producing much better articulation with high rejection from the sides and rear.
The Heil replacement capsules are interchangeable with any of the screw on type hand held transmitters that receive a 31.3mm/pitch 1.0mm. Some hand held transmitters have a .035 inch hexagonal-head set screw to secure the microphone capsule. If your transmitter has that, loosen the set screw in the handle of the microphone-transmitter before attempting to unscrew the original capsule.
Holding the bottom of the transmitter simply unscrew the original capsule turning it counterclockwise. Carefully remove. The three conductor contact board disconnects the contacts. Avoid touching or damaging the gold plated contacts on the transmitter or the contact board.
Screw your new Heil RC Capsule onto the transmitter handle and tighten.

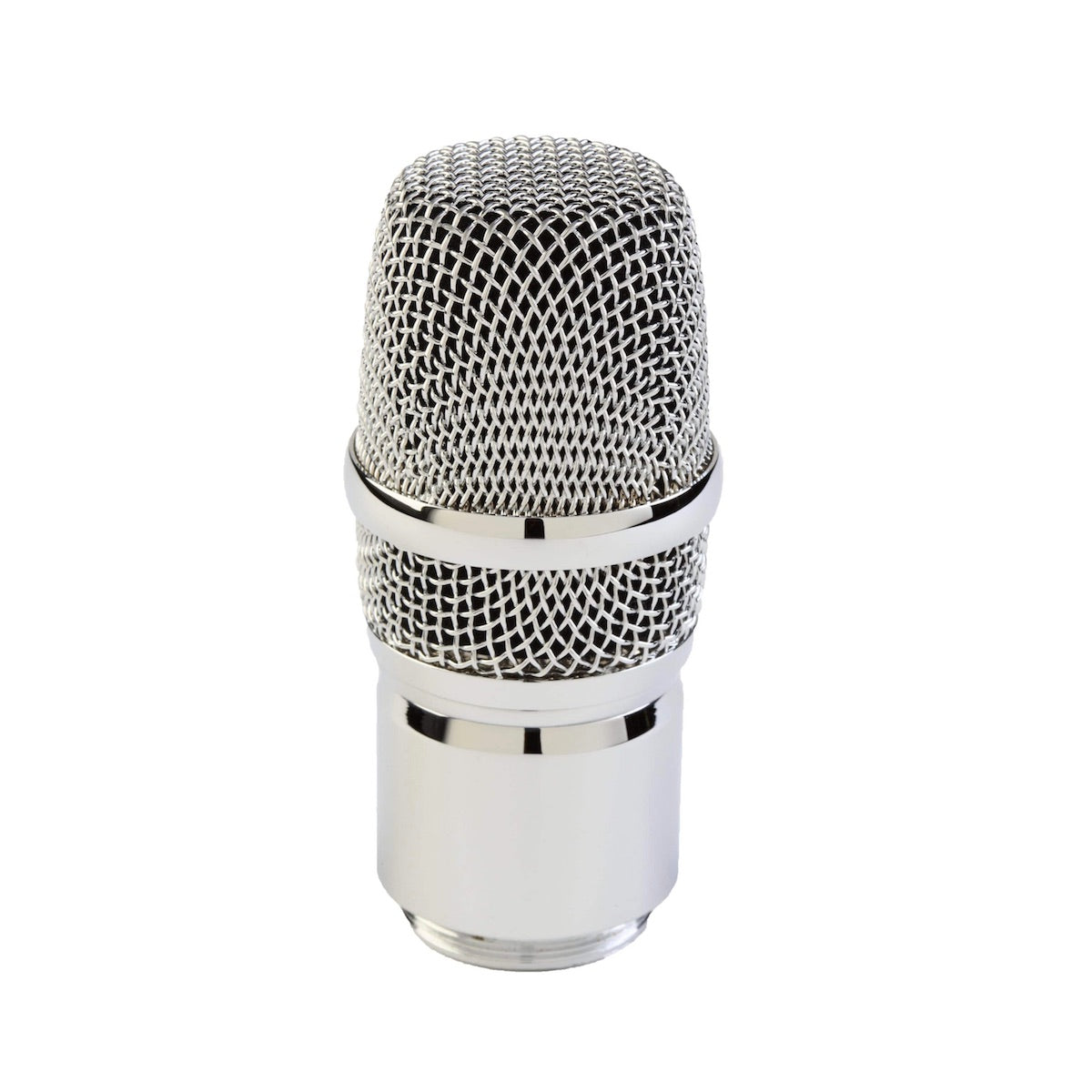

The Heil RC 22 replacement capsule comes to you with three screens. They are all acoustically identical but give you a choice of the 'look' of your new Heil microphone capsule. Black, nickel or Gold - your choice.
This is a product of Heil Sound, Ltd. Microphones utilizing a Heil replacement capsule are subject to performance variations from the original product. This product has not been endorsed or approved by the original manufacturer and the product may not fall within the original manufacturer's warranty. Shure and Quietspot are registered trademarks of Shure Incorporated. Heil Sound, Ltd. is not affiliated with or authorized by Shure Incorporated.
CONSUMER ALERT
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
