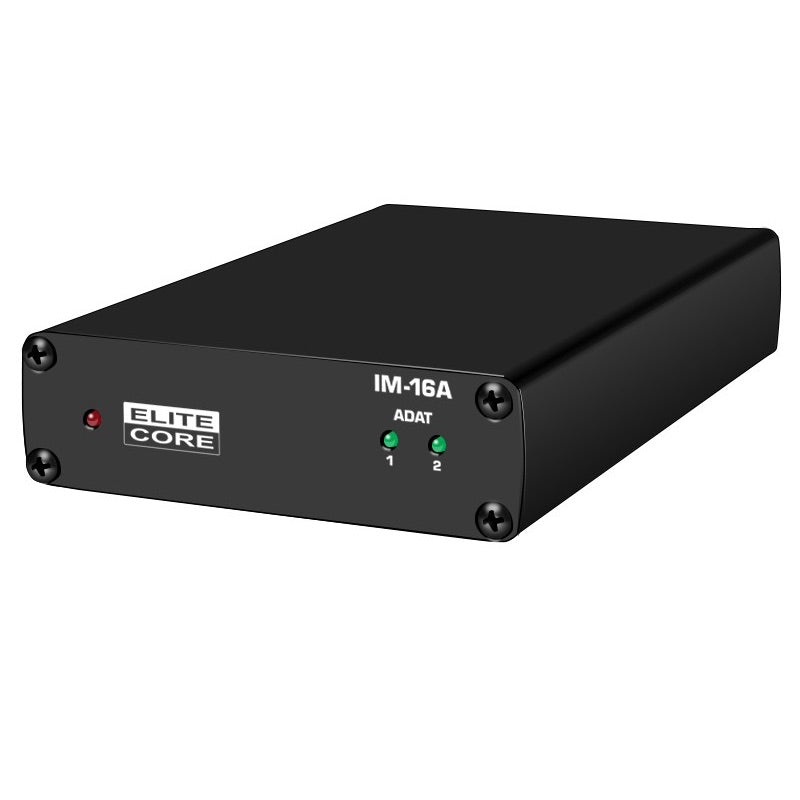

The Elite Core IM-16A is a 16-channel ADAT to PM-16 Interface. Use the IM-16A to convert signals from ADAT optical sources such as mixing consoles, microphone preamps, Analog to Digital converters, and DAW interfaces. The data received by the two 8 channel ADAT optical inputs are combined and sent to the audio network as a single 16 channel Elite Core PM-16 data stream.
• 2 x ADAT Optical Inputs
• RJ45 Network Out feeds PM-16 Systems
• Word Clock Sync
• Rugged aluminum chassis with black anodized finish
• Power from external 48VDC supply or PoE (802.3af)
• Dimensions: 1/2 x 4.06 x 6.64 inches
• Made in the USA
