Aviom SB4 - System Bridge to combine up to 4 synchronous A-Net streams

The Aviom SB4 System Bridge can be used to combine up to four Pro16 or Pro16e A-Net streams onto a single Cat-5 cable. For personal mixing systems, the SB4 allows digital console users to combine up to four synchronous A-Net streams and send that data to a D800 or D800-Dante A-Net Distributor for use with A360 Personal Mixers.

For digital snake applications, one SB4 System Bridge is used at each end of a main run to either combine or separate up to four individual 16-channel A-Net streams. A single Cat-5e cable connects between the A-Net Bridge ports on the front panel of each SB4, carrying up to 64 channels on a single cable. This simplifies the setup and transport of high channel count digital snakes.

The SB4 supports the following digital snake configurations: 64x0, 48X16, 32x32 or smaller. All Cat-5e connections feature heavy-duty locking Neutrik EtherCon connectors.

Features
• Combines up to 4 synchronous A-Net streams from digital consoles

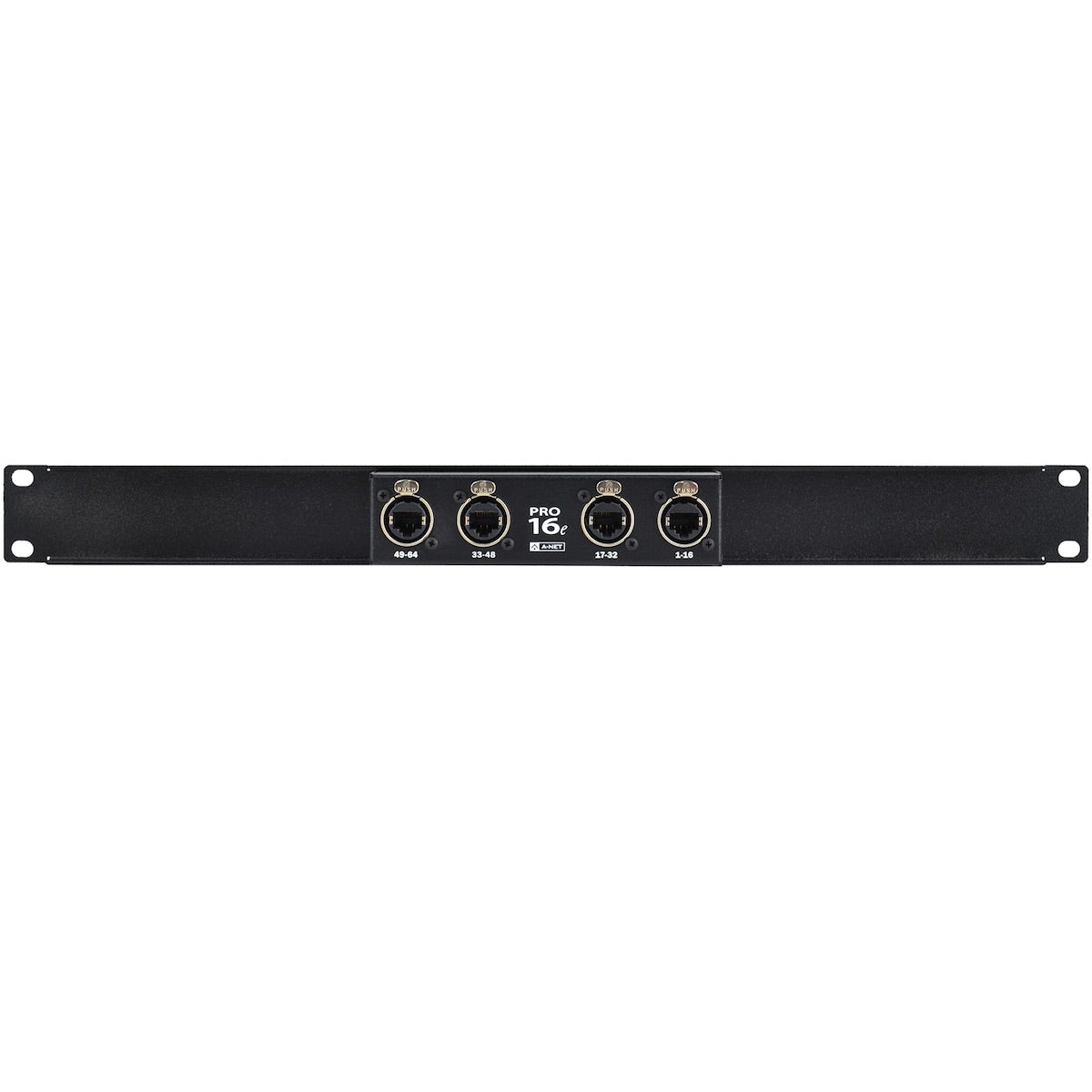

• Rear Panel: Four Neutrik EtherCon connectors (16 channels each)

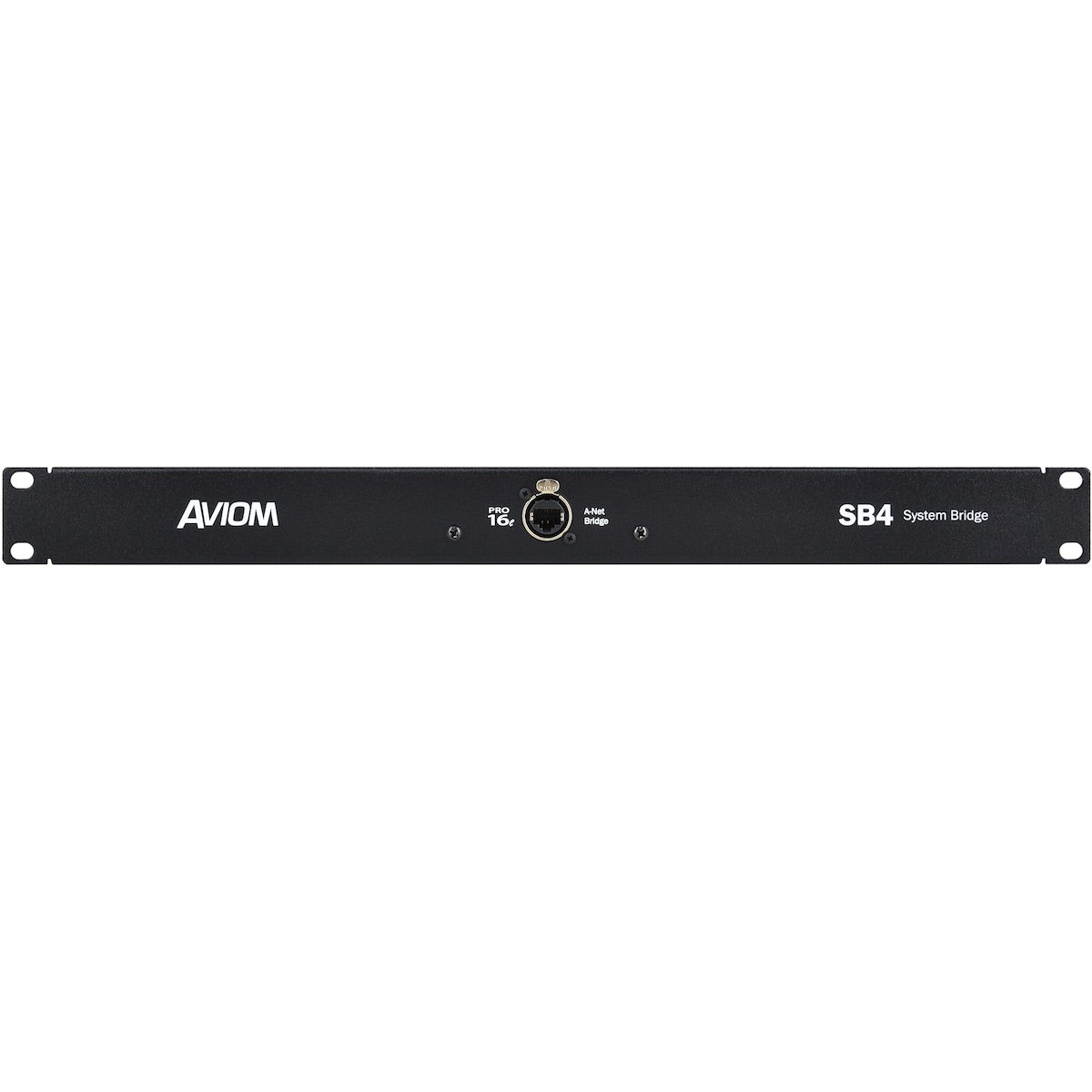

• Front Panel: One Neutrik EtherCon connector for A-Net Bridge output (up to 64 channels)
• Requires no power supply
• Multiple units can be used to create digital snake systems
