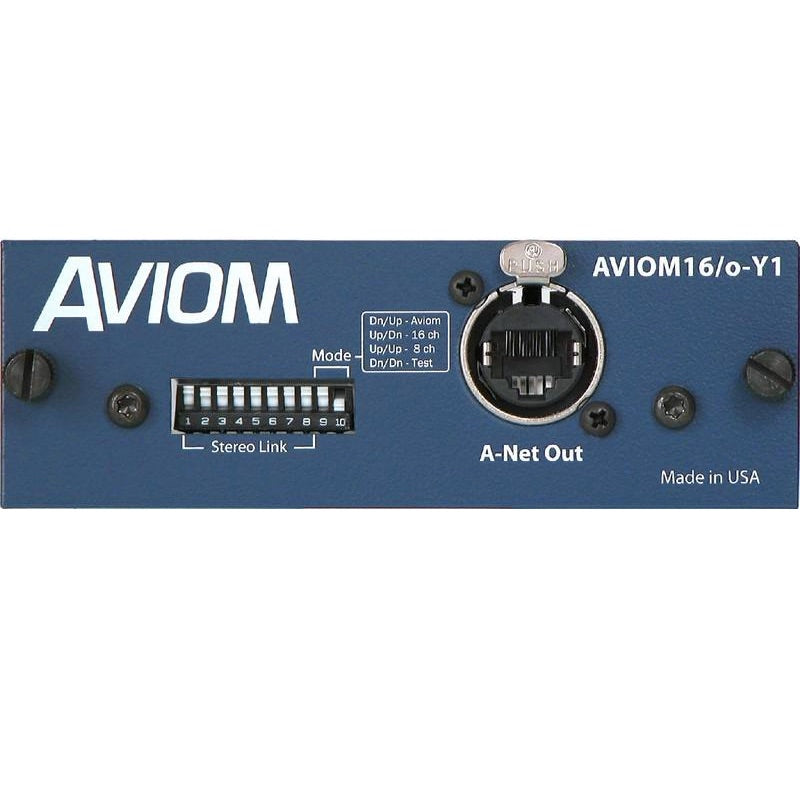

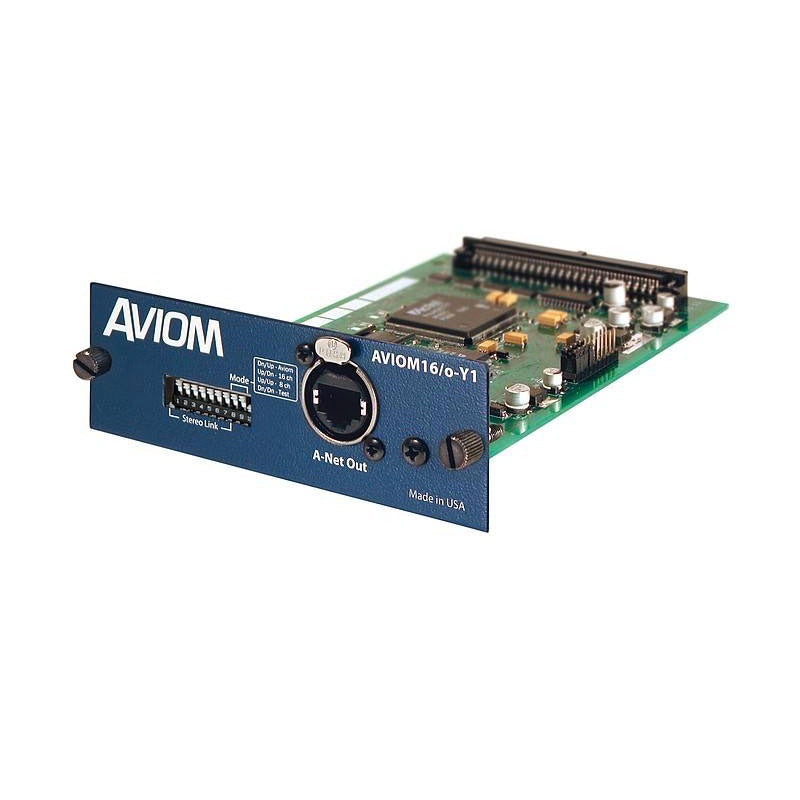

The Aviom16/o-Y1 A-Net Card eliminates the need for an analog input module, providing a direct digital interface between Yamaha digital products and Aviom's Pro16 Series, including the A-16II and A-16R Personal Mixers.
The Y1 card fits into any available expansion slot and is compatible with all Yamaha consoles and mix engines which support the Mini-YGDAI format, including: 01V96, 02R96, DM1000, DM2000, PM5D, PM1D (8-channel mode only), M7CL, DME64N, DME24N, DSP5D, LS9-16, and LS9-32.
Configuration of an Aviom monitoring system can be done digitally from the Yamaha console's user interface. DIP switches are provided for stereo link configuration of each channel pair. MY8 and MY16 mode switches on the Y1 allow the A-Net card to be used with Yamaha digital mixers that support only 8- channel expansion cards, such as the PM1D.
The Y1 card is also compatible with AV-P2 and AN-16/o Output Modules and the A-16D and A-16D Pro A-Net Distributors.
As with all Pro16 Series products, Cat-5e cable lengths of up to 500 feet (150 meters) are possible between devices.
Features
• Mini-YGDAI format (supported by most current Yamaha digital consoles)
• One 16-channel A-Net output
• Supports sample rates from 44.1kHz to 48kHz, +/-1
• Assign audio outputs directly from Yamaha interface
• Channel Link DIP switches for stereo operation
• Mode select switch for 16-channel or 8-channel operation (required for PM1D)
Note: The original A-16 Personal Mixer (discontinued) is not compatible with the Y1 A-Net card. Some early A-16R Personal Mixers built prior to the release of the Y1 card are also not compatible. Contact Customer Service for additional compatibility info.
