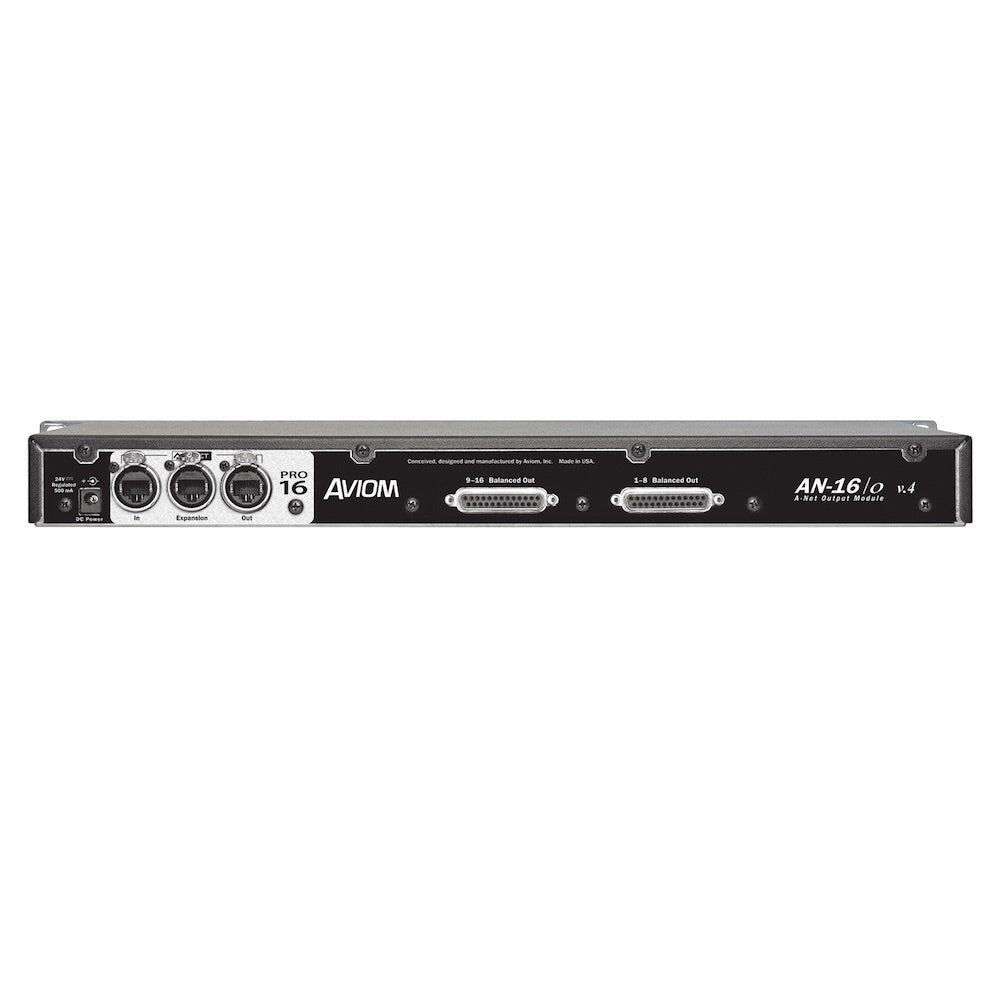

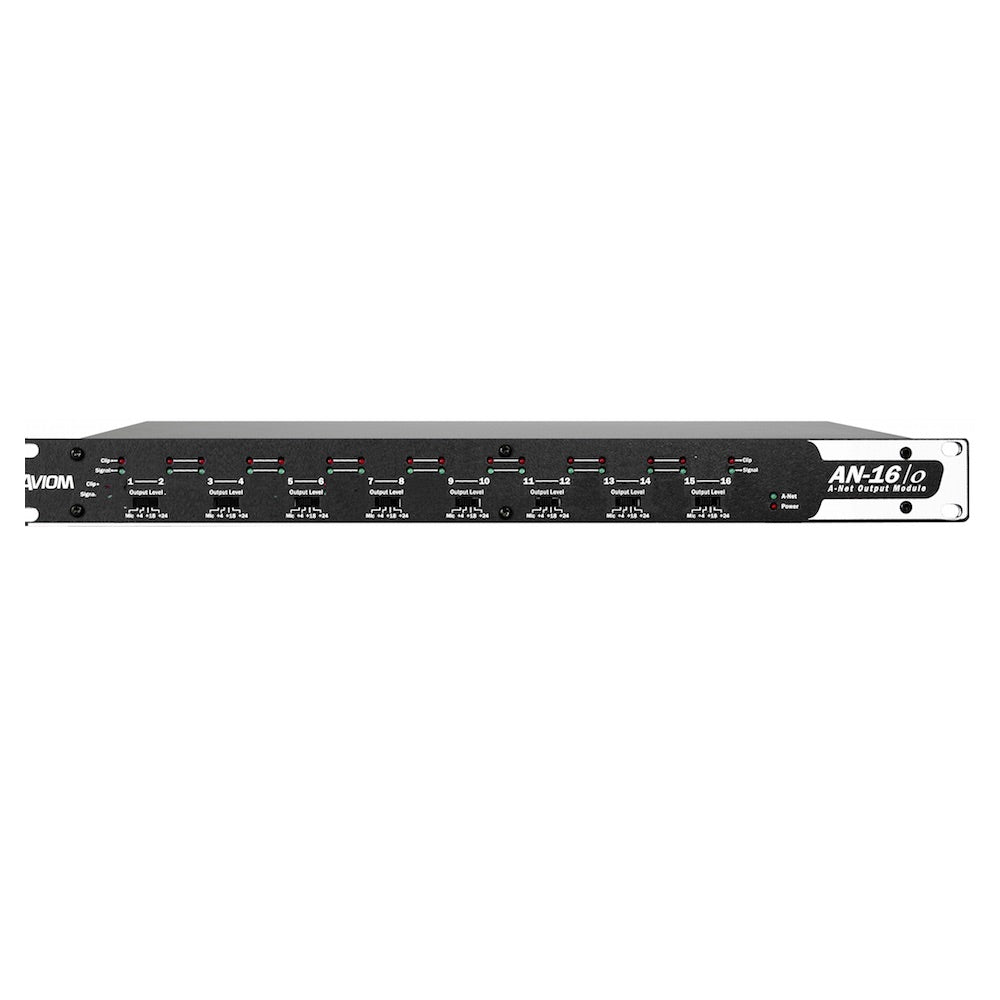

The Aviom AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced TRS line-level analog outputs. Five output levels, from mic to +24dBu, are available to easily accommodate the level requirements of the gear its output signals are being connected to.
Use the AN-16/o v.4 anywhere analog outputs are required: on stage or at FOH in a digital snake, in the studio, for a recording split, or in even the most complex audio networks. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.
Compatibility Note: AN-16/o v.4 Output Modules with serial numbers 51162 and lower are compatible with only Pro16 A-Net and not Pro16e A-Net. The Pro16e version of A-Net is used by the AN-16/i v.2 as well as the D800 and D400 series of A-Net Distributors.
• 16 balanced mic- or line-level outputs
• Four-position output level switch per channel pair
• +24, +18, and +4dBu line-level, or mic-level outputs
• 48kHz, 24-bit D/A converters
• Unlimited splits and digital copies
