The RGBlink mini-max 4K All-in-One Video Switcher elevates the mini-series legacy with true 4K operation. It expands upon the mini-edge models with two added 12G-SDI inputs, supporting 4K output, recording, and streaming in one compact unit. A 5.5-inch touchscreen offers multi-view monitoring and menu control, complemented by physical buttons for flexible operation.
With four HDMI 2.0 and two 12G-SDI inputs, plus support for UVC and NDI sources, it connects seamlessly to a wide range of devices. Dual HDMI outputs allow multi-view or test patterns, and the USB 3.0 port serves as a UVC webcam for direct streaming. Integrated TAO Cloud and Web App support enable remote management and multi-platform broadcasting.
Despite its small size, the mini-max delivers pro features including dynamic output control, audio noise reduction, and PTZ camera control—making it ideal for both live production and remote workflows.
Features

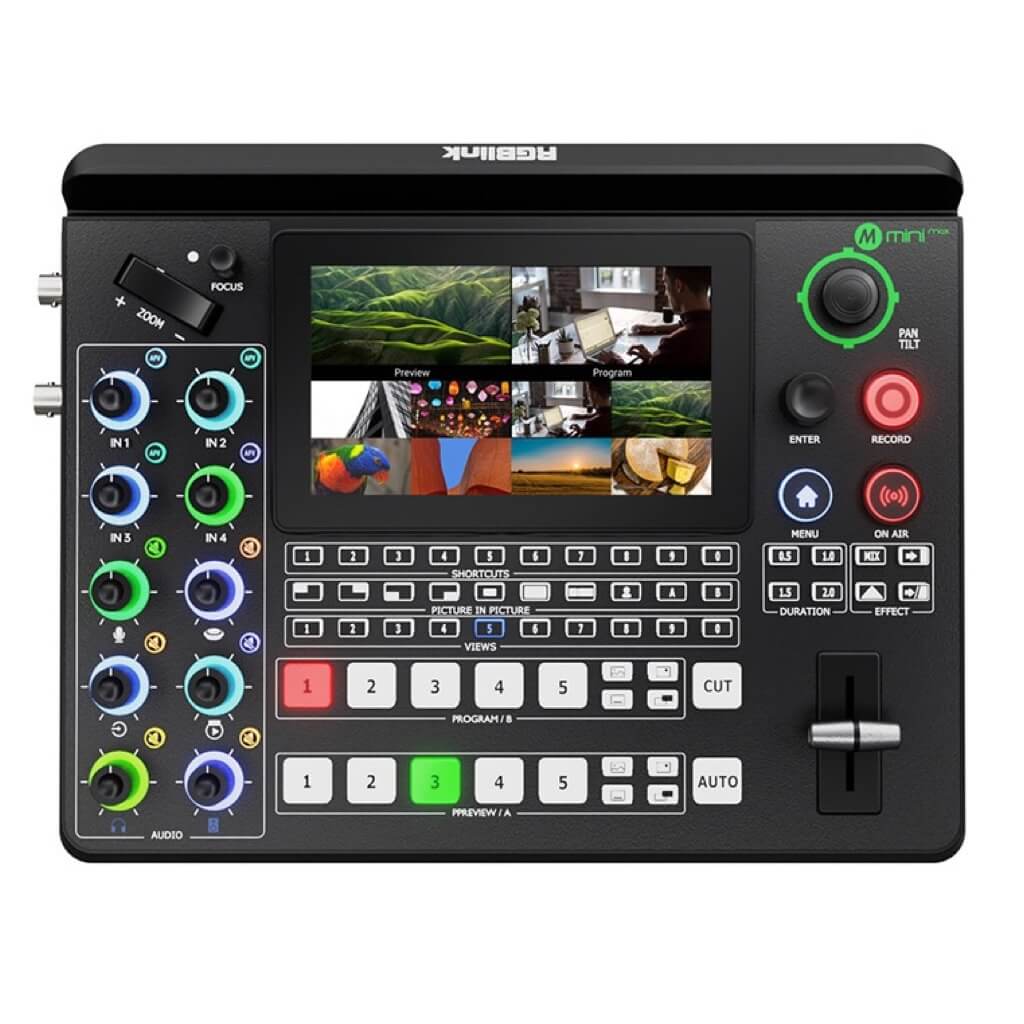

• 5.5-inch touchscreen for icon menu control, preview, and working status display

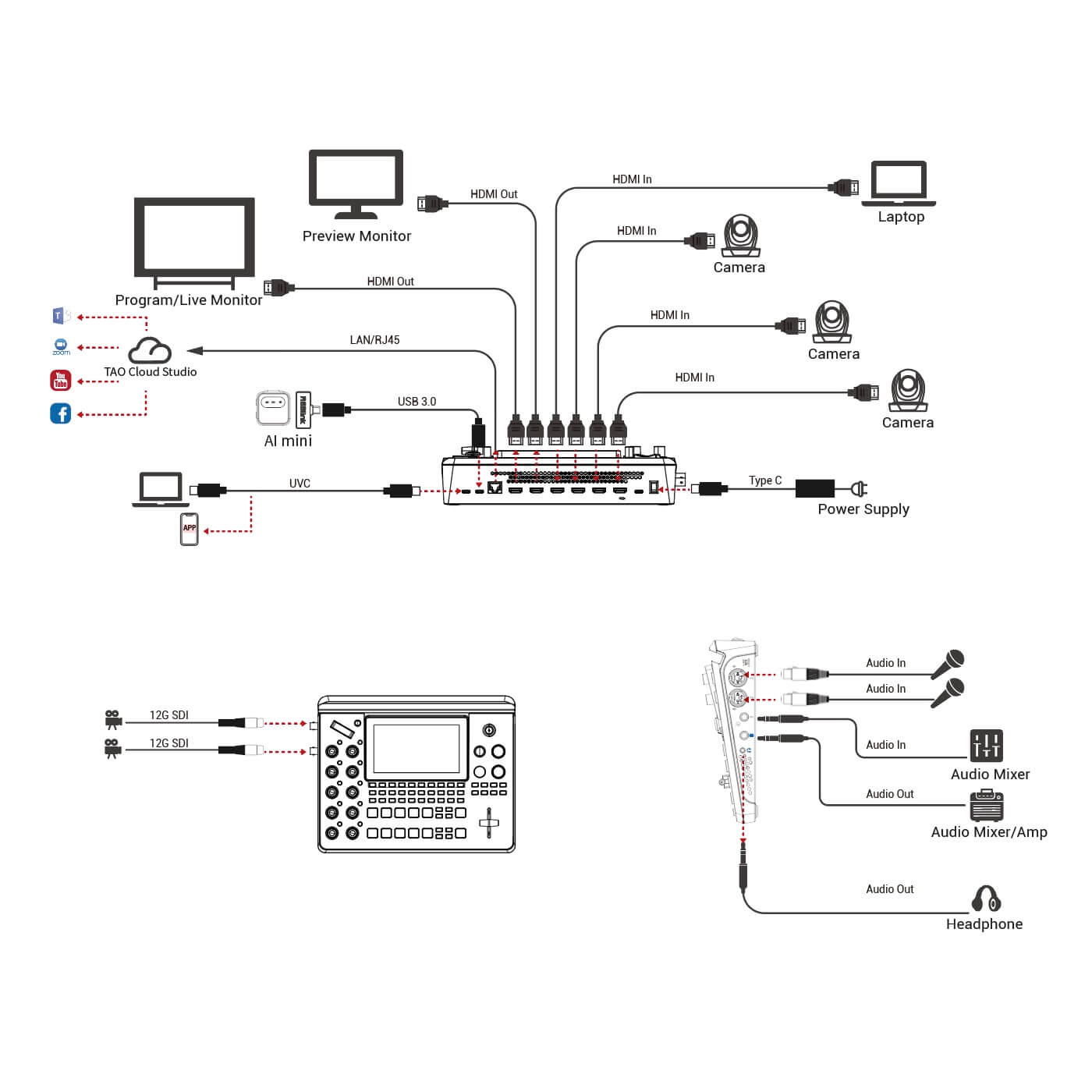

• 9 input connectors (4 x HDMI 2.0, 2 x 12G-SDI, 2K UVC, MP4, and NDI)
• 6-ch customizable video inputs
• Maximum 8 channels for audio mixing
• 1-ch HDMI 2.0 main output and 1-ch HDMI 1.3 for preview
• Cut mode and preview transition mode support
• USB 3.0 4K recording capability, bitrate up to 32Mbps
• UVC recording which is USB and UAC devices compatible (including AI mini)
• RTMP(s)/NDI streaming via Ethernet port, managed by TAO Cloud
• USB 3.0 UVC 4K capture and outputs via third-party platforms like OBS
• Independent control of PTZ, zoom, and focus of multiple PTZ cameras
• Chroma key support (green and blue) and Luma key support
• Third-party control and integration via free RGBlink Central Control Protocol
