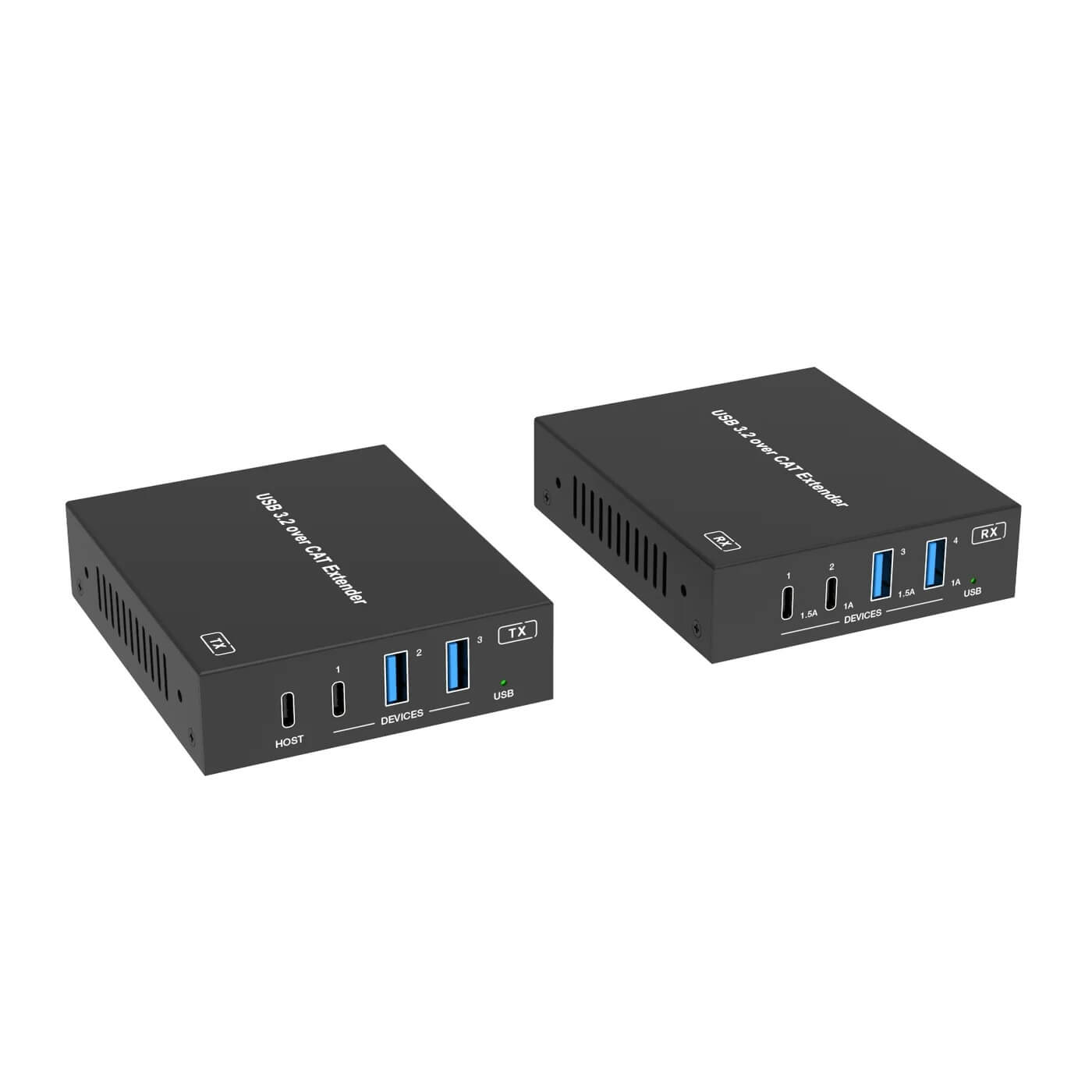

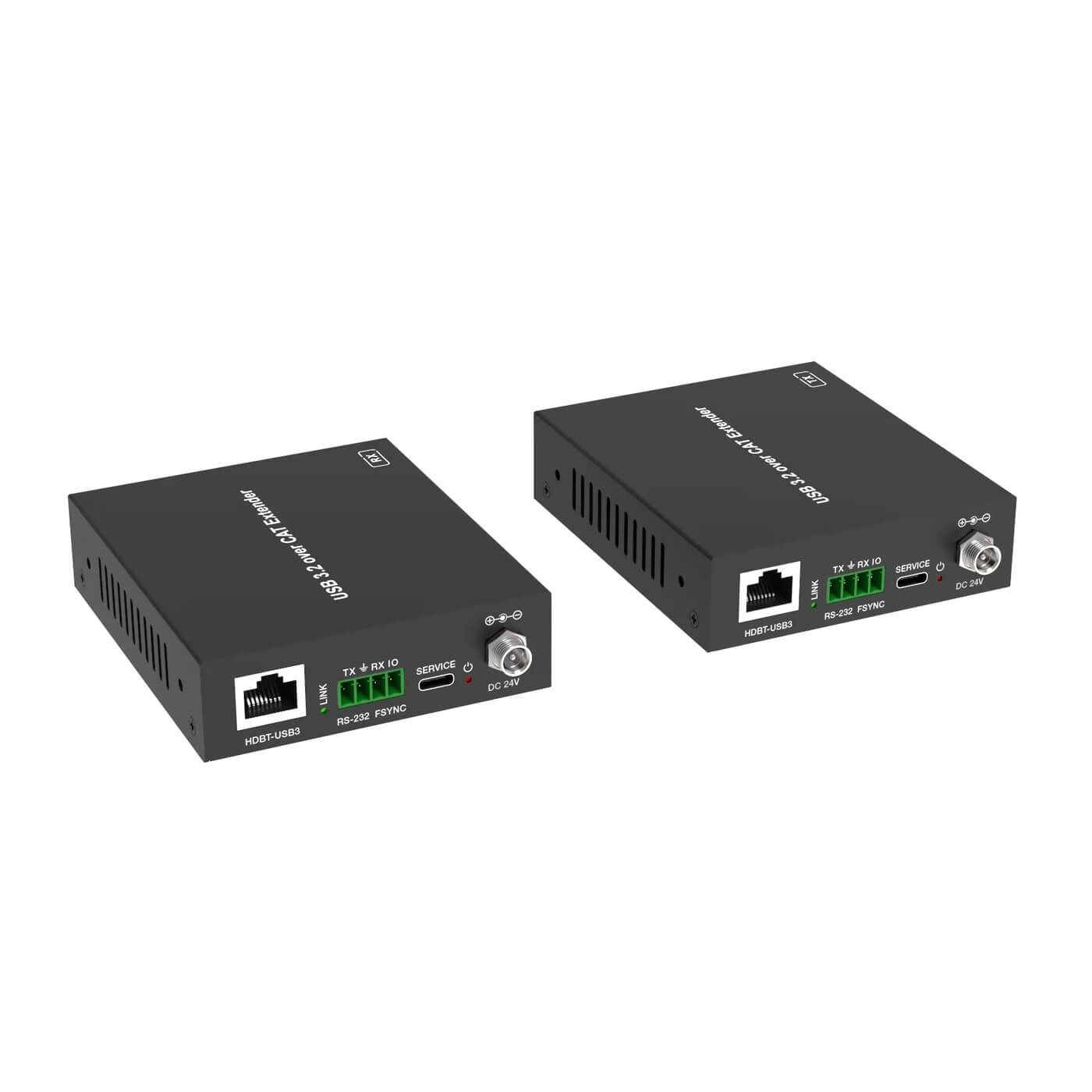

The DVDO Xtend-USBC-USB-100 is a USB extender set that can transmit USB 3.2 Gen 1 signals up to 100m/328ft via a single CAT6a cable. The transmitter includes one USB-C host port as well one USB-C and two USB-A device ports. The receiver includes two USB-C and two USB-A device ports. It supports bi-directional 24V PoC (Power over Cable), allowing the power supply to be connected to either the transmitter or the receiver.

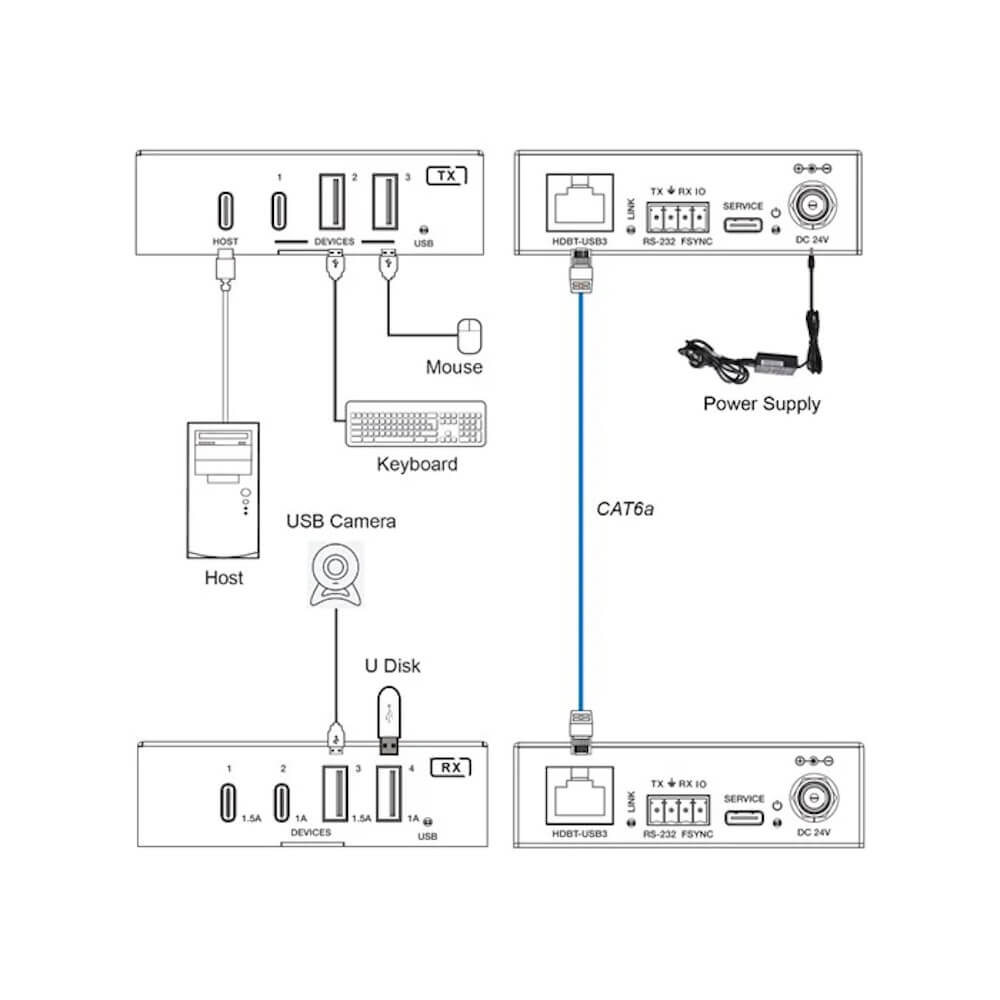

DVDO Xtend-USBC-USB-100 can be widely used for long distance USB signal transmission between USB sources and devices like webcams, PTZ cameras, keyboards, mouse devices, USB microphones, flash sticks, printers, scanners, touch panel displays and other USB devices.
Features
• Extension of USB 3.2 Gen 1 signals up to 100m/328ft via CAT6a cable
• USB 3.2 Gen 1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and 1.1
• Hardware acceleration for isochronous and bulk transfer

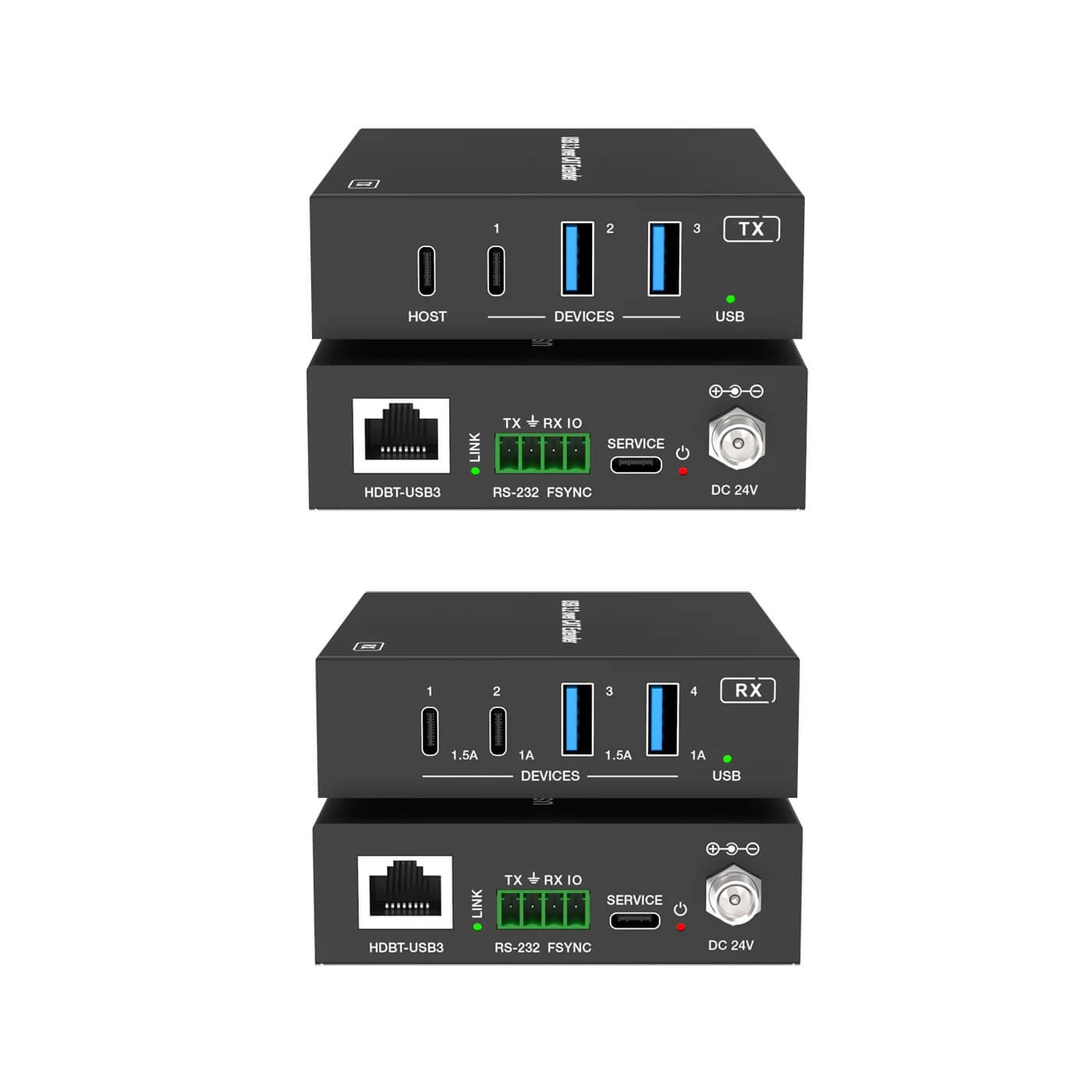

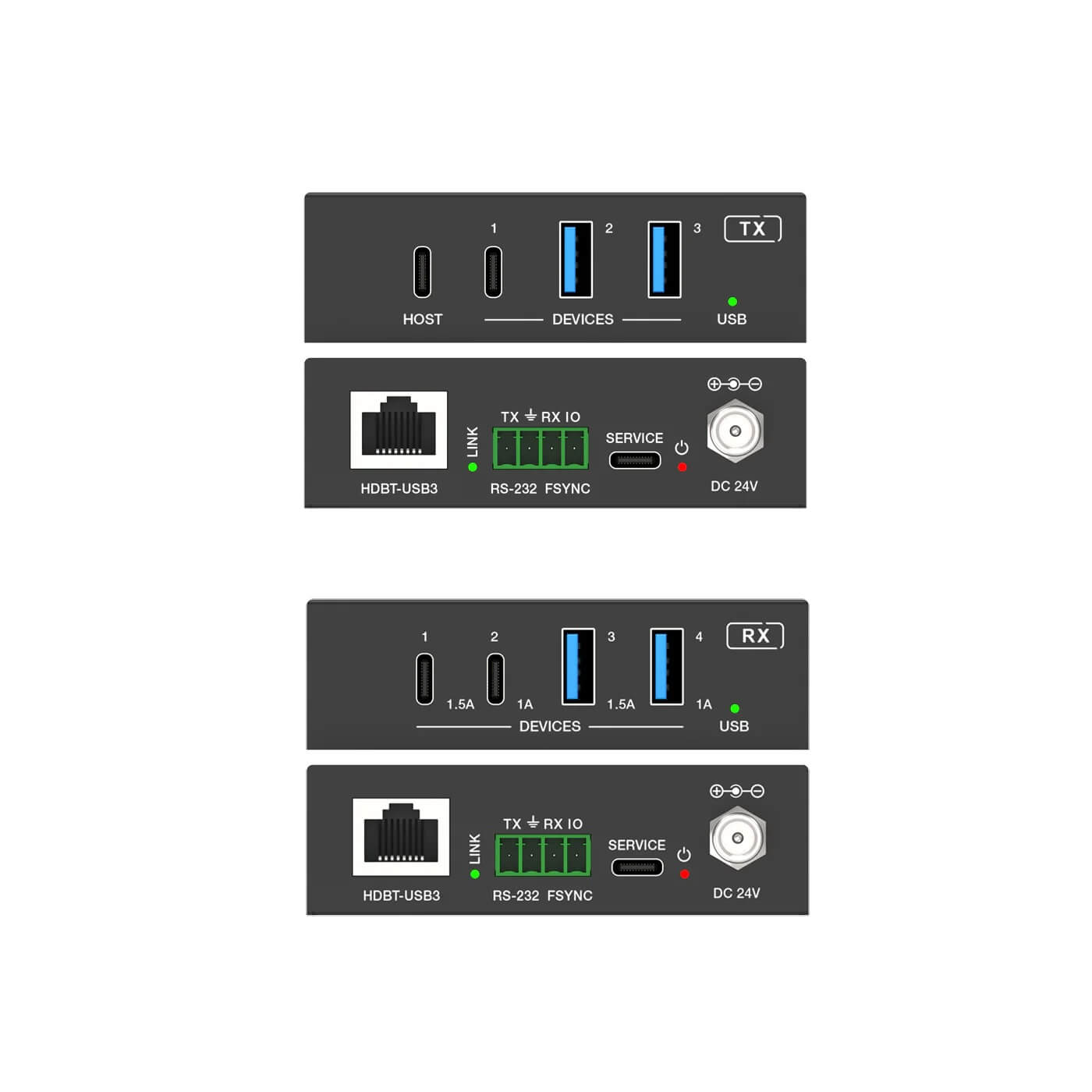

• Transmitter features 1x USB-C host port, 1x USB-C and 2x USB-A device ports
• Receiver features 2x USB-C and 2x USB-A device ports
• Bi-directional 24V PoC (Power over Cable)
• Plug-and-play with no drivers, downloads or software required
