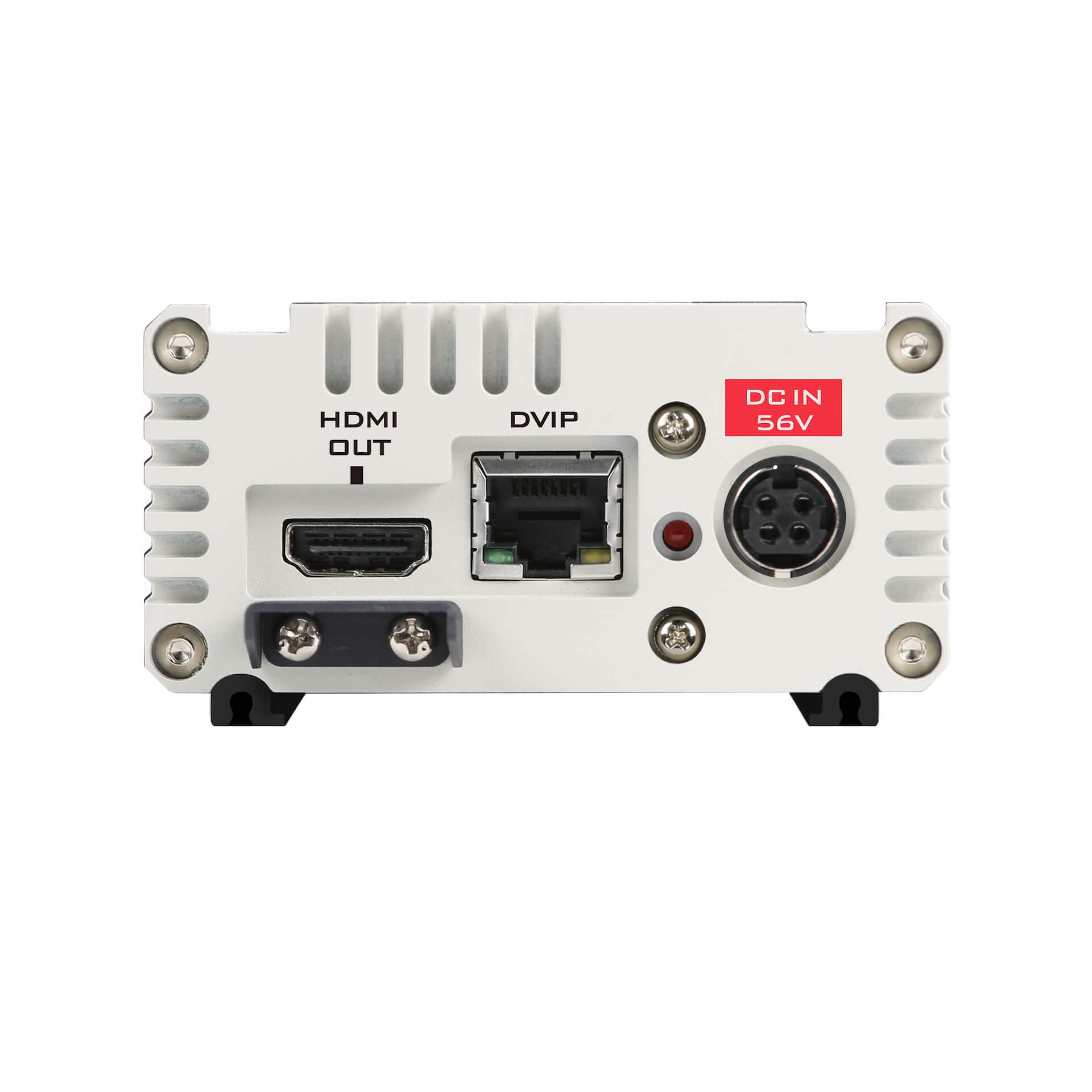

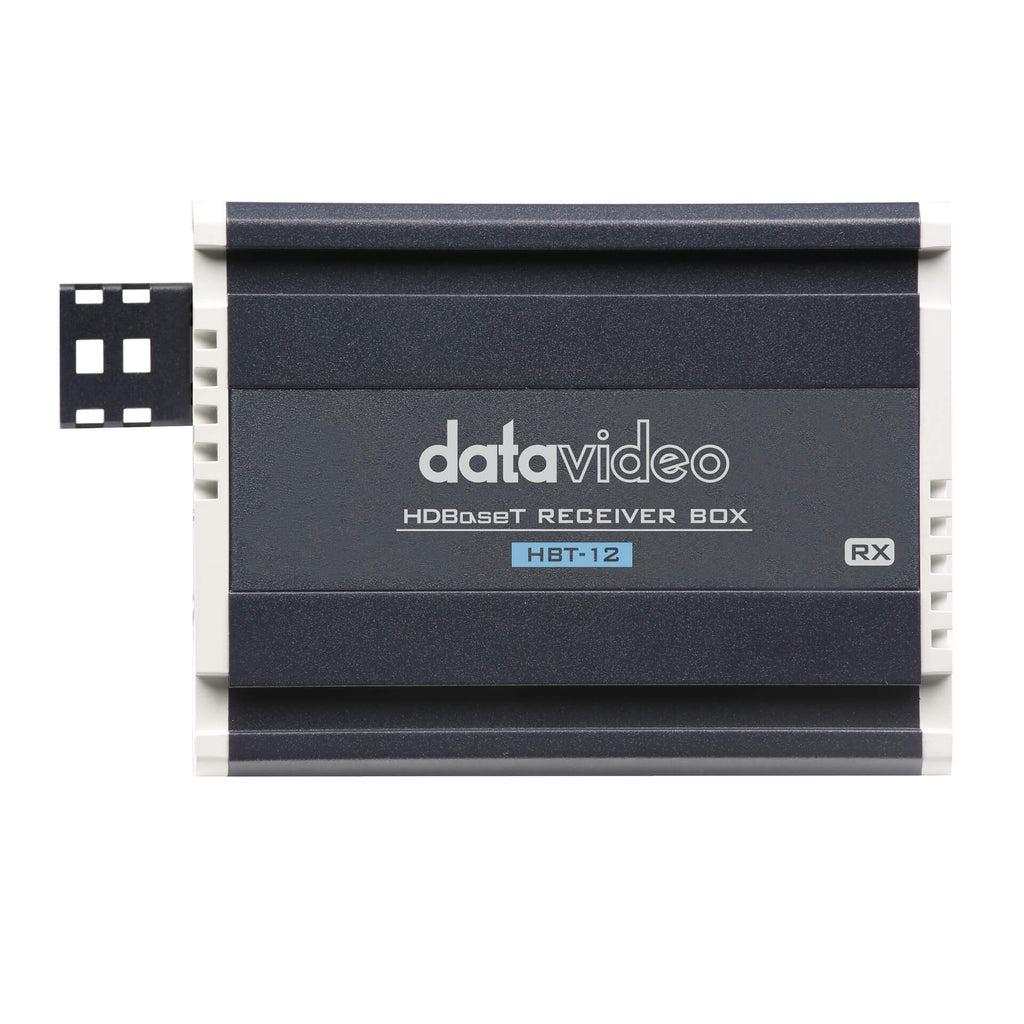

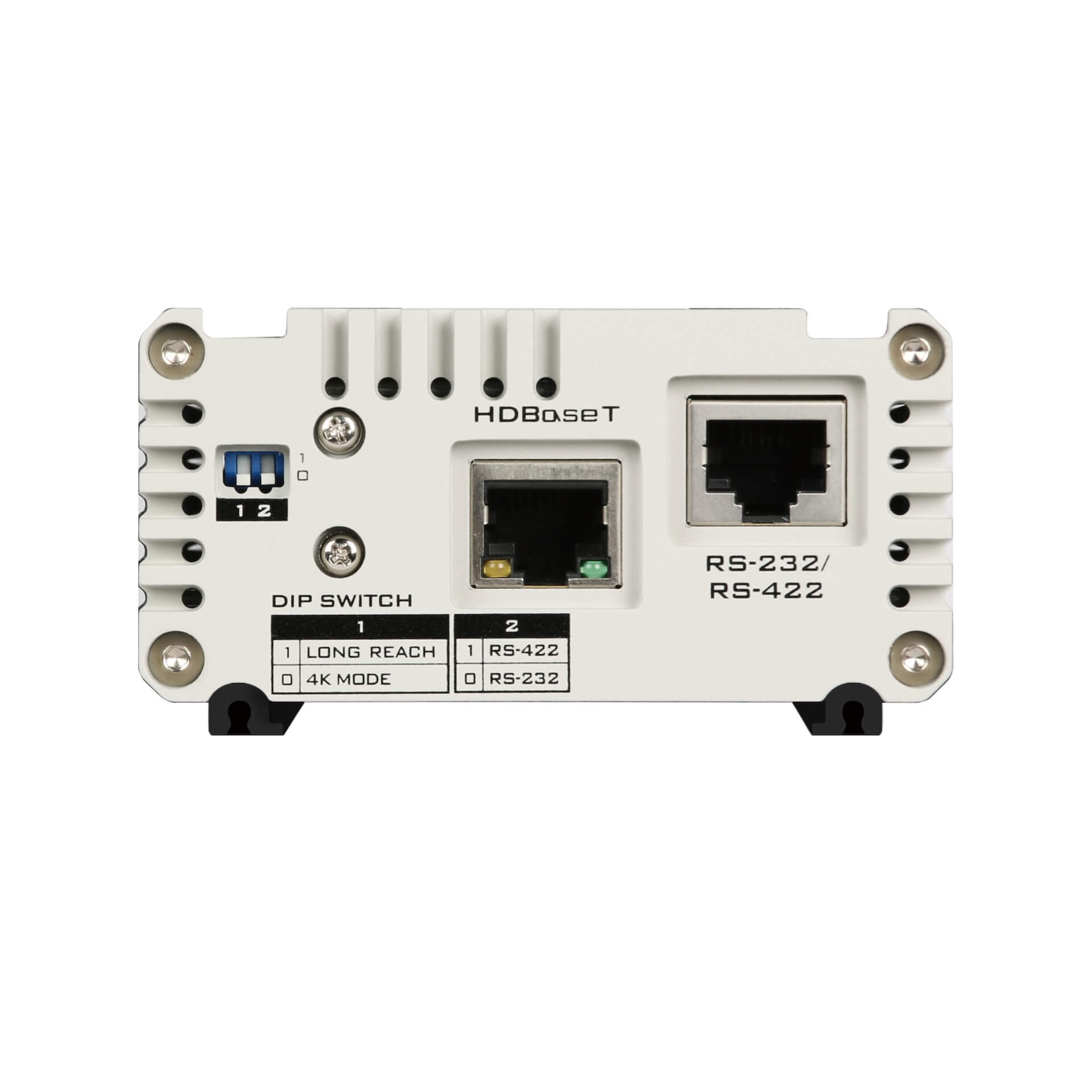

The DataVideo HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.
With the 56V power connected to one end of the HBT-12 HDBaseT receiver, the HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++). Please only use Cat7 Ethernet cables to connect PoE++ powered devices.
HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable. In other words, HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
Features
• Receives up to 4Kx2K video from the transmitter
• Extends 1080p/60 video up to 100m via Cat7 cable
• Extends 4K30 video up to 70m via Cat7 cable
• Transmits video, audio, DVIP, RS-422/232, and PoE+ over a single Cat7 cable
• 56V PoE+ power supply
• DVIP control protocol
• RS-422/232 control protocol
