The DVDO HDMI-MGR-1 is an HDMI EDID emulator that includes HDCP management and CEC support, designed to resolve compatibility issues between source devices and displays by modifying the EDID information sent to the HDMI input device. This makes it an essential troubleshooting tool for AV integrators. Fully compliant with HDMI 2.0 and HDCP 2.2, it supports resolutions up to 4K@60Hz 4:4:4 at 18Gbps. The unit can be powered either via HDMI or USB-C, eliminating the need for an external power supply. It offers eight predefined EDID presets plus a customizable user-defined preset that can be uploaded through the USB-C port. Additional features include HDCP management, automatic downscaling, and a CEC blocking mode that allows toggling CEC on or off.
Features
• HDMI 2.0, HDCP 2.2 compliant
• Supports resolutions up to 4K@60Hz 4:4:4 at 18Gbps
• Allows for HDCP 2.2 (source) to be converted to HDCP 1.4 (display)
• 8 EDID presets including 1 user defined preset

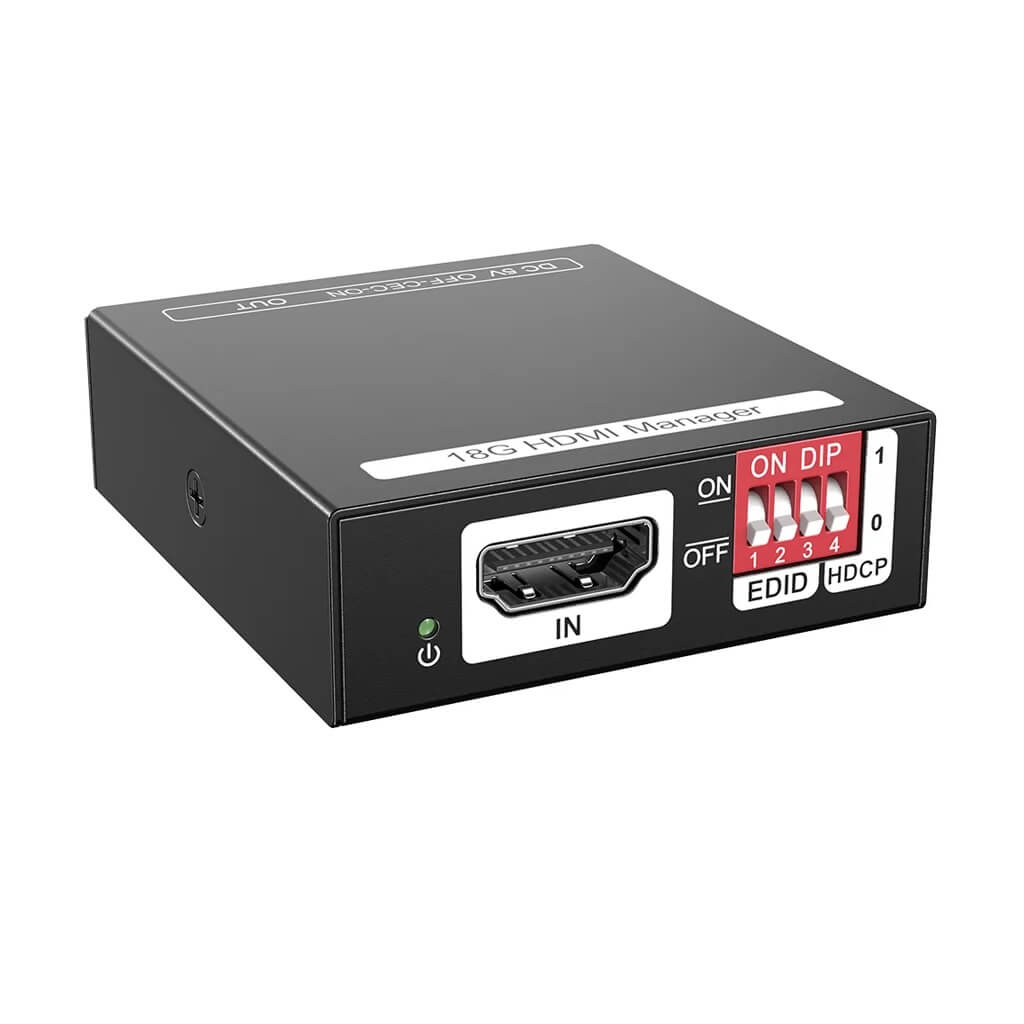

• 4-pin DIP switch to manage EDID and HDCP settings
• Unit can be powered via HDMI or USB-C
• CEC blocking option allows for CEC function to be turned ON/OFF with toggle switch

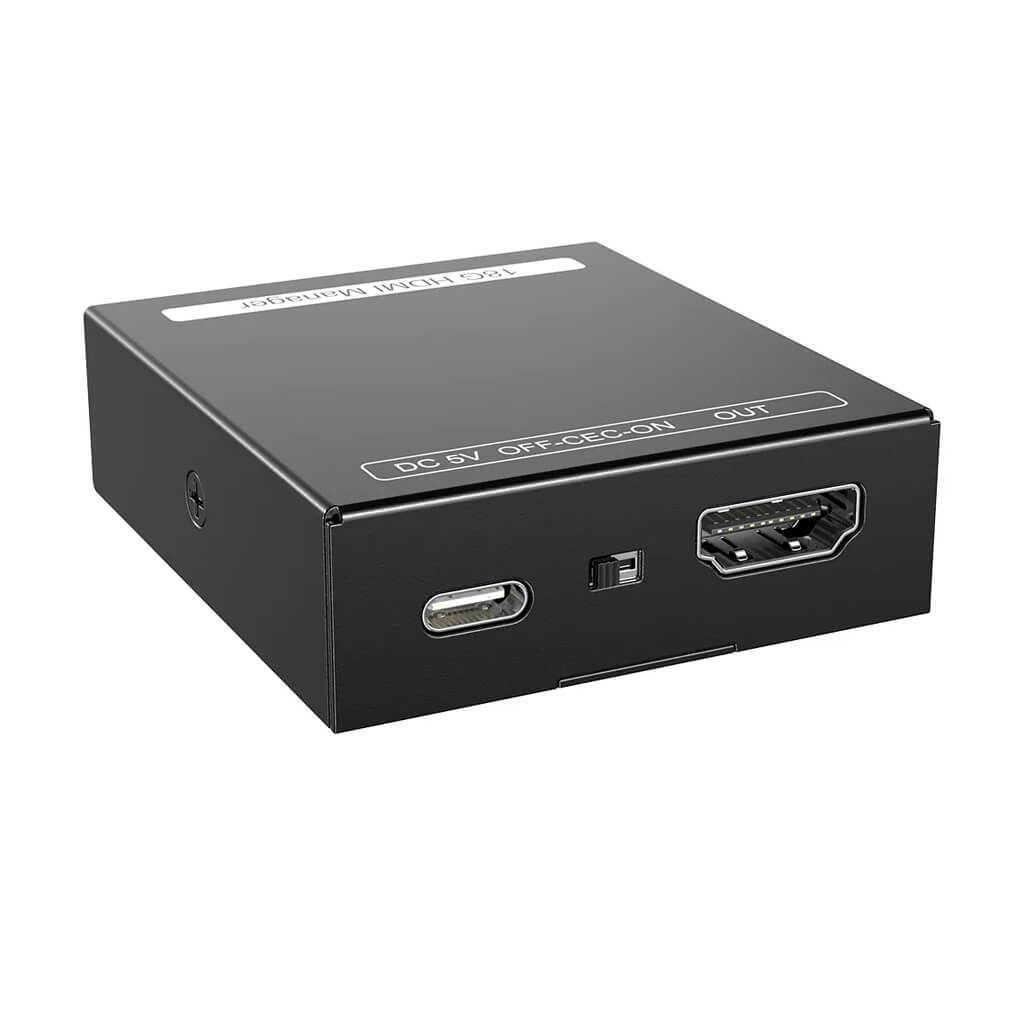

• USB-C port for power, custom EDID upload and firmware update
• Plug and play, compact and portable design
